EGE-11CA

HDMI Audio Inserter

HDMI Audio Inserter
Optical and R/L Audio Input
3D Signal Support

Categories: , ,
Brand:

Description

The HDMI Audio Inserter lets you insert an external audio signal into your HDMI or DVI signal path. The unit allows you to insert stereo and multi-channel surround sound signals to give users the capability to select audio formats while extending your HDMI signal.

Spesifications

  • Compatible with HDMI, HDCP 1.2 and DVI 1.0
  • HDMI audio sampling rates up to 192 kHz
  • Optical S/PDIF audio sampling rate up to 48 kHz
  • TMDS clock frequency up to 225 MHz
  • Supports high bit rate (HBR) audio
  • HDMI cable distance test with 1080p/8 bits resolution, the Input/Output distance can run up to 15/15 meters
  • HDMI cable distance test with 1080p/12 bits resolution, the Input/Output distance can run up to 10/10 meters
  • Supports 3D signal
  • Low power consumption

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x TOSLINK [1x Optical 2 Channel LPCM]
  • 2x RCA [1x Stereo (L/R)]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/1.2A

Dimensions

  • 91mm [W] x 86mm [D] x 34mm [H]

Net Weight

  • 107gr

Box Contents

• HDMI Audio Inserter

• 5 V/1 A Power Adaptor

• Operation Manual

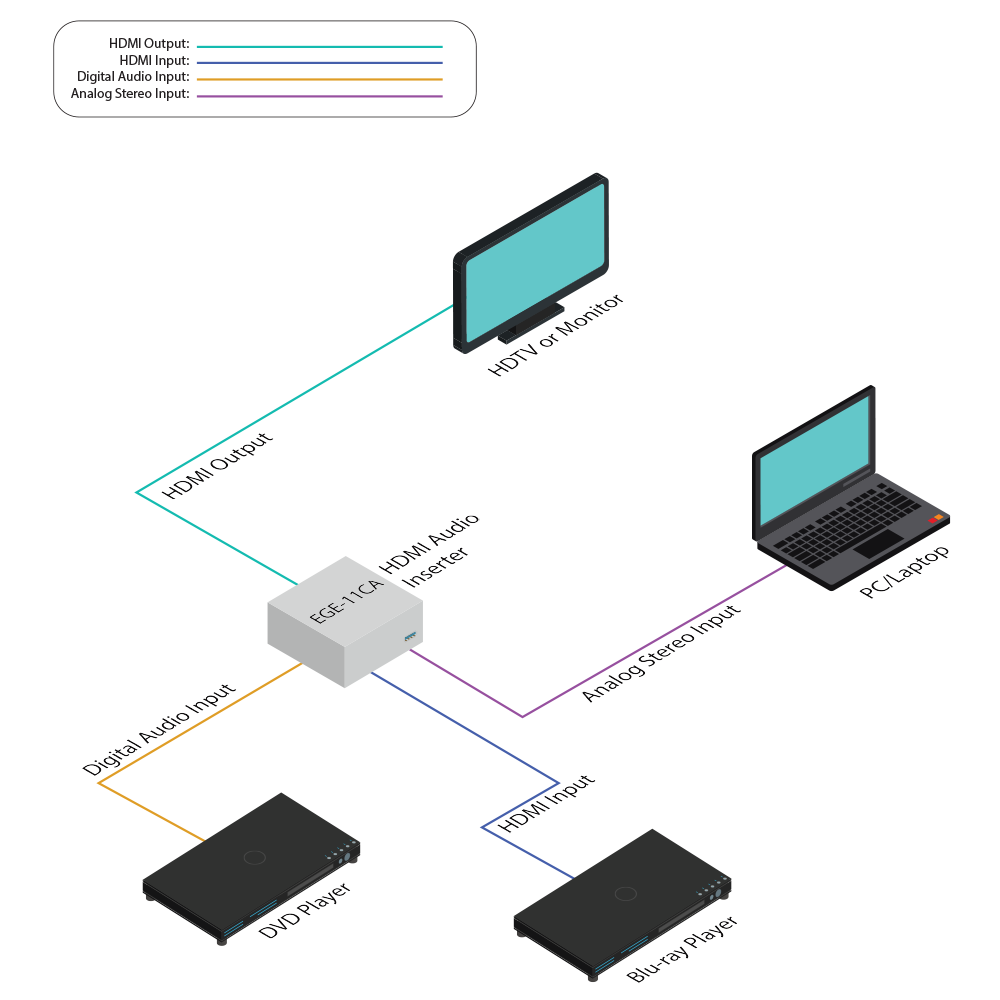

Diagrams

Dowloads

User Manual
Datasheet
