EGE-12VS4K
EGE-12VS4K - Image 2
EGE-12VS4K - Image 3

EGE-12VS4K

1 2 HDMI 4K2K,30p Video Scaler

HDMI Up/Down Scaler
Bypass HDMI Signal
Output Resolution 4K2K

Categories: , ,
Brand:

Description

The HDMI 4K2K Scaler is designed to upscale 1080p@24 signal into 4K2K or downscale 4K2K signal into 1080p@24. With friendly and simple design which allows user with direct viewing on input resolution and switching output signal format up to 2 simultaneous HDMI. The HDMI 4K2K Scaler is your best media between HD and Ultra HD signal.

Spesifications

  • Supports HDMI signal downscaling from 4K2K to 1080p or upscaling from 1080p to4K2K
  • Supports HD resolutions of 1080p@24/25/30 Hz
  • Supports 4K2K resolutions of 4096×2160p@24 Hz and 3840×2160p@24/25/30 Hz
  • Simultaneous HDMI output
  • Supports HDMI bypass signal

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 2x HDMI [2x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 102mm [W] x 108mm [D] x 25mm [H]

Net Weight

  • 220gr

Box Contents

• 1 x HDMI 4K2K Scaler

• 1 x 5V/2.6A DC Power Supply

• 1 x User Manual

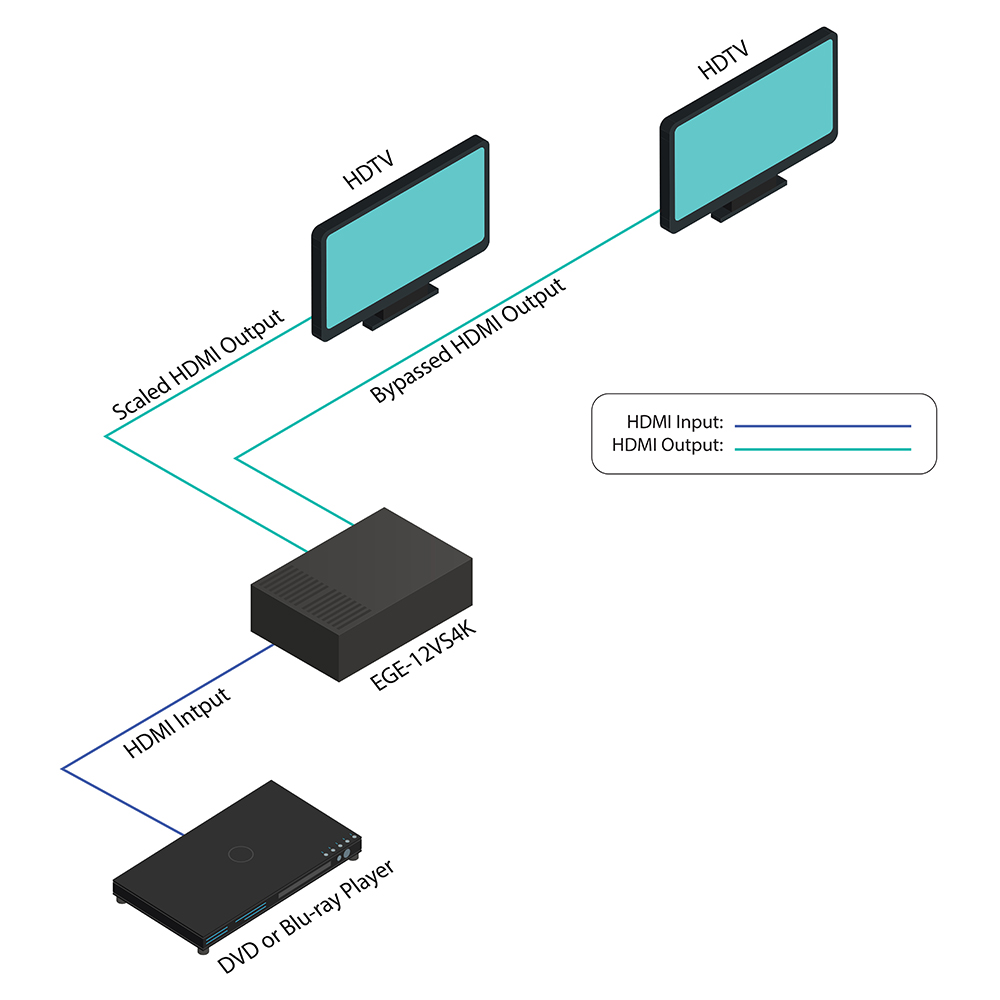

Diagrams

Dowloads

User Manual
Datasheet
