EGE-293N

PC/VGA to HDMI Scaler

VGA to HDMI Scaler
3.5mm and Optical Audio Outputs
VGA Resolution: WUXGA / HD Resolution: 1080p

Categories: , ,
Brand:

Description

This Scaler Box is designed to upscale analog video signal from PC/HD input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also converts input audio signal from Optical or L/ R to both digital and analog formats, then output to HDMI combining with the video, Optical and phone jack (L/R audio) simultaneously. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality.

Spesifications

  • Compatible with HDMI, HDCP and DVI compliant
  • Supports a wide range of PC resolutions from VGA to WUXGA (RB) and HD resolutions from 480i to 1080p
  • Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected
  • Supports adjustment of contrast, brightness, hue, saturation, sharpness, RGB (color tone) level and aspect ratio size of the video output
  • Supports OSD selectable stereo analog and digital audio inputs and simultaneous stereo analog and digital audio outputs to HDMI, Optical digital audio and analog mini-jack connections

Inputs

  • 1x 15-pin D-sub [1x PC/HD RGBHV / YPbPr Component]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]
  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 102mm [W] x 157mm [D] x 25mm [H]

Net Weight

  • 340gr

Box Contents

• 1 x PC to HD Scaler

• 1 x D-Sub to D-Sub cable

• 1 x 3.5mm to L/R cable

• 1 x 5 V/2.6 A DC Power Adaptor

• Operation Manual

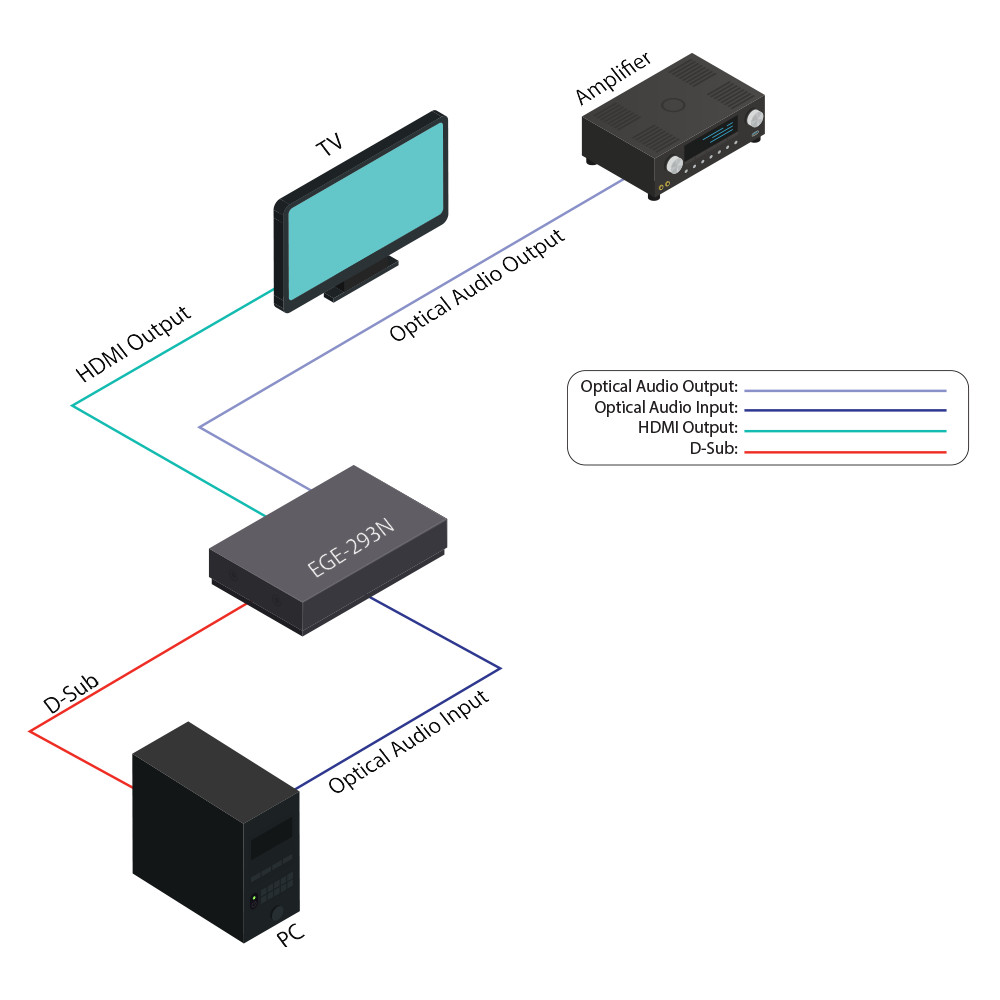

Diagrams
