EGE-2HDKVM-CAT

Dual-Head HDMI CAT.6 Extender with USB/IR/RS-232/Audio

Dual-Head HDMI Extender
with USB/IR/RS-232/Audio
1920×1080 (HDMI) / 1920X1200 (DVI)

Categories: , ,
Brand:

Description

The EGE-2HDKVM-CAT is a high performance KVM (Keyboard, Video and Mouse) extender that allows a customer to have full console control at 170 meters (1080p resolution) remote. The flexibility of CAT.5e/6 cables makes this easily routable and is an inexpensive method for extending a full KVM console. It can transmits two HDMI digital video streams, USB Keyboard/Mouse, IR, RS-232 and stereo audio via two CAT.5e/6 cables. In operation, EGE-2HDKVM-CAT is truly plug and play, capturing full EDID data from the display ensuring your hardware is always setup to deliver optimal display performance. It is optimized for applications at industrial control, security, KVM extension.

Spesifications

  • Extends Dual-Head Video/Keyboard/Mouse/Audio/IR/RS-232 signals of PC via two CAT.5e/6 cables.
  • Supports up to 2 HDMI (DVI-D via adapter) sources. * Dual-Head Video *
  • Supports USB keyboard / mouse.
  • Supports 3.5mm audio function (speaker).
  • Compatible with all major operating systems.
  • The bandwidth of video and keyboard/mouse is separated so keyboard/mouse can full speed without any delay.
  • Supports resolution up to 1920×1080 (HDMI) / 1920X1200 (DVI).
  • Supports transmission distance up to 140m (CAT.5e) / 170m (CAT.6).
  • EDID Copy function makes the optimal high resolution for your displays
  • Supports RS-232 (Full Duplex).
  • Supports IR (Simplex) (Frequency: 20~60 KHz).
  • Supports surge protection.
  • Simple LED indication for easy status monitoring.
  • HDMI 1.3 / HDCP compliant.
  • Supports Plug & Play; Software not required.

Box Contents

• Dual-Head HDMI CAT.6 Extender with USB/IR/RS-232/Audio x1

• Dual-Head HDMI CAT.6 Extender with USB/IR/RS-232/Audio x1

• USB (A-to-B) cable x1

• DC 5V 4A Power Adapter x2

• RS-232 cable x2

• IR emitter cable x1 ; IR receiver cable x1

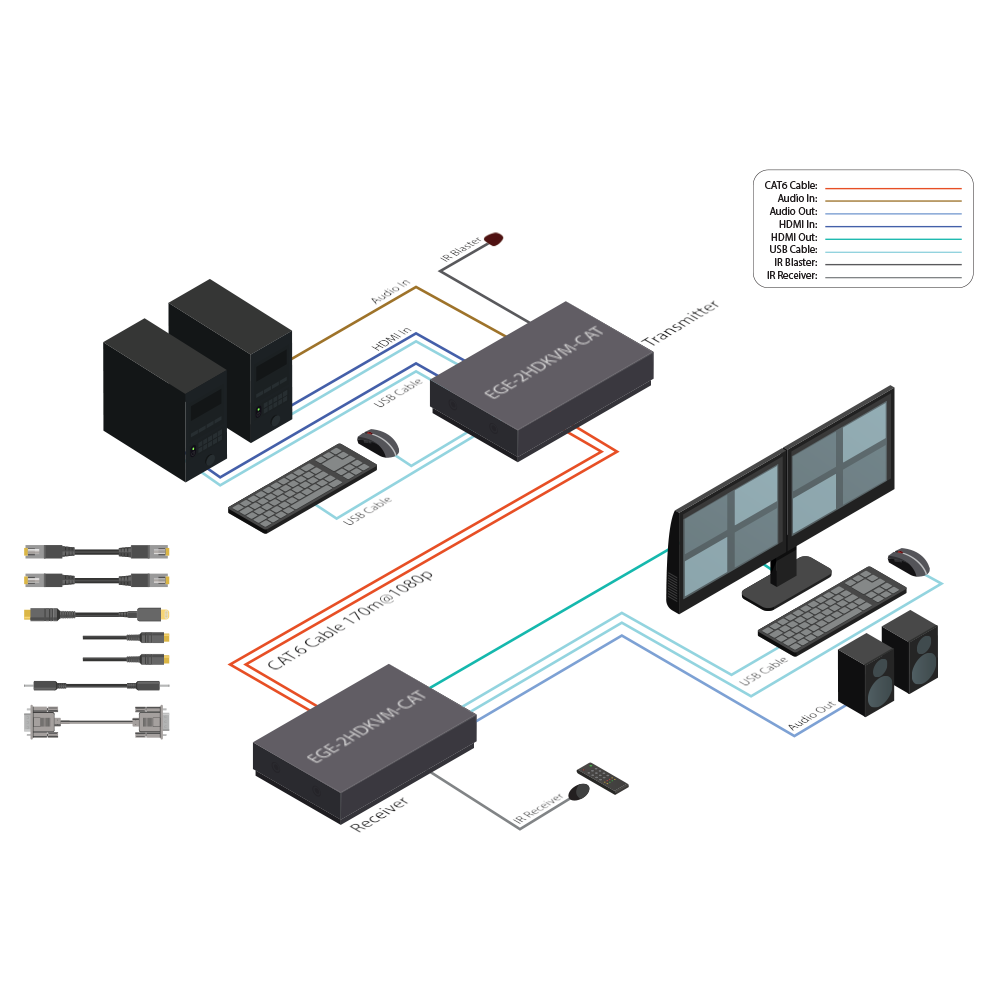

Diagrams

Dowloads

User Manual
Datasheet
