EGE-3SDI-144

1×4 3G-SDI Splitter

1×4 3G-SDI Splitter
SMPTE 425M-A Support

Categories: , , Brand:

Description

The EGE-3SDI-144 1×4 3G-SDI Splitter allows SD-SDI, HD-SDI and 3G-SDI signals to be split from a single SDI source to up four simultaneous SDI outputs while ensuring high bit rates of 2.970 Gbit/s to give you high bandwidth signal transmission without signal loss over long distances.

Spesifications

  • Splits simultaneously one SDI input source to four SDI displays
  • Supports SMPTE 425M-A, SMPTE 424M for 3G-SDI SMPTE 292M for HD-SDI and SMPTE 259M-C for SD-SDI
  • Supports operation at 2.970Gb/s, 2.970/1.001Gb/s, 1.485Gb/s, 1.485/1.001Gb/s and 270Mb/s
  • Supplies equalized and re-clocked transmission
  • Supports signal input and output distances up to 300m for SD-SDI signals, 200m for HD-SDI signals and 100m for 3G-SDI signals

Inputs

  • 1x BNC [1x 3G-SDI]

Outputs

  • 4x BNC [4x 3G-SDI]

PSU:

  • 5V/2.6A

Dimensions

  • 200mm [W] x 138mm [D] x 30mm [H]

Net Weight

  • 900gr

Box Contents

• EGE-3SDI-144 1×4 3G-SDI Splitter

• 5 V/2.6 A DC Power Adaptor

• Operation Manual

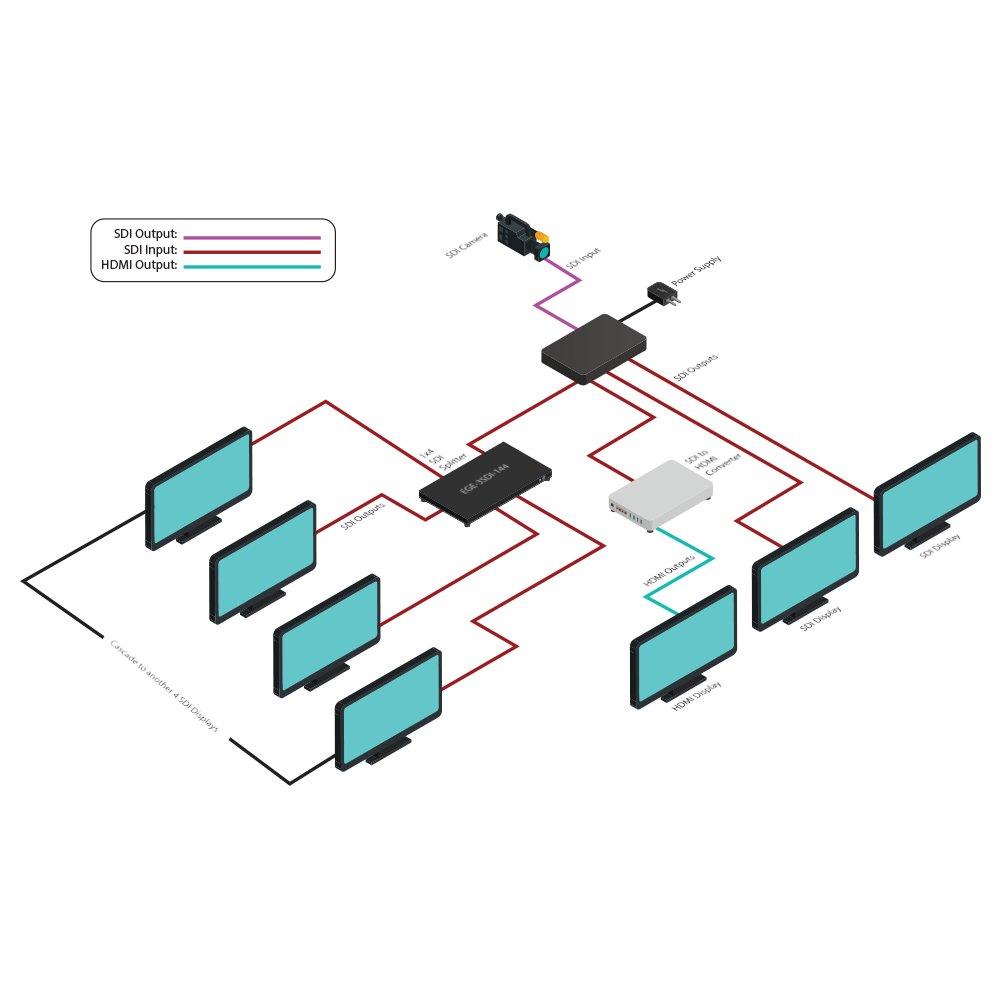

Diagrams
