Description

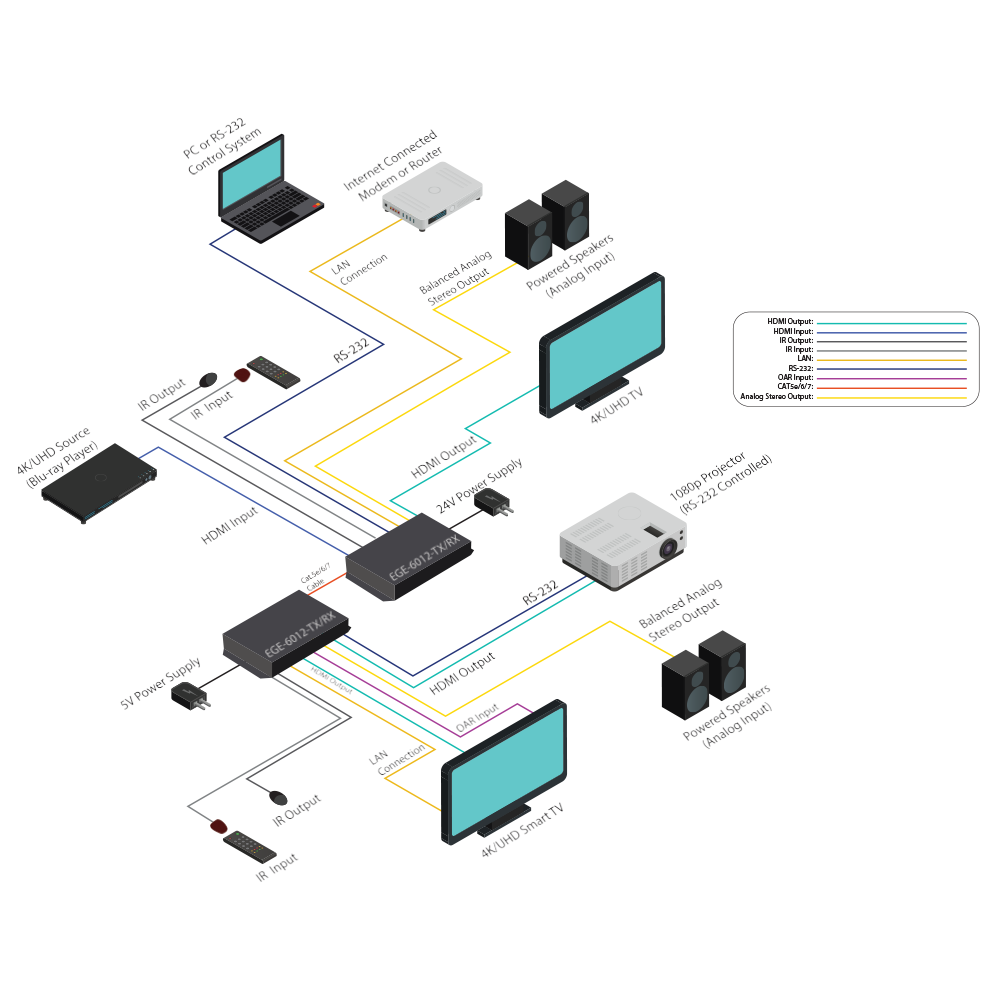

Transmitter 4K UHD+ HDMI over HDBaseT Scaling Transmitter and Receiver This HDMI to HDMI/HDBaseT Scaling Transmitter can send uncompressed audio/video along with control, Ethernet, and extra audio data over a single run of Cat.5e/6/7 cable up to 100m. Both the HDMI input and local HDMI output support video signals up to 4K@60Hz (4:4:4, 8-bit). For transmission over the HDBaseT output the signal can be converted to 4K@60Hz (4:2:0, 8-bit) or 1080p@60Hz, if necessary, in order to fit within HDBaseT bandwidth limitations. Simple 18Gbps HDMI test patterns are also available to be output. Control of remote devices is possible via bi-directional RS-232 or IR as well as via a LAN connection. A balanced analog audio output provides users with additional audio flexibility. The 48V PoH design can power the connected Receiver (PD), eliminating the need for an extra power supply while the Transmitter itself is powered through the local 24V power supply
Spesifications
- Supports the HDBaseT 1.0 specification
- HDBaseT 5PlayTM convergence: High-Definition (HD) Video and Audio, 100BaseT Ethernet, 48V PoH, and Control (Bi-directional IR/ RS-232 pass-through)
- Supports UHD resolutions up to 3840×2160@50/60Hz (YUV 4:4:4) & 4096×2160@50/60Hz (YUV 4:4:4)
- Supports pass-through of all standard digital audio: LPCM 2.0/5.1/7.1, Bitstream & HD Bitstream
- Supports RS-232 baud rates from 110~115200bps • 10/100 Ethernet network support
- Fully compliant with HDMI 1.4, and compatible with HDMI 2.0 (4K@60Hz, YUV 4:2:0)
- HDMI with 18Gbps (600MHz) 4K support and HDCP 2.2 compliant
- Supports Deep Color up to 1080p/12-bit • Supports DVI to HDMI conversion
- Supports signal bypass on HDMI output (on the Transmitter)
- Transmitter can upscale 1080p signals to 4K over HDBaseT output or downscale 4K signal to 1080p (same framerate is maintained)
- Receiver supports signal bypass on both outputs or output B can upscale 1080p signals to 4K and output A can downscale a 4K signal to 1080p (same framerate is maintained)
- Supports 4K UHD (4:4:4) to 4K UHD (4:2:0) conversion
- Supports OAR (Optical Audio Return) and DAC audio balance conversion
- Test pattern generation at select resolutions for on-site display testing
- Integrated EDID management
- OSD with instant I/O resolution display
Inputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x 3.5mm [1x Infrared Receiver]
- 3x 1-Pin Terminal Block [1x RS-232]
- 1x RJ-45 [1x LAN Serving]
Outputs
- 1x HDMI [1x Uncompressed AV and Data]
- 1x RJ-45 [1x HDMI & Propriety Data]
- 1x Terminal Block 5-pin [1x Stereo (Balanced)]
- 1x 3.5mm [1x Infrared Emitter]
PSU: 24V/2.7A
Dimensions: 231mm [W] x 117mm [D] x 25mm [H]
Net Weight: 648g
Box Contents
• 1×HDMI over HDBaseT Scaling Transmitter
• 1×IR Blaster Cable
• 1×IR Extender Cable
• 1×Terminal Block (3-pin)
• 1×Terminal Block (5-pin)
• 1×Power Cord
• 1×24V/2.7A DC Power Adaptor
• 1×Operation Manual
