EGE-6UHD-1410

1 10 HDMI 4K UHD Splitter with 6G Capability

1×10 HDMI Splitter
EDID Function
4K2K@60Hz (YUV 4:4:4)

Description

The 1 by 10 HDMI Splitter with HDCP 2.2 is an advanced solution for splitting a single HDMI input to 10 HDMI outputs. It provides high performance audio and video output up to 4K2K@60Hz (YUV444) resolution and is capable of provide high end of audio and video performance. This unit also support HDR (High Dynamic Range Imaging) function, which allows giving more luminance radiance contrasting and colourful pictures for better experience. It supports high resolution digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192kHz. There are input and outputs indications on panel, which will illuminate when detected, system reset function allows the unit to set the TV to it’s default HDMI input.

Spesifications

  • HDMI (with 6G audio/video support), coherent with HDCP 2.2 and DVI (note: does not support ‘Deep Color’/color space – YCbCr 422/444)
  • 1 HDMI input and 10 HDMI outputs
  • Supports System Reset function (CEC active source command)
  • Contemporaneous display of a single Ultra High-Definition source on up to 10 UHDTV displays
  • 3D passthrough with compatible 3D source and 3D TV
  • Supports UHDTV resolutions up to 4K2K: 3840×2160@24/25/30/50/60Hz & 4096×2160@24/25/30/60Hz
  • Supports passthrough of high definition audio: LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH, DTS 2/5.1CH, Dolby TrueHD, DTS-HD Master Audio & Dolby Atmos
  • Coherent with HDCP 2.2 and HDCP1.4
  • HDMI input supports ‘Standard’ mode and ‘TV’ mode EDID settings

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 10x HDMI [10x Uncompressed AV and Data]

PSU:

  • 5V/6A

Dimensions

  • 436mm [W] x 160mm [D] x 44mm [H]

Net Weight

  • 2000gr

Box Contents

• 1×1 by 10 HDMI splitter

• 1×5 V/4 A DC Power Adaptor

• 1×Operation Manual

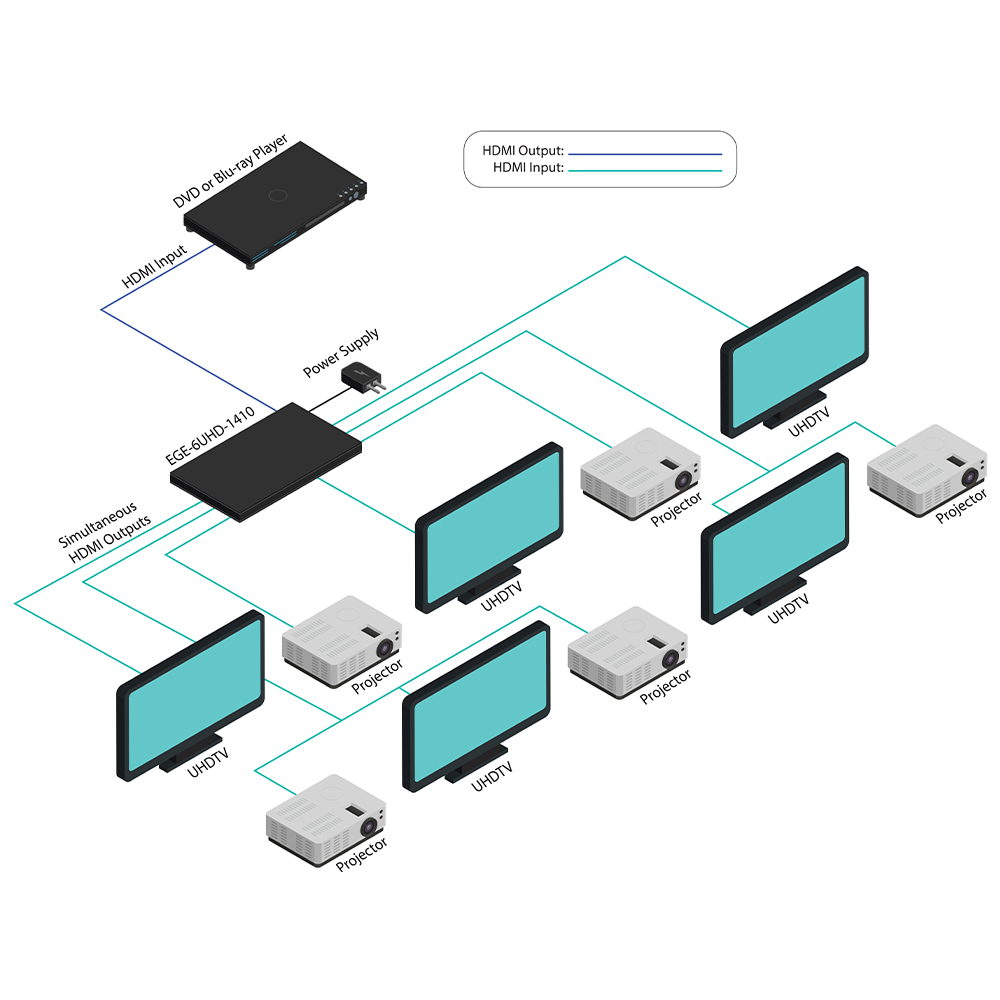

Diagrams
