EGE-6UHD-2-6UHD7C

UHD 4K 6G with HDCP2.2 LPCM 7.1 Audio Extractor

HDMI 4K UHD+Audio Extractor
4096×2160@60Hz (YUV444)
4096×2160@30Hz

Categories: , ,
Brand:

Description

The HDMI 4K 6G LPCM 7.1 Channel Audio Extractor could extract audio signals from your HDMI source. The unit allows you to extract original HDMI audio signal and convert it to digital optical or analog multi-channel audio. Further, both input and output HDMI support UHD resolution up to 4K2K@60Hz (YUV444), and capable of provide high quality of audio and video performance. It supports HDMI high resolution digital audio formats by pass, also LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio, audio sampling rate up to 192 kHz, allowing a full enjoyment over synchronize video and audio.

Spesifications

  • HDMI 2.0 (with 6G audio/video support), HDCP 2.2 and DVI compliant
  • Supports extracting the HDMI audio and outputing to a multi-channel digital or analog audio signal
  • Supports analog multi-channel and Optical S/PDIF audio outputs
  • Supports HDMI audio sampling rates up to 192kHz
  • Supports Optical (S/PDIF) audio sampling rate up to 192kHz
  • HDMI signal supports High Bit Rate (HBR) audio
  • Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV444)
  • Supports CEC bypass

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x TOSLINK [1x 2 Channel LPCM / DTS / Dolby Digital]
  • 8x RCA [1x Analogue Audio 7.1 ]

PSU:

  • 5V/2.6A

Dimensions

  • 213mm [W] x 116mm [D] x 30mm [H]

Net Weight

  • 658g

Box Contents

• 1×UHD 4K 6G with HDCP2.2 LPCM 7.1 Audio Extractor

• 1×5 V/2.6 A Power Adaptor

• 1×Operation Manual

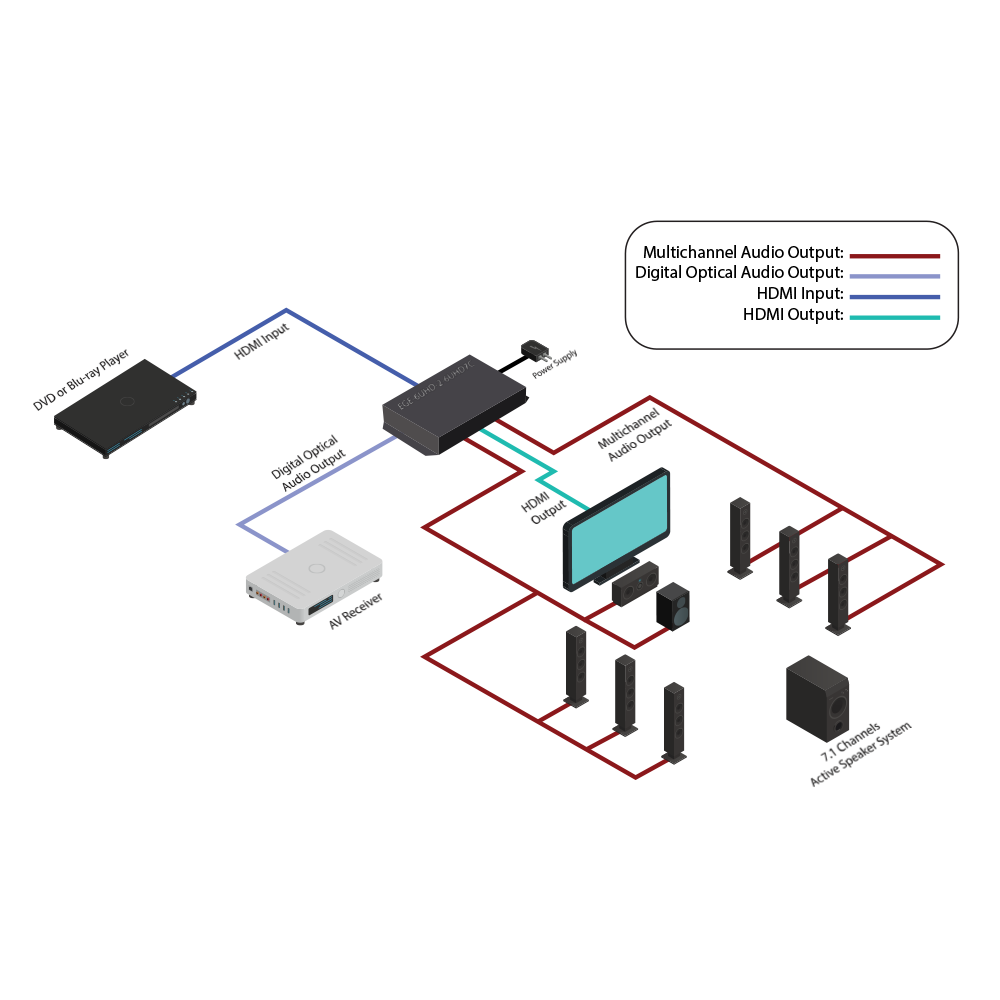

Diagrams
