EGE-6UHD-441

4 1 HDMI 4K UHD Switcher with 6G Capability

4×1 HDMI Switcher
IR/ RS-232
4K2K@60Hz

Categories: , ,
Brand:

Description

This 4×1 HDMI switcher is the most advanced HDMI solution for true Ultra High-Definition signal routing. This unit allows for the switching of any of four 18Gbps HDMI input signals to a single 18Gbps HDMI display device. Resolutions up to 4096×2160@60Hz (4:4:4), 16 bit Deep Color, HDR (High Dynamic Range), HD audio as well as other features defined by the HDMI 2.0 specification are supported. Multiple control interfaces are available including RS-232, Ethernet (WebGUI & Telnet), IR remote and front-panel buttons making operation easy and intuitive

Spesifications

  • HDMI 2.0 with 18Gbps 4K UHD support, coherent with single-link DVI 1.0
  • Coherent with HDCP 2.2 and 1.4
  • 4 HDMI inputs and 1 HDMI output
  • Supports HDTV resolutions up to 4K UHD (3840×2160@50/60Hz & 4096×2160@50/60Hz)
  • Supports data rates up to 18Gbps and Deep Color (16-bit) up to 1080p
  • Supports pass-through of LPCM 7.1, Bitstream and HD Bitstream audio formats
  • Remotely controllable via Ethernet (WebGUI & Telnet), RS-232 and IR remote

Inputs

  • 4x HDMI [4x Uncompressed AV and Data]
  • 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 240mm [W] x 112mm [D] x 48mm [H]

Net Weight

  • 850gr

Box Contents

•1×4 by 1 HDMI Switcher

• 1×Remote Control (CR-72)

• 1×IR Extender Cable

• 1×5V/2.6A DC Power Adaptor

• 1×Operation Manual

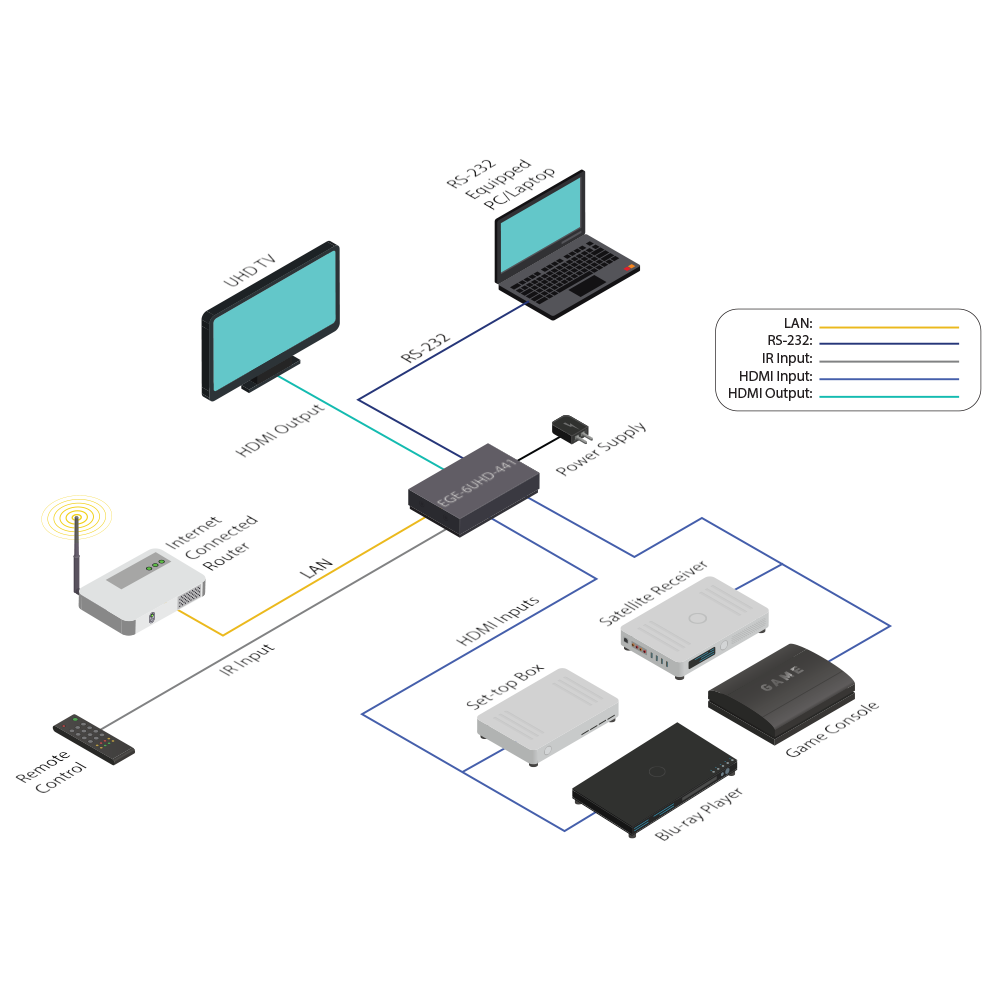

Diagrams
