EGE-6UHD-444AL

4x4 HDMI 2.0 18Gbps Matrix Switcher

18Gbps 4×4 HDMI Matrix Switcher
w/Audio
HDR, HDR10+, Dolby Vision

Categories: , ,
Brand:

Description

This high performance HDMI Matrix Switcher can switch any of these four HDMI 2.0 sources to four HDMI 2.0 displays. Each input and output supports up to 4K60 444 resolution and HDCP 2.2. The outputs can be individually scaled for 1080p. De-embedded audio as analog L/R and coaxial is available for both outputs. The ARC function can return display device audio to coaxial port output only. Advanced EDID management is supported. With its 18Gbps bandwidth and the additional features with latest HDMI standards. This switcher can be controlled from the front panel, RS-232, IR remote, or TCP/ IP.

Spesifications

• HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

• Four 18G HDMI 2.0 video inputs support up to 4K60 444 resolution

• Four 18G HDMI 2.0 video outputs support up to 4K60 444 resolution

• Four outputs can be individually scaled for 4K→1080p

• De-embedded audio to analog L/R and Coaxial ports output

• ARC audio return to the coaxial ports output only

• Built-in Web GUI for TCP/IP control

• Advanced EDID management supported

• Four methods of control: Front panel, RS-232, IR remote and TCP/IP

• Compact design for easy and flexible installation

Box Contents

• 4×4 HDMI 2.0 18Gbps Matrix Switcher

• 12V/2.5A Locking Power Adapter

• 1 x IR Remote

• 2 x Mounting Ears

• 1 x 38KHz IR Receiver Cable (1.5 meters)

• 1 x 3-pin Phoenix Connector

• 1x User Manual

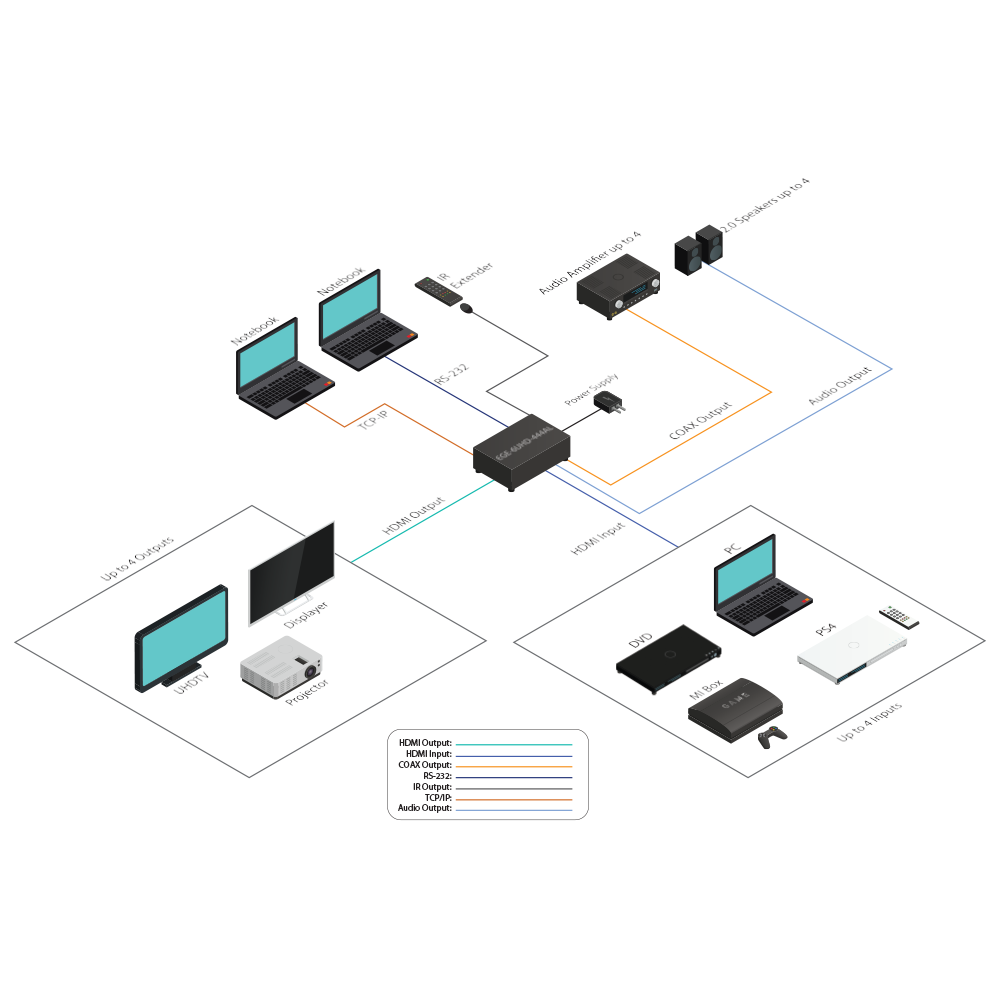

Diagrams
