EGE-6UHD-AUDC

UHD Audio Center

HDMI 4K UHD+Audio Extractor
4096×2160@50/60Hz (YUV444)
4096×2160@30Hz

Categories: , ,
Brand:

Description

With support for the transmission of 6G video (resolutions up to 4K2K@60Hz Ultra HD, and HDCP 2.2) through High Speed HDMI cables, this HDMI Audio Converter with Dolby® Digital/DTS® 2.0+Digital Out Decoder allows an HDMI audio signal to be de-embedded and simultaneously split to both digital and analog audio outputs providing high quality audio and video performance. This unit allows you to make the most out of your audio signal when relaying it to external speakers or to further extend the audio pathway to another location.

Spesifications

  • HDMI 2.0 (with 6G audio/video support), HDCP 2.2 and DVI compliant
  • Supports extracting the HDMI audio and outputing to a 2-channel digital or analog audio signal
  • Supports analog 2-channel and Optical S/PDIF audio outputs
  • Supports HDMI audio sampling rates up to 192kHz
  • Supports Optical (S/PDIF) audio sampling rate up to 192kHz
  • HDMI signal supports High Bit Rate (HBR) audio
  • Supports HDTV resolutions up to 4K2K: 3840×2160@24/25/30Hz, 3840×2160@50/60Hz (YUV444) & 4096×2160@24/25/30Hz, 4096×2160@50/60Hz (YUV444)
  • Supports CEC bypass

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x TOSLINK [1x 2 Channel LPCM / DTS / Dolby Digital]
  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 128mm [W] x 116mm [D] x 30mm [H]

Net Weight

  • 358g

Box Contents

• 1 x HDMI 2.0 with HDCP 2.2 Audio Converter with Dolby Digital and DTS 2.0+ Digital Out Decoder

• 1×5 V/2.6 A Power Adaptor

• 1×Operation Manual

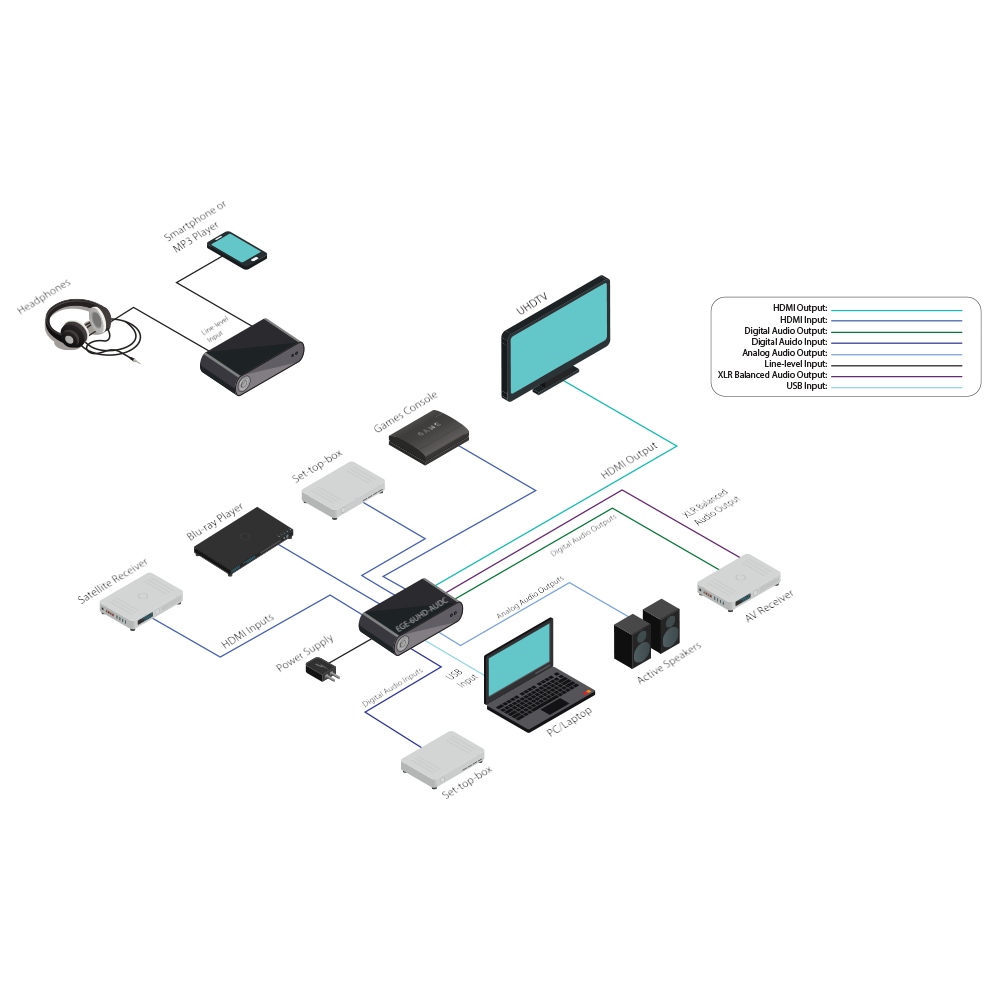

Diagrams
