EGE-6UHD-HDB-KVM-WRX

EGE-6UHD-HDB-KVM-WRX

18Gbps 70M HDBaseT Receiever

18Gbps 70M HDBaseT Receiver
USB KVM function
HDCP 2.2

Categories: , ,
Brand:

Description

This receiver is a great solution for extending uncompressed HD audio and video as well as Ethernet and control via a single run of Cat.5e/6/7 cable over distances of up to 100 meters. Multiple data and control interfaces are provided, including Ethernet, IR and RS-232 connections. This Receiver complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards. This Receiver (PSE) can provide 48V PoH (Power over HDBaseT) to compatible Transmitters allowing for greater exibility within different installation scenarios.

Spesifications

This 18Gbps 70M HDBaseT Receiver is designed to be used in conjunction with the HDBaseT Wall-plate. It can extend transmission distance up to 230ft / 70m for 1080p60Hz signal or 131ft / 40m for 4K2K@60Hz (4:4:4) signal. The video resolution is up to 4K2K@60Hz YUV 4:4:4. It supports two-way IR and RS-232 signal control and 24V POC function.

HDMI2.0b, HDCP 2.2 / 1.x and DVI 1.0 compliant
Support 18Gbps video bandwidth
Support video resolution up to 4K2K@60Hz YUV 4:4:4
The transmission distance can be extended up to 70m / 230ft at the resoution of 1080P@60Hz, or 40m / 131ft at 4K2K@60Hz 4:4:4 via a single CAT6/6a cable
Support USB signal, bi-directional IR and RS-232 control signal pass- through
Support USB KVM function
Support POC (Power over Cable) function
Compact design for easy and flexible installation

Box Contents

•1×HDMI/VGA over HDBaseT Transmitter (with LAN support)

• 1×HDMI over HDBaseT Receiver (with LAN support)

• 1×48V/0.83A DC Power Adaptor

• 1×Power Cord

• 1×Operation Manual

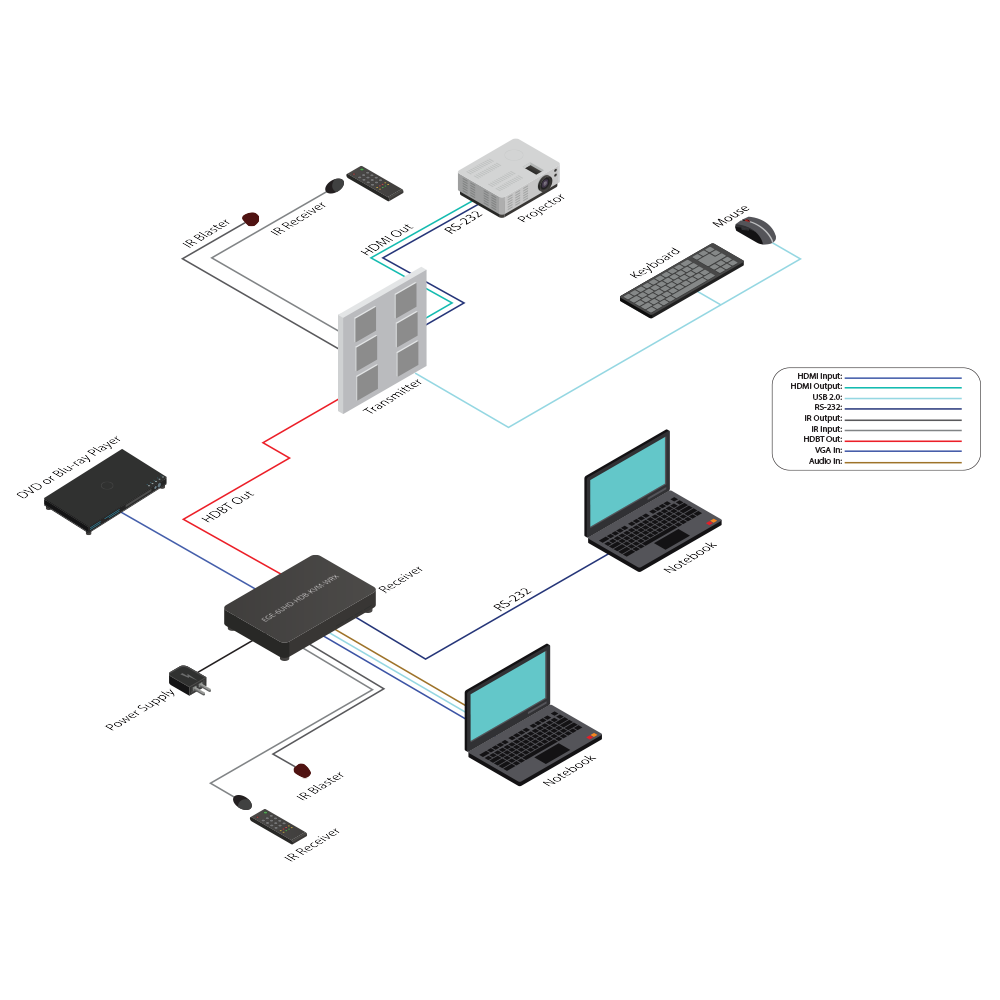

Diagrams

Dowloads

User Manual
Datasheet
