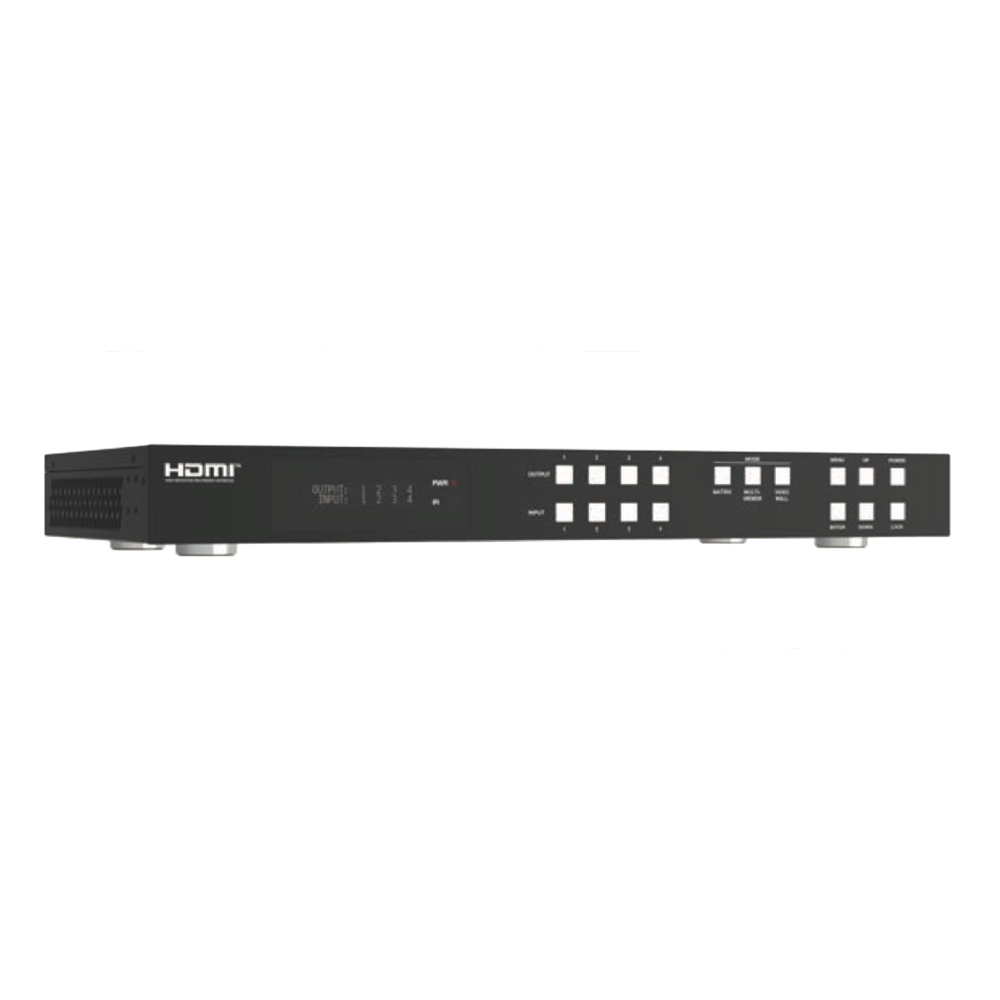

EGE-6UHD2-444WASL

EGE-6UHD2-444WASL

18Gbps 4x4 Seamless Matrix

Categories: , , ,
Brand:

Description

The 18Gbps 4×4 Seamless Matrix is a perfect solution for video transmission from 4 HDMI sources to 4 HDTV displays. It has video wall and multi-viewer functions with multiple display modes. 4×4 IR matrix, audio embedded and de-embedded are also supported. Video resolution is up to 4K@60Hz 4:4:4. Each of the sources can be individually scaled. And seamless switching ensures a smooth picture transition without frame loss.This matrix can be controlled via front panel buttons, IR remote, RS-232 and Web GUI.

Specifications

  • HDCP 2.2 compliant
  • Support video resolution up to 4K@60Hz 4:4:4and 18Gbps video bandwidth, as
    specified in HDMI 2.0
  • Support 12 display categories in multi-viewer mode, and 9 splicing modes in
    video wall mode
  • HDMI audio format: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio
  • Support CEC control, and multiple video resolution output
  • Advanced EDID management
  • Control via front panel buttons, IR remote, RS-232, and Web GUI

Box Contents

  • 1 × 18Gbps 4×4 Seamless Matrix
  • 1 × 12V/2.5A Locking Power Adapter
  • 5 × 12V IR Wideband Receiver Cable (1.5m)
  • 4 × IR Blaster Cable (1.5m)
  • 1 × RS-232 Serial Cable (1.5m, male to female head)
  • 4 × 5pin-3.81mm Phoenix Connector
  • 4 × 3pin-3.81mm Phoenix Connector
  • 8 × Machine Screw
  • 2 × Mounting Ear
  • 1 × User Manual

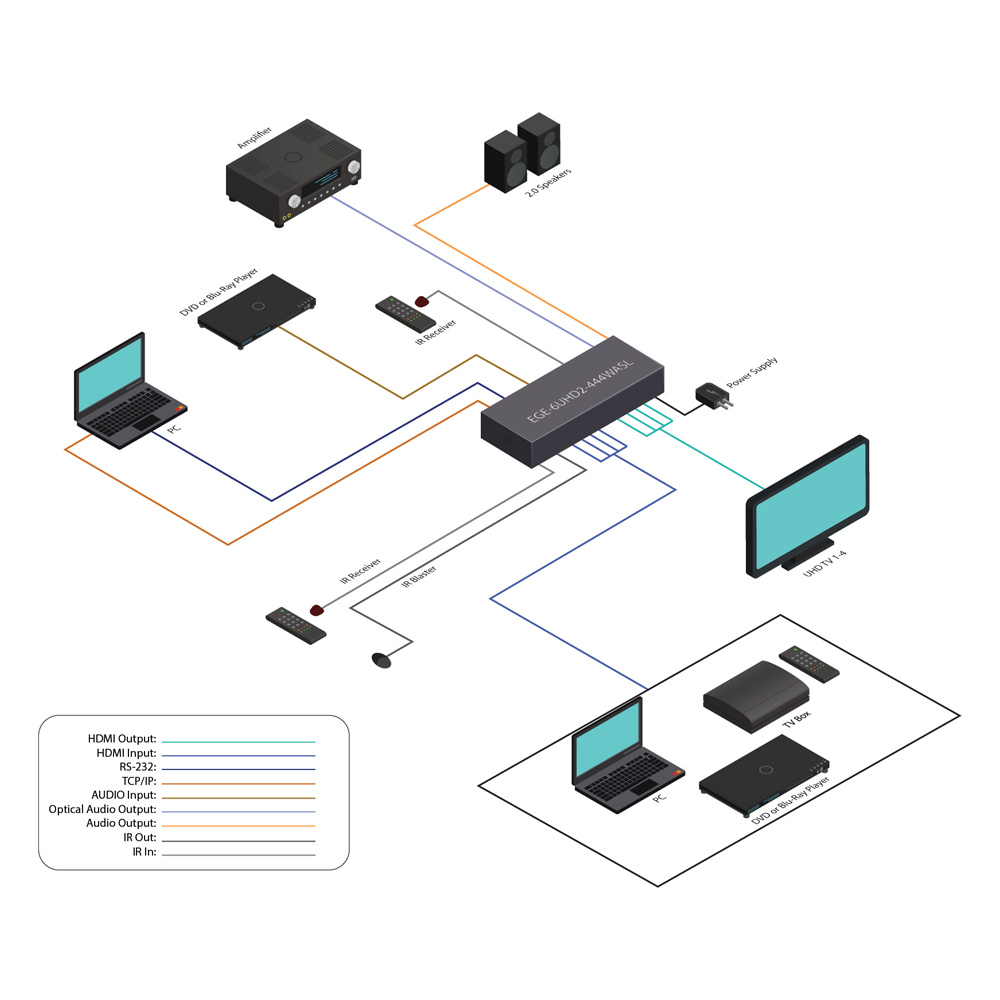

Diagrams

Downloads

Datasheet

User Manual
