18Gbps 8x8 HDMI Matrix with ARC Function

18Gbps 8×8 HDMI Matrix
w/ Audio
ARC, CEC, EDID management

Categories: , ,
Brand:

Description

The 18Gbps 8×8 HDMI Matrix supports the transmission of video (up to 4K2K@60Hz YUV 4:4:4) and multi-channel high resolution digital audio from 8 HDMI sources to 8 HDMI displays. Audio de-embedded to analog and coaxial audio is supported from 8 HDMI output ports. While HDMI output ARC function is enabled, the ARC audio from HDMI display devices will be extracted to coaxial audio output. Each HDMI output of this 8×8 HDMI Matrix supports 4K2K to 1080P downscaler independently. Control is via front panel buttons, IR remote, RS-232, LAN and Web GUI

Spesifications

• HDMI 2.0b, HDCP 2.2 and HDCP 1.4 compliant

• Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI ports

• Support 18Gbps video bandwidth

• Dolby Vision, HDR10+ and HLG are supported.

• Support 4K->1080P Down Scaler for each output port

• HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)

• Audio de-embedded is supported via analog and coax ports

• ARC, CEC and smart EDID management are supported

• 1U rack mounted design with front panel OLED display

• Control via front panel buttons, IR remote, RS-232, LAN and Web GUI

Box Contents

• 1 x 18Gbps 8 x 8 HDMI Matrix

• 1 x 12V/5A Power Adapter

• 1 x IR Remote

• 1 x IR Receiver cable (1.5 meters)

• 1 x RS-232 serial cable (1.5 meters, male to female head)

• 2 x Mounting Ear

• 1 x User Manual

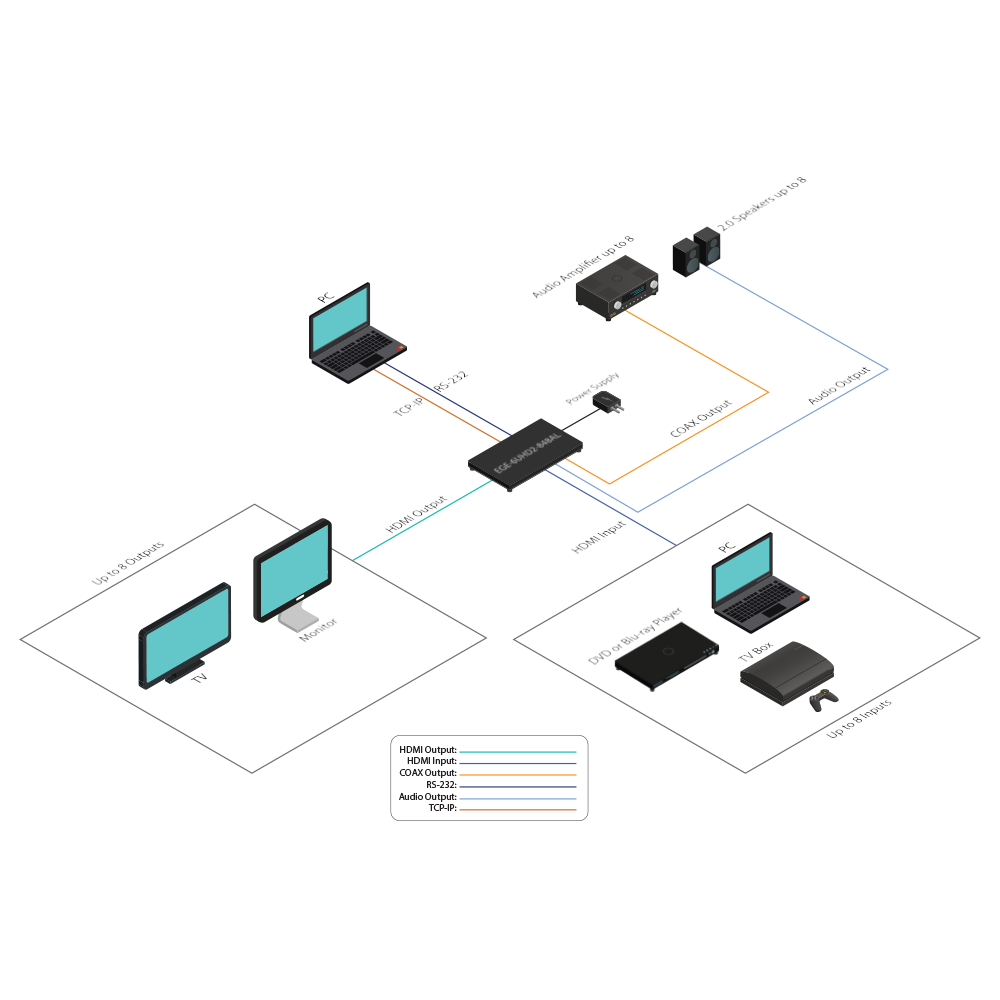

Diagrams
