EGE-6UHD2-848WASL

18Gbps 8x8 Seamless UHD Matrix

18 Gbps 8×8 HDMI Matrix
w/ Audio In – Out
Videowall Function

Categories: , , ,
Brand:

Description

The 18Gbps 8×8 seamless UHD Matrix can connect 8 HDMI sources to 8 HDMI displays. Supported video resolution is up to 4K60 4:4:4. The product supports IR matrix, and IR matrix routing follows the video routing. Audio extract and insert are supported. The product supports one or more video wall with RS232 command.



Spesifications

  • HDMI 2.0 and HDCP 2.2 compliant
  • Support 18 Gbps video bandwidth
  • Support seamless switching
  • Support video wall
  • Support IR matrix
  • Support HDMI audio extract
  • Support external L/R audio insert on HDMI stream
  • Support EDID management HDMI video output resolution up to 3840×2160@60
  • Support front panel,RS232,TCP/IP(LAN10M/100M)control

Box Contents

• 1 x 8×8 seamless UHD Matrix

• 1 x AC Power Cord

• 1 x Matrix IR Remote

• 4 x IR Receiver cable (1.5 meters)

• 4 x IR Blaster cable (1.5 meters)

• 1 × CAT6 cable

• 1 × USB to RS232 Cable

• 1 × User Manual

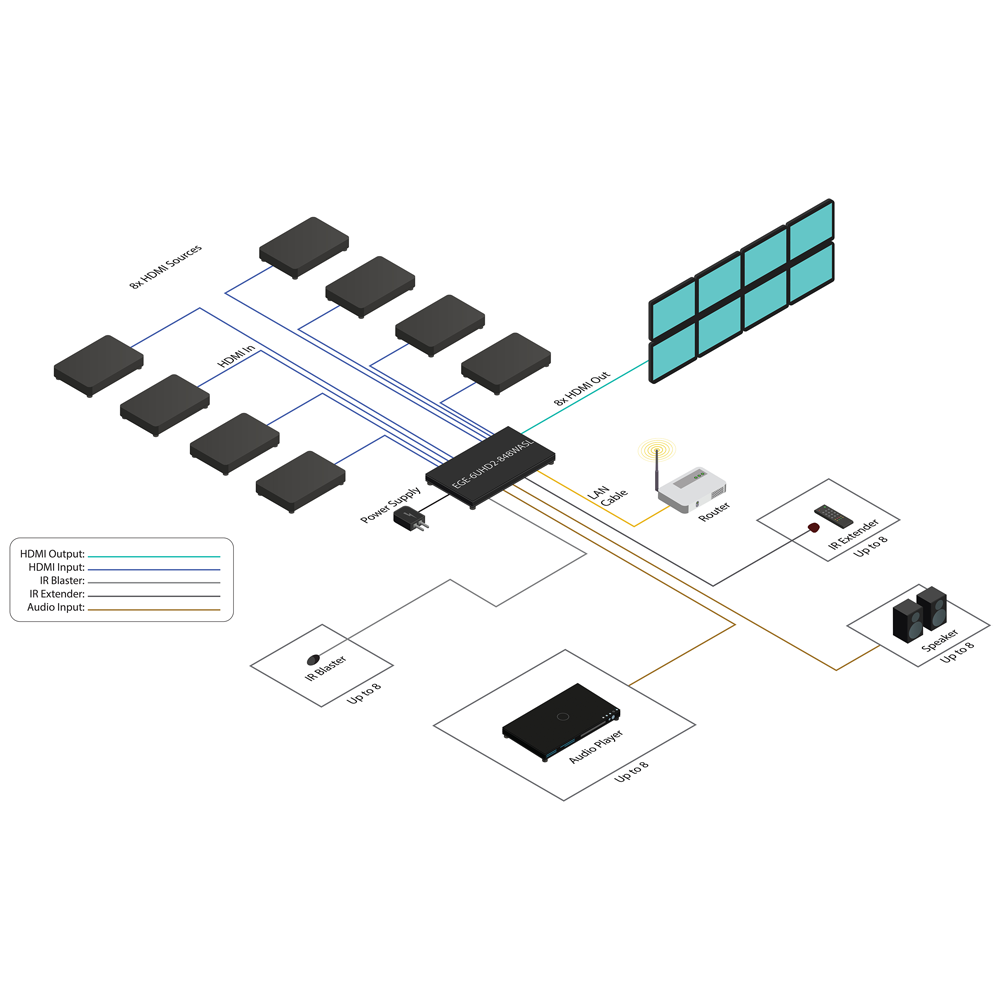

Diagrams

Dowloads

User Manual
Datasheet
