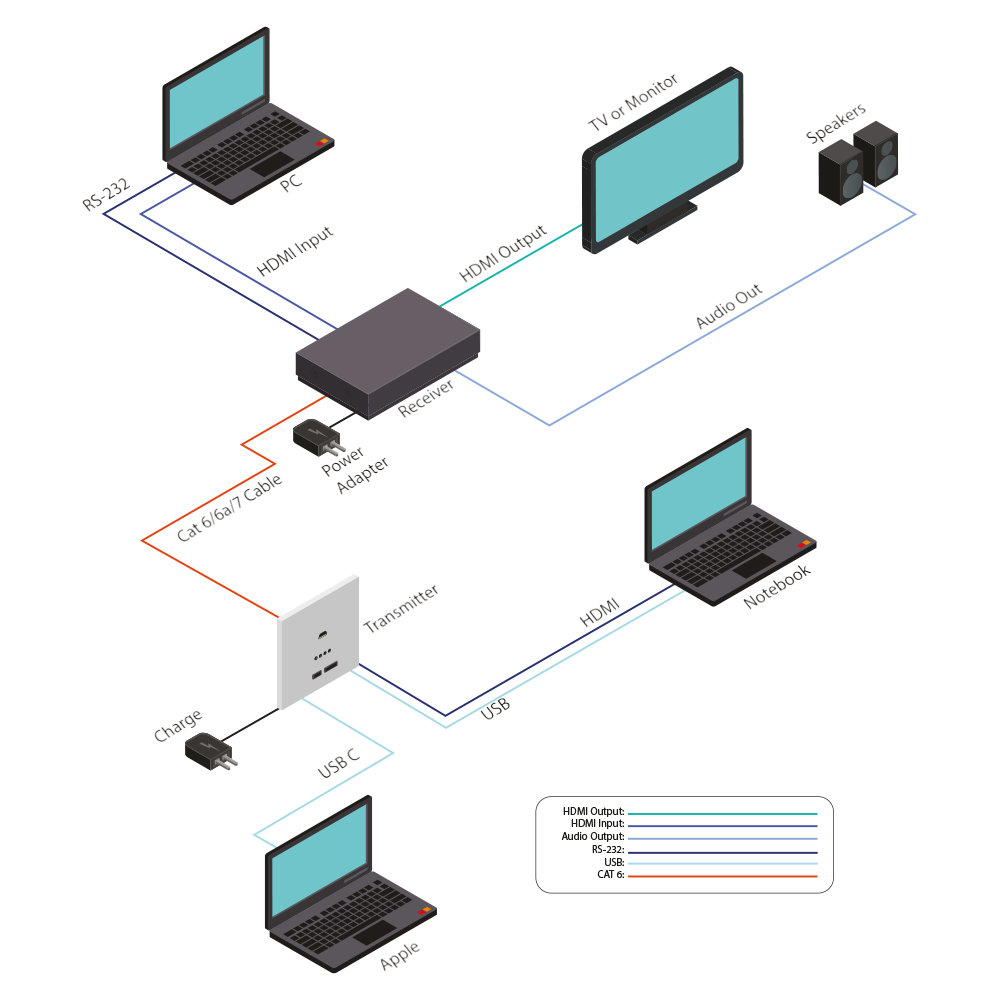

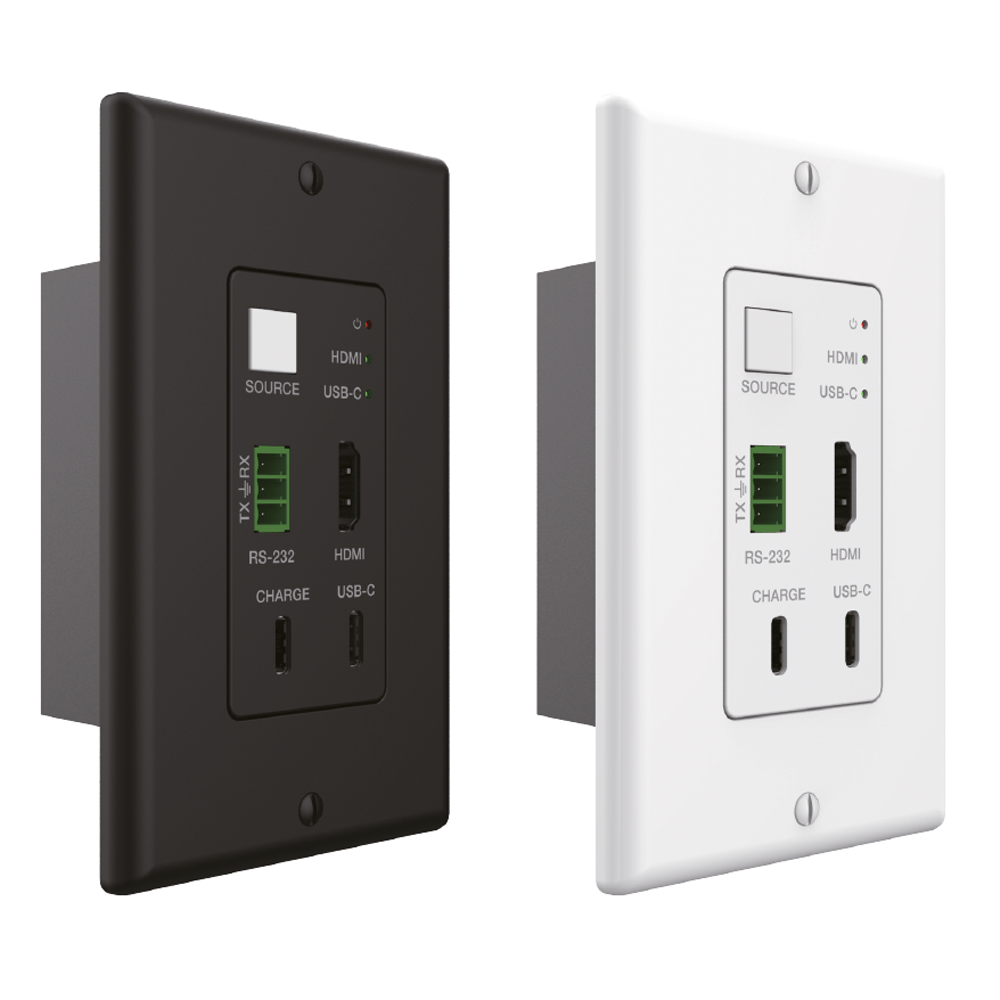

The wall plate is a 2×1 switcher and HDBaseT transmitter with HDMI and USB-C inputs. It features a US one-gang enclosure for Decora-style wall plate openings with interchangeable black and white wall plates and faceplates. Support video resolution up to 4K2K\@50/60Hz 4:4:4. It supports bidirectional RS-232 pass-through, and the RS-232 control signal can be transmitted up to 131ft / 40m. The product is remotely powered by the receiver or other HDBaseT-equipped devices via POE.
Compliant with HDMI 2.0b, HDCP 2.2 and DisplayPort 1.2a
HDMI input supports up to 18Gbps video bandwidth
USB-C input supports up to 5.4Gbps video bandwidth
Supports video resolution up to 4K2K@50/60Hz 4:4:4
HDBaseT output can extend video transmission distance:
Up to 230ft / 70m for 1080P@60Hz
Up to 131ft / 40m for 4K@60Hz via a single CAT6/6a/7 cable
Supports 3D, HDR10, and Dolby Vision
HDMI audio format support includes:
LPCM, Dolby Digital/Plus/EX, Dolby True HD
DTS, DTS-EX, DTS-96/24, DTS High Res
DTS-HD Master Audio, DSD
Supports both HDMI and USB-C input
Includes a USB-C charging port
Fits US one-gang Decora-style wall plate openings
Input signal selection supports both automatic and manual modes
Supports POE function (only from Receiver to Transmitter)
Available in white or black coating
1 × 18Gbps HDBaseT 70M with USB-C/HDMI Wall Plate Transmitter
1 × 3-pin 3.81mm Phoenix Connector (male)
1 × Kullanım Kılavuzu (User Manual)
