HDMI Audio Inserter

HDMI Audio Bridge

Categories: , , Brand:

Description

The L/R and Optical Audio to HDMI Bridge is designed for analog or digital audio signal to be send out through HDMI. Allowing immidiate plug-and-play enjoyment over HDMI audio without obstruct. When connecting to a HDMI display a blue screen will appear with a simple OSD to show the current input audio. Supporting digital audio sampling rate up to 192kHz and analog audio sampling rate up to 48kHz.

Spesifications

  • Supports Analog to Digital audio Conversion (ADC)
  • Supports Optical audio sampling rate 32 kHz to 192 kHz and LPCM 2CH
  • Supports analog (L/R) audio sampling rate of 48 kHz
  • Plug and play, with no software required

Inputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 2x RCA [1x Stereo (L/R)]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/2.6A

Dimensions

  • 78mm [W] x 95mm [D] x 30mm [H]

Net Weight

  • 170g

Box Contents

• 1 x L/R & Optical Audio to HDMI Bridge

• 1 x 5V DC Power Adaptor

• Operational Manual

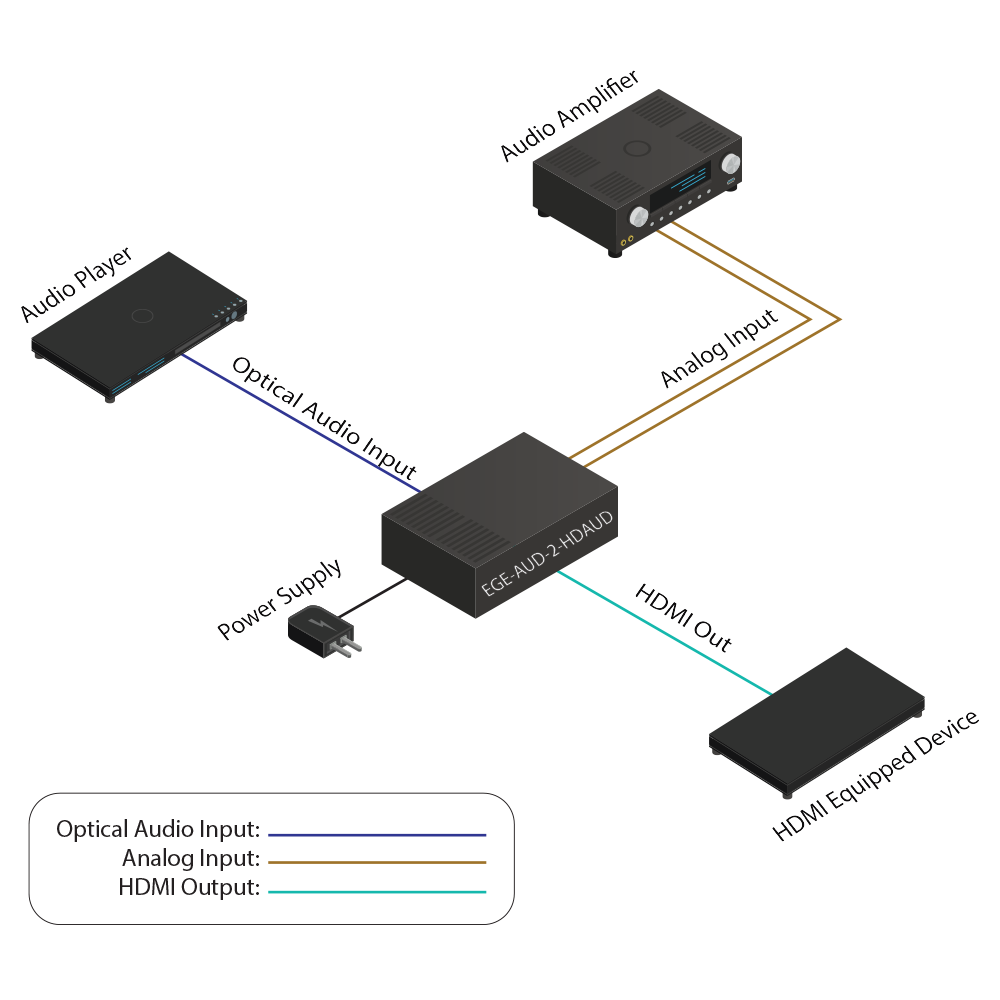

Diagrams

Dowloads

User Manual
Datasheet
