EGE-BOOS-UHD

HDMI 4K2K Repeater with Power Supply

HDMI Repeater
Resolution 4K2K
HDCP1.2 Compliant

Categories: , ,
Brand:

Description

The HDMI™ 4Kx2K Repeater is the most advanced solution for HDMI to HDMI signal repeater. It does amplifies signal and equalization to provide high performance I/O of audio and video through HDMI cable for distance up to 15 meters at 1080p@60Hz at 8-bit resolution.

Spesifications

  • Compatible with HDMI, HDCP 1.2 and DVI 1.0
  • Supports 3D signals and 4k×2k resolution
  • Supports HDMI audio sampling rates up to 192 kHz
  • HDMI supports high bit rate audio
  • Supports maximum input/output HDMI cable lengths up to 15 meters each at 1080p/8-bit resolution or 10 meters each at 1080p/12-bit or 4K×2K resolution
  • Supports the equalization and recovery of incoming TMDS data before retransmission with optimal signal quality
  • Supports CEC function

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • 5V/1.2A

Dimensions

  • 85mm [W] x 87mm [D] x 34mm [H]

Net Weight

  • 102gr

Box Contents

• HDMI 4Kx2K Repeater

• 5V Power adaptor

• Operation Manual

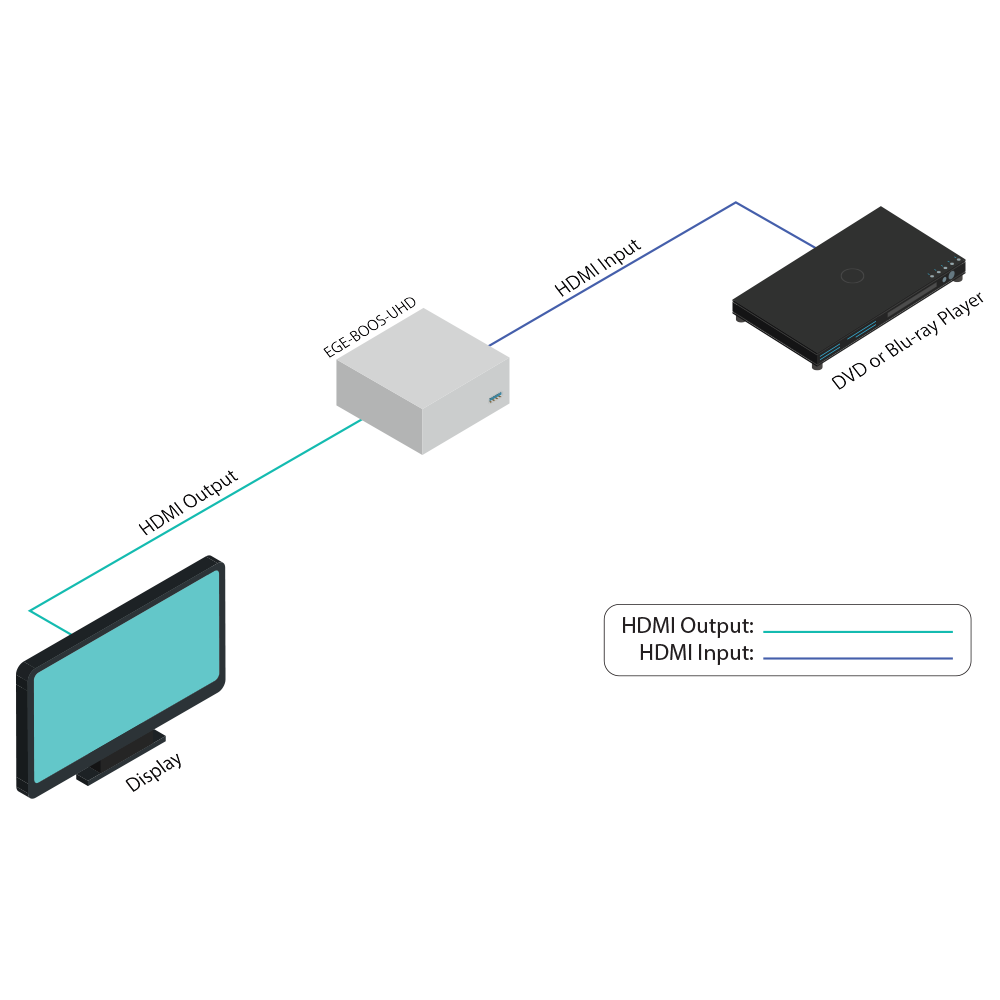

Diagrams

Dowloads

User Manual
Datasheet
