EGE-CAP-HD-USB

• FullHD capture HDMI to USB
• H.264/MPEG4-AVC High Definition encoder
• Video input supports: 1920x1080i/p, 1280x720p, 576i/p, 720x480i/p
• Supports MPEG-4 Advanced Audio Coding (AAC)
• 48 KHz audio sampling frequencies
• It use USB bus power for low power consumption

Inputs

• 1x HDMI [1x Uncompressed AV and Data]

Outputs

• 1x USB Mini-B [1x Propriety Data / USB Power]

PSU:

• USB powered

Dimensions

• 121mm [W] x 65mm [D] x 21mm [H]

Net Weight

• 146g

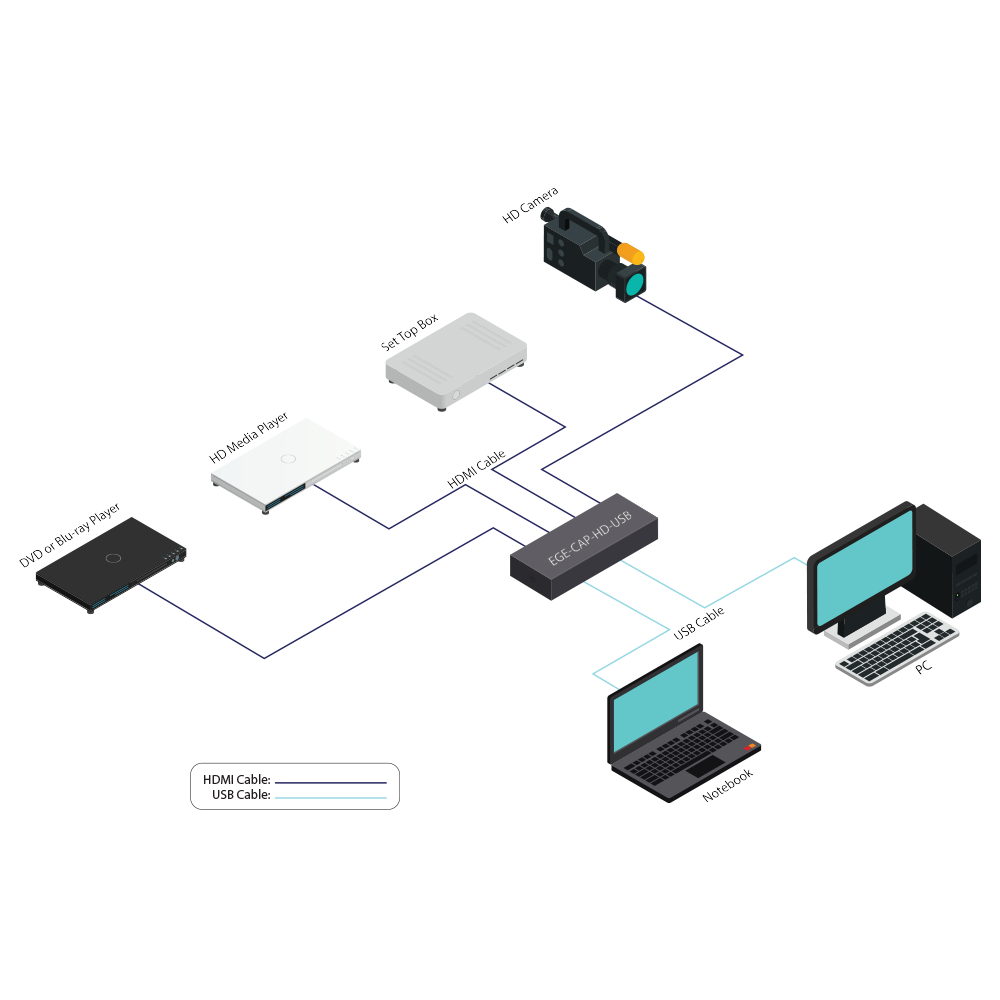

EGE-CAP-HD-USB is High Definition capture box supports HDMI 1080p video input and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products.
