EGE-CAP-HDCMP-USB

HDMI/COMP/SV/CV to USB FullHD Capture

HDMI/Component Video/CV/SV to USB Video Capture

Categories: , ,
Brand:

Description

EGE-CAP-HDCMP-USB is High Definition capture box supports HDMI 1080p video/component/SV/CVinput and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products.

Spesifications

  • FullHD capture HDMI/COMP/SV/CV to USB
  • H.264/MPEG4-AVC High Definition encoder
  • Video input supports: 1920x1080i/p, 1280x720p, 576i/p, 720x480i/pSupp
  • orts MPEG-4 Advanced Audio Coding (AAC)
  • 48 KHz audio sampling frequencies
  • It use USB bus power for low power consumption

Inputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x 8-pin DIN [1x COMP/SV/CV YCbCr]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

Outputs

  • 1x USB Mini-B [1x Propriety Data / USB Power]

PSU:

  • USB powered

Dimensions

  • 121mm [W] x 65mm [D] x 21mm [H]

Net Weight

  • 146g

Box Contents

HDMI/COMP/SV/CV to USB Cature Box

• Driver CD Disc

• COMP/SV/CV converter cable

• Operation Manual

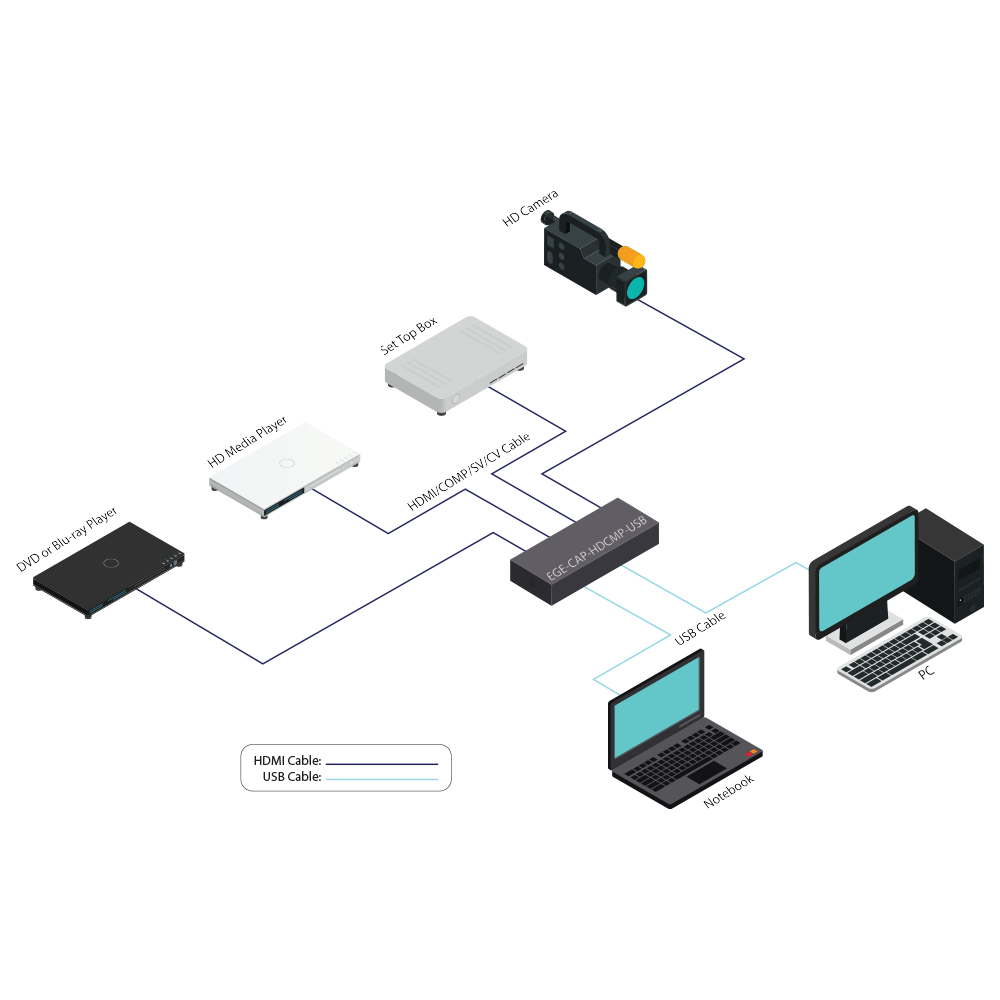

Diagrams

Dowloads

User Manual
Datasheet
