EGE-CIR-03/12

Infrared over Single CAT5e/6/7 Extender

Infrared Extender
Over CAT 5e/6/7
Extends 250m

Description

The IR Extender and the IR Repeater Box are perfect for controlling source devices over long distances using CAT5 Cable. By using the built-in IR Receiver of the IR Repeater, users are able to control up to five sources (with the original remote controls) at the same time at a distance of up to 250 m. There are no space limitations with these devices, which means even if the sources are in a different room or even another floor than the display, the performance stays the same. The IR Extender and the IR Repeater Box give users an easy and convenient way to control their desired source. If however, users only wish to control sources in the same room then the IR Repeater Box will be enough to control up to 2 sources. The IR Extender Box is designed for longer distances and extra source device control than the IR Repeater Box

Spesifications

  • Supports up to 5 outputs (3 for Infrared Extender, 2 for Infrared Repeater)
  • Control sources anywhere, can be run through walls and extends IR up to 250m
  • Extends infrared signals only
  • It allows usage of existing remote controls
  • Only one IR Receiver is needed
  • IR Receiver’s frequency range can be 30-50 kHz

TRANSMITTER

Inputs

  • 1x 3.5mm Stereo Mini-jack [1x Infrared Receiver]
  • 1x RJ45 [1x IR Propriety Data]

Outputs

  • 2x 3.5mm Stereo Mini-jack [2x Infrared Emitter]

PSU:

  • 5V/1A

Dimensions

  • 62mm [W] x 50mm [D] x 23mm [H]

Net Weight

  • 78gr

RECEIVER

Inputs

  • 1x RJ45 [1x IR Propriety Data]

Outputs

  • 3x 3.5mm Stereo Mini-jack [3x Infrared Emitter]

PSU:

  • 5V/1A

Dimensions

  • 62mm [W] x 50mm [D] x 23mm [H]

Net Weight

  • 78gr

Box Contents

• 1×Infrared Extender

• 1×Infrared Repeater

• 1×IR Extender (for Infrared Repeater)

• 5×Blasters (3 for Infrared Extender, 2 for Infrared Repeater)

• 1×5V DC Power Adaptor (for Infrared Repeater)

• Operation Manual

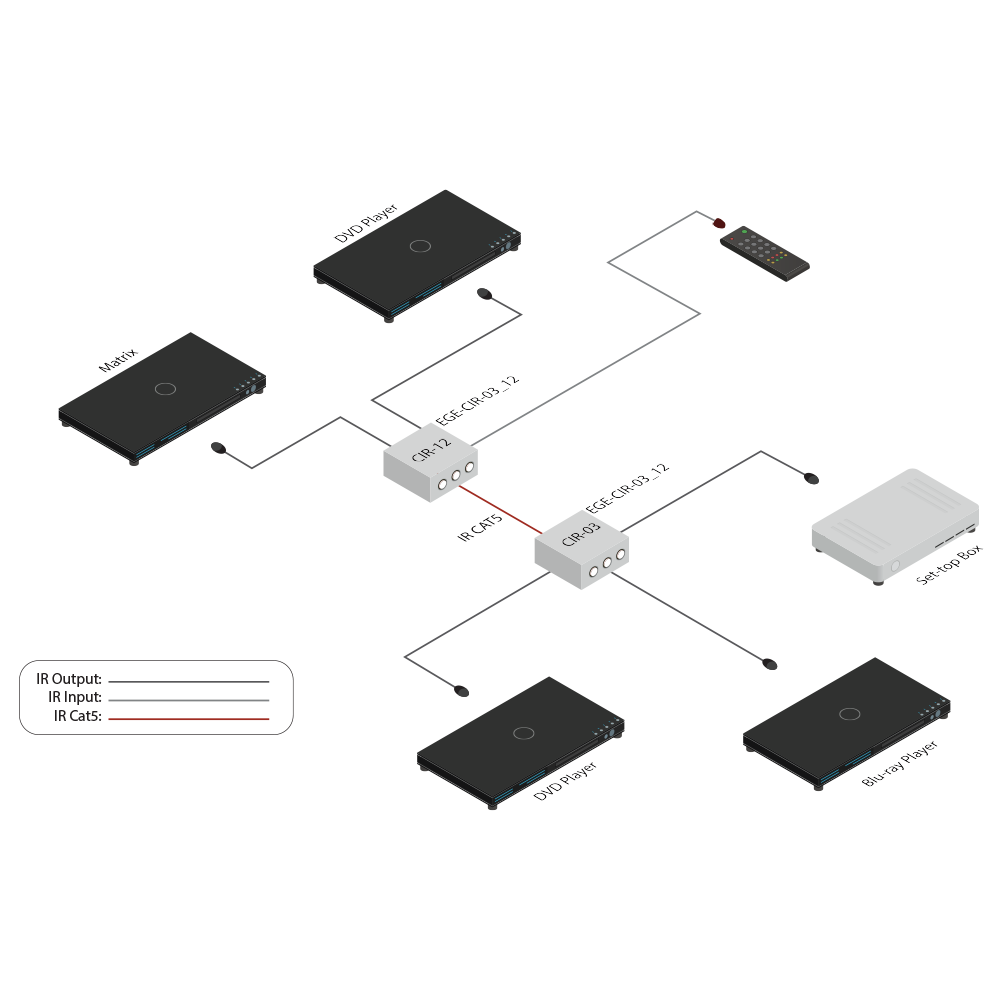

Diagrams
