Description
The EGE-CMP-143 is capable of distributing video in 3 different formats and is ideal for use in analog video entertainment distribution system
EGE-CMP-143
1×3 Component Video Splitter
1×3 Component Video Splitter
HD and SD Video Support
Spesifications
- Component/composite or RGB distribution amplifier
- Supports HDTV (YPbPr, RGsB) and SD (composite, YCbCr) input signal
- Splits one component input to 3 identical outputs via RCA connectors
- Supports connection with 3 different video input and output three identical signal for each video input when input is composite video
- Worldwide power supply
- High bandwidth performance – 480MHz bandwidth at -3dB
Inputs
- 3x RCA [1x YCbCr Component / YPbPr Component]
Outputs
- 9x RCA [3x YCbCr Component / YPbPr Component]
PSU:
- 5V/1A
Dimensions
- 141mm [W] x 105mm [D] x 38mm [H]
Net Weight
- 550gr
Box Contents
– One EGE-CMP-143 unit. – One set of power supply – One user manual – One set of 3BNC male to 3BNC male cable

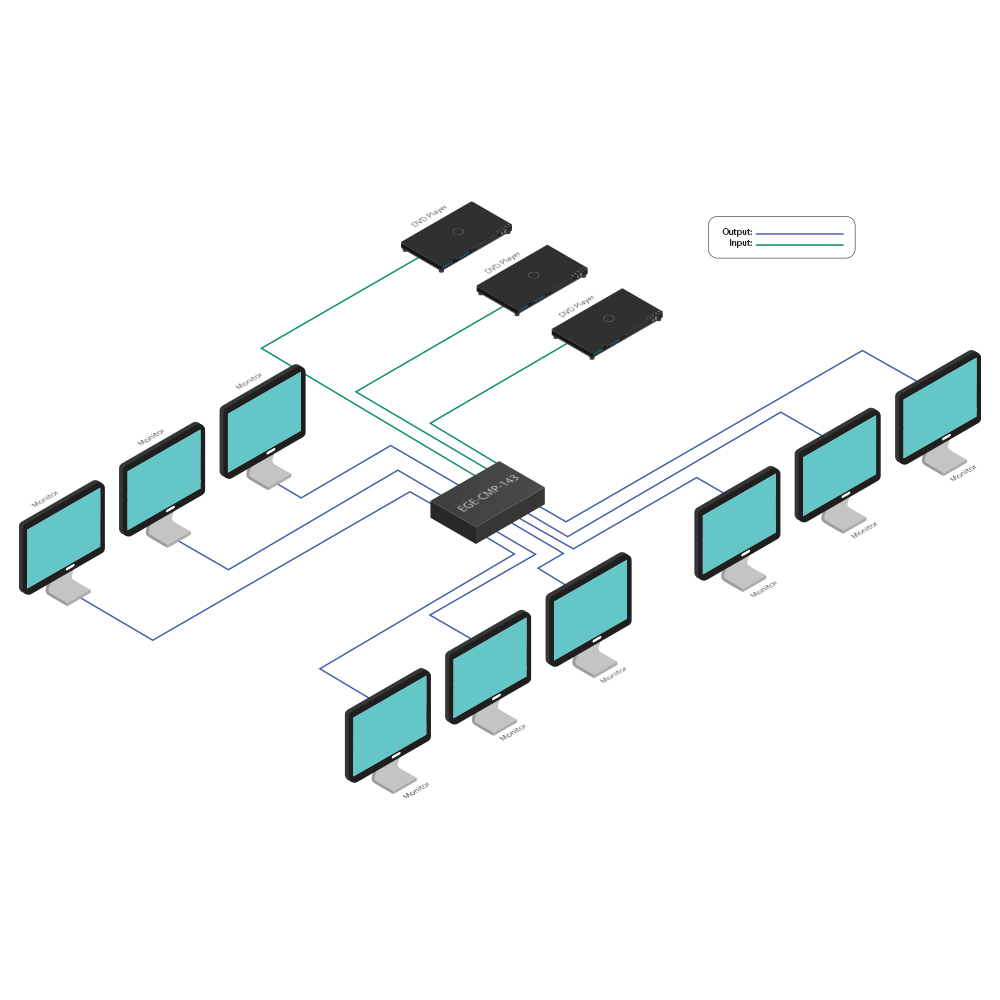

Diagrams
Dowloads
User Manual
Datasheet
