EGE-CNV-3SDI-HDAUD

3G-SDI to HDMI/3G-SDI Video Converter

3G-SDI to HDMI Converter
1080p@60Hz

Categories: , ,
Brand:

Description

The SDI to HDMI Converter allows SD, HD and 3G-SDI signals to be shown on HDMI display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on HDMI displays. In addition, the external audio output allows the user to send the audio signal originally embedded in the SDI input to an amplifier or active speakers.

Spesifications

  • Shows SDI source on HDMI display
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI input signals
  • Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mb/s:
    • 3G-SDI supports SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s
    • HD-SDI supports SMPTE 292M@1.485Gbit/s & 1.485/1.001Gbit/s
    • SD-SDI supports SMPTE 259M-C@270Mbit/s
  • Converts SDI format to HDMI:
    • 3G-SDI (SMPTE 424M/425M-A) to 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080PsF@23.98/24/25/29.97/30Hz
    • HD-SDI (SMPTE 292M) to 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz
    • SD-SDI (SMPTE 259M-C) to 480i/576i
  • Supports SDI input distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Inputs

  • 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

PSU:

  • 5V/2.6A

Dimensions

  • 78mm [W] x 124mm [D] x 30mm [H]

Net Weight

  • 202g

Box Contents

• 3G-SDI to HDMI Converter

• 5V/2.6A DC Power Adaptor

• Operation Manual

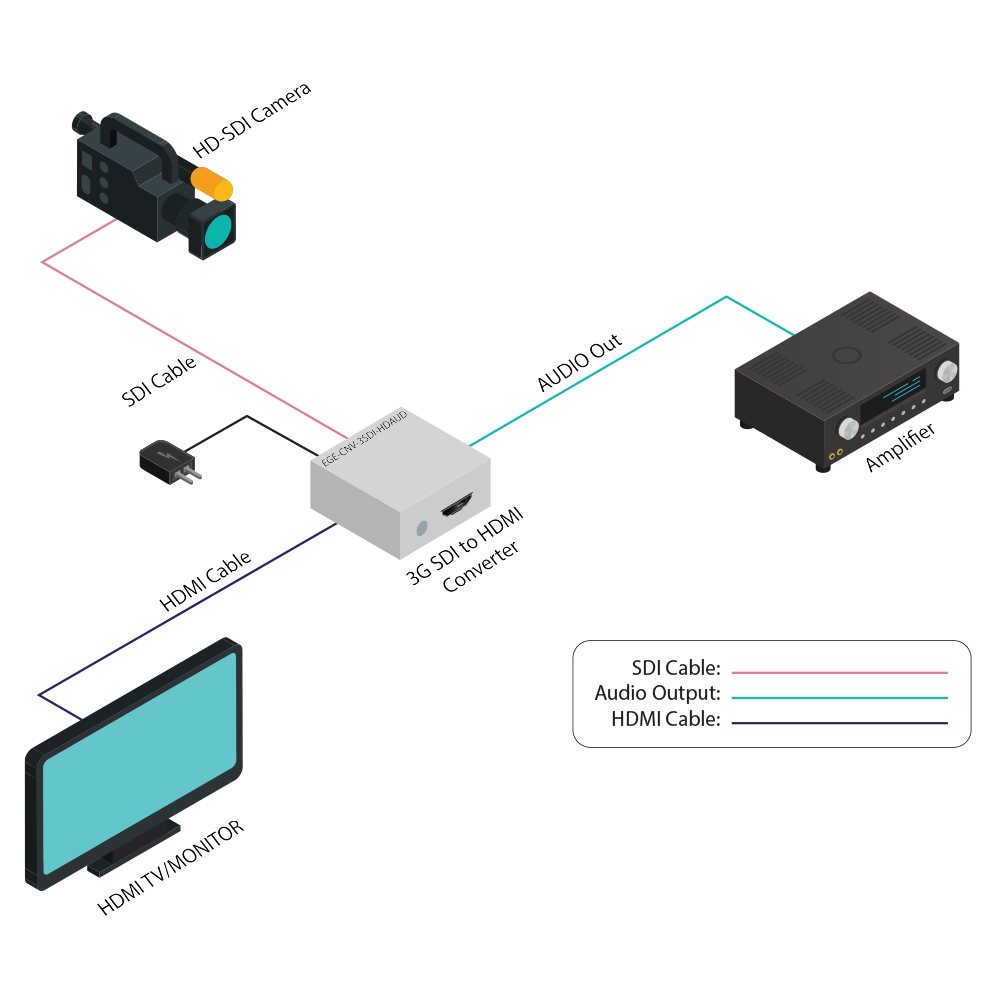

Diagrams
