EGE-CNV-DVI-3SDIA

DVI to 3G-SDI Video Converter with Audio

DVI to 3G-SDI Converter with Stereo Audio Input
480p-576p to SD-SDI
720p-1080p to HD-SDI
1080p to 3G-SDI

Categories: , ,
Brand:

Description

The DVI to SDI Converter allows DVI-D signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition DVI signal with audio to SDI for long distance transmission and display your work on SDI display. In addition, the external audio input allows the user to insert the sound from a different audio source instead of the DVI embedded audio, and send to the SDI output

Spesifications

  • Shows DVI source on SDI display
  • Supports SDI bitrates of 2.970Gbit/s & 2.970/1.001Gbit/s, 1.485Gbit/s & 1.485/1.001Gbit/s, and 270Mbit/s
  • Converts DVI format to SDI:
    • 480i/576i to SD-SDI (SMPTE 259M-C@270Mbit/s)
    • 720p/1080i to HD-SDI (SMPTE 292M,@1.485Gbit/s & 1.485/1.001Gbit/s)
    • 1080p to 3G-SDI (SMPTE 424M/425M-A@2.970Gbit/s & 2.970/1.001Gbit/s)
  • Supports DVI input timings of 480i@59.94Hz, 576i, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz
  • Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

Inputs

  • 1x DVI-I [1x DVI-D]
  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

Outputs

  • 1x BNC [1x 3G-SDI / HD-SDI / SD-SDI]

PSU:

  • 5V/2.6A

Dimensions

  • 78mm [W] x 124mm [D] x 30mm [H]

Net Weight

  • 204g

Box Contents

• DVI to 3G-SDI Converter

• 5 V/2.6 A DC Power Adaptor

• Operation Manual

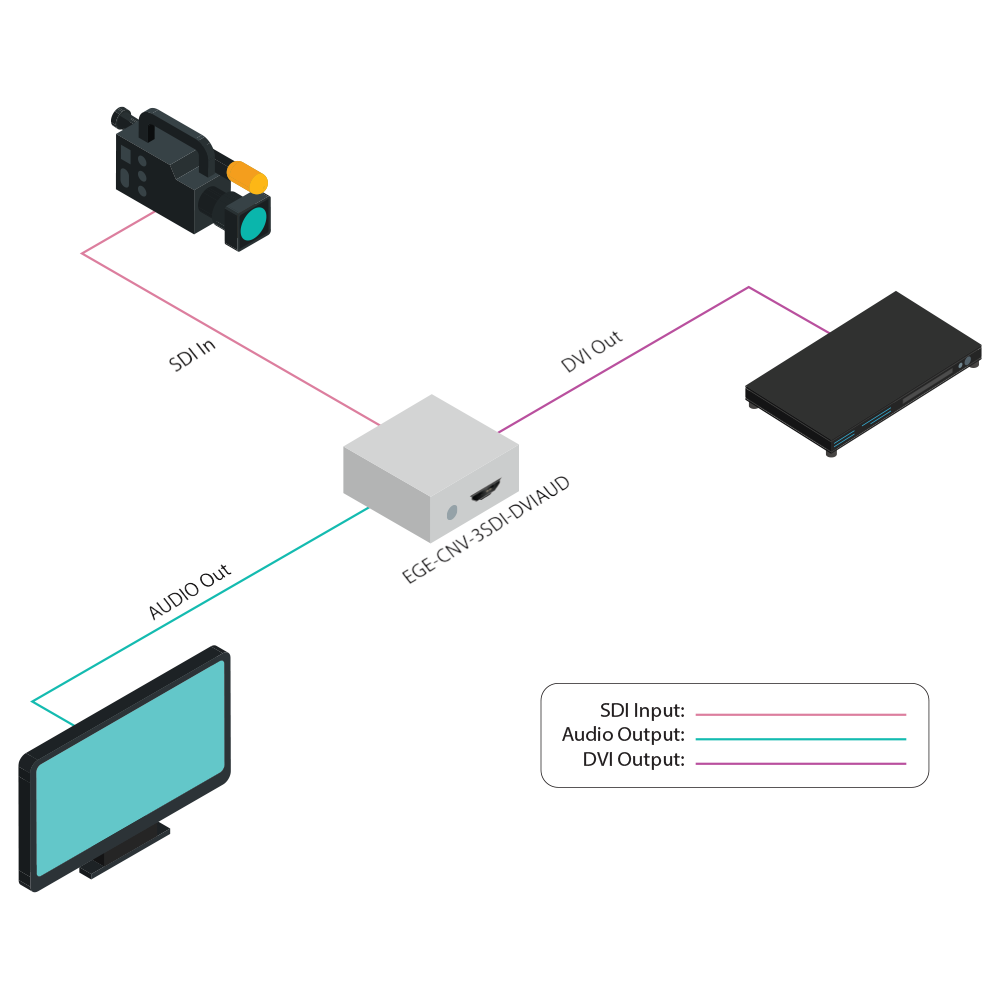

Diagrams

Dowloads

User Manual
Datasheet
