EGE-CNV-MDP-DLDVI

EGE-CNV-MDP-DLDVI

Mini DisplayPort to Dual-link DVI Converter

Mini DisplayPort to Dual-link DVI Converter
WQXGA (2560×1600)

Categories: , ,
Brand:

Description

The Mini DisplayPort converter is specifically designed to allow Mini DisplayPort source to display on the Dual Link DVI display. Supporting resolutions up to 2560×1600 and ideal for display Mac sources on DVI monitor, this device is powered by USB connection which makes it more convenient to power.

Spesifications

  • Compliance with DisplayPort Specification V1.1a at 1.62/2.7 Gbps data rate (Low bit rate/High bit rate)
  • Input/output support up to WQXGA (2560×1600 RB60) VESA display format
  • Easy to install and simple to operate
  • No software installation
  • Compact size with elegant design

Inputs

1x DisplayPort [1x mDP Uncompressed Video]
1x USB Mini-B [1x USB Power]

Outputs

1x DVI-I [1x Dual-link DVI DVI-D]

PSU:

USB powered

Dimensions

210mm [W] x 91mm [D] x 30mm [H]

Net Weight

230g

Box Contents

MDP to Dual –Link DVI

 Operation Manual

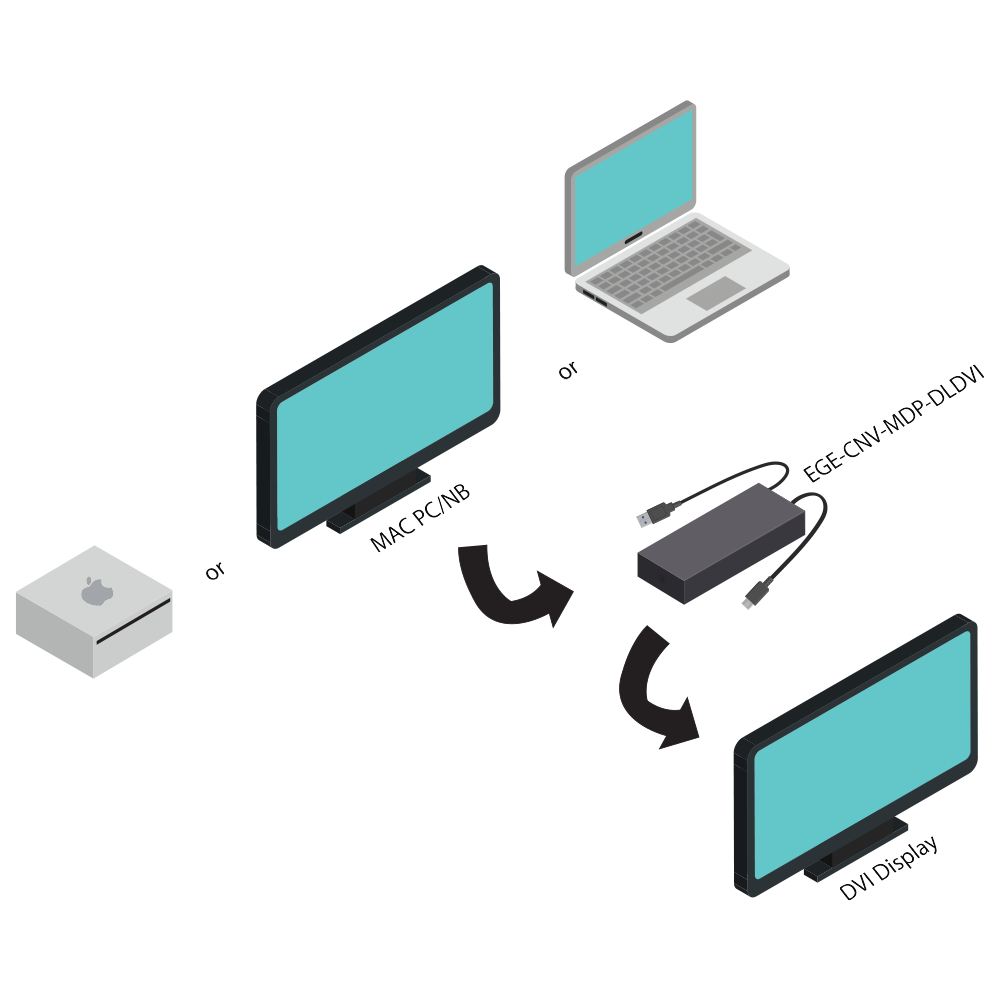

Diagrams

Dowloads

User Manual
Datasheet
