EGE-CNV-MDP-HD

Mini DisplayPort to HDMI Converter

Mini DisplayPort to HDMI Converter
1080p@60Hz
PC resolution: WUXGA

Categories: , ,
Brand:

Description

The Mini-DisplayPort to HDMI Converter is designed to display your MAC /PC / Notebook content on an HDTV or monitor. No external power supply is required, as the model can be powered by USB directly. No need to install any software, the model can work with MAC / PC / NB in a plug-and-play fashion, the installation is easy to anyone.

Spesifications

  • Compliant with HDMI (with Deep Color Video), HDCP 1.1 and DVI 1.0
  • Supports up to 1080p@50/60 and WUXGA
  • Supports pixel component format with RGB: YCbCr422: YCbCr444
  • Supports bit depth per color with 8/10/12-bit
  • Bi-direction Color Space Conversion (CSC) between RBG and YCbCr
  • Dithering for conversion from 12-bit component to 10/8-bit
  • Support USB 2CH, LPCM 48K@24-bit
  • Automatic audio error detection with soft mute function, preventing annoying harsh output sound due to audio error or hot-unplug
  • Automatic loss of signal detection for link management

Inputs

  • 1x DisplayPort [1x mDP Uncompressed Video]
  • 1x USB Mini-B [1x USB Audio / USB Power]

Outputs

  • 1x HDMI [1x Uncompressed AV and Data]

PSU:

  • USB powered

Dimensions

  • 100mm [W] x 62mm [D] x 22mm [H]

Net Weight

  • 22g

Box Contents

• Mini-DisplayPort to HDMI Signal Converter

• Operation Manual

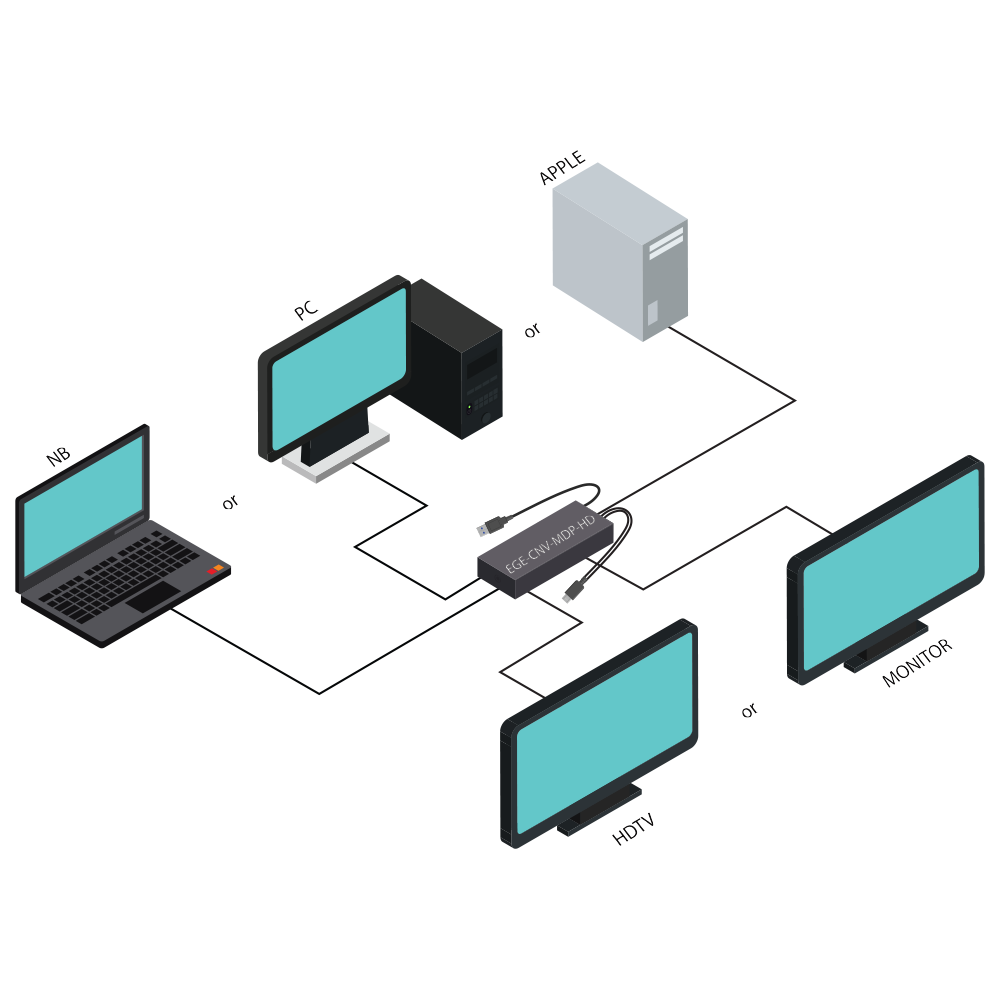

Diagrams

Dowloads

User Manual
Datasheet
