EGE-COX-AUD-DBY

Digital to Analog Audio Converter with Dolby Digital Decoder

Optical to Stereo Audio Converter

Categories: , ,
Brand:

Description

The Optical to Analog Audio Converter (DAC) with Dolby® Digital Decoder provides the ideal solution for converting an optical digital audio signal to analog stereo audio. With audio sampling rate support up to 48 kHz (Dolby Digital)/96 kHz (LPCM) and I/O data rate support up to 24-bit, it provides high quality sound conversion. The Dolby Digital Decoder function guarantees that Dolby digital audio signals are downmixed to analog stereo without loss of quality. This unit is perfect for use in computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Bluray players or computers without the need for a separate power supply.

Spesifications

  • Supports optical digital audio signal input and conversion into analog audio signal L/R output
  • Supports uncompressed digital LPCM stereo or Dolby Digital 5.1CH audio inputs
  • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
  • Supports Dolby Digital 5.1CH audio sampling rates of 48 kHz
  • Supports Dolby Digital audio downmixing to 2-channel audio
  • Supports S/PDIF bitstream 24-bit of data for the left and right channels
  • Compact, elegant design and easy to install

Inputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital]
  • 1x USB Mini-B [1x 5V USB Power]

Outputs

  • 2x RCA [1x LINE OUT Stereo (L/R)]

PSU:

  • USB powered

Dimensions

  • 55mm [W] x 82mm [D] x 22mm [H]

Net Weight

  • 65g

Box Contents

• Optical to Analog Audio Converter with Dolby Digital Decoder

• Mini-USB to USB A type cable

• Operation Manual

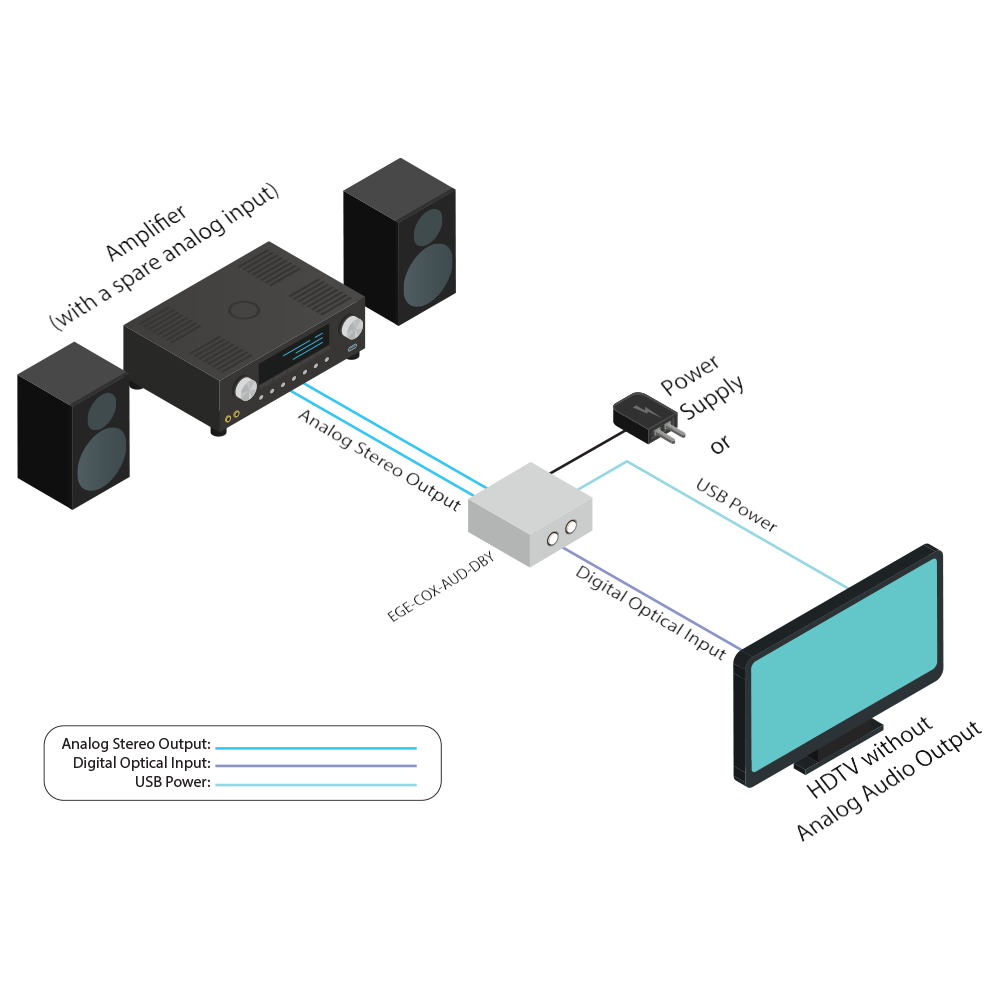

Diagrams
