EGE-COX-AUD-DBYDTS

Coaxial to Analog Audio Converter with Dolby Digital & DTS Digital Surround Decoder

Coaxial to Stereo Audio Converter

Categories: , ,
Brand:

Description

The Coaxial to Analog Audio Converter (DAC) with Dolby® Digital & DTSTM 2.0 Decoder provides the ideal solution for converting an coaxial digital audio signal to analog stereo audio. It provides high quality sound conversion. The Dolby Digital & DTS 2.0 function guarantees that Dolby digital/DTS2.0 audio signals are downmixed to analog stereo without loss of quality. This unit is perfect for use in computer audio systems or digital mixing consoles

Spesifications

  • Supports coaxial digital audio signal input and conversion into analog audio signal L/R output
  • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz)
  • Supports DTS 2.0 5.1CH audio sampling rates up to 96 kHz
  • Supports Dolby Digital 5.1CH audio sampling rates up to 48 kHz
  • Supports Dolby Digital & DTS 2.0 audio downmixing to 2-channel audio
  • Supports S/PDIF bitstream 24-bit of data for the left and right channels
  • Compact, elegant design and easy to install

Inputs

  • 1x RCA [1x 2 Channel LPCM / DTS / Dolby Digital]

Outputs

  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/1.2A

Dimensions

  • 55mm [W] x 86mm [D] x 22mm [H]

Net Weight

  • 42g

Box Contents

Coaxial to Analog Audio Converter with Dolby Digital Decoder & DTS 2.0 Decoder

• Operation Manual

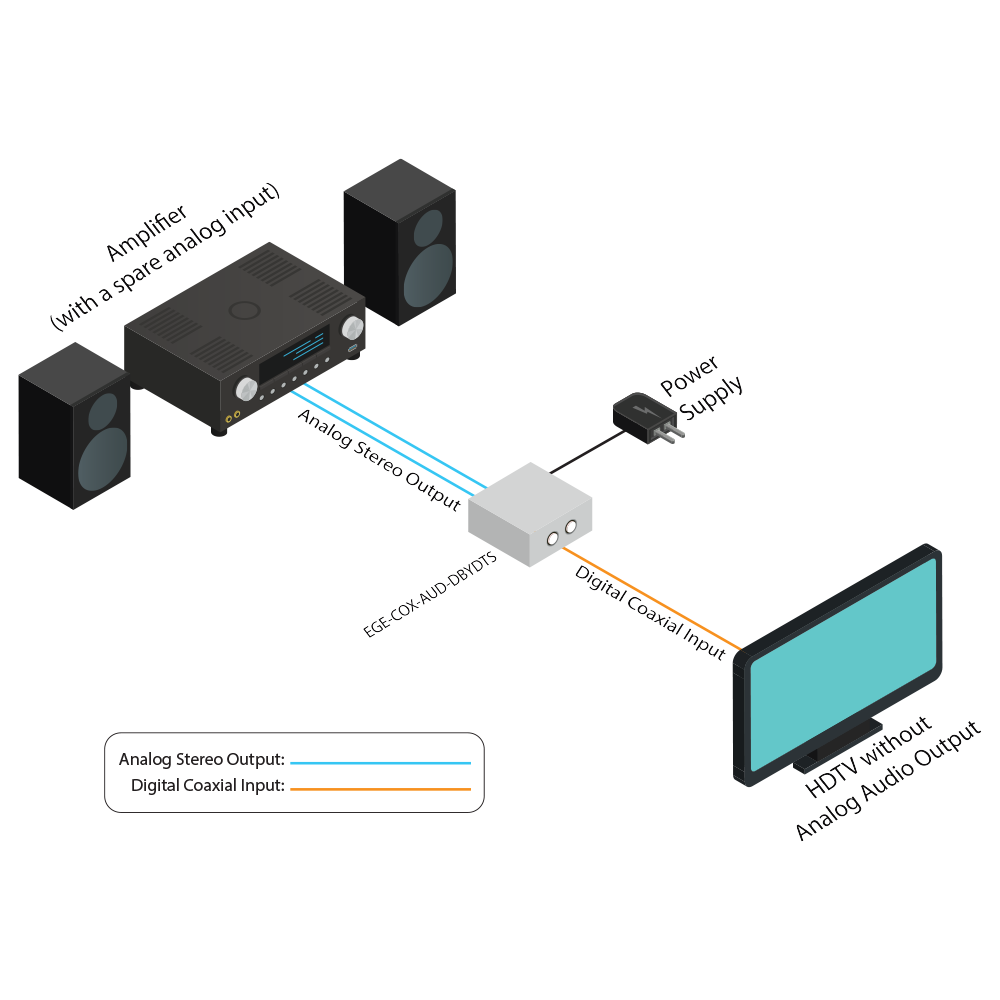

Diagrams

Dowloads

User Manual
Datasheet
