Box Contents
• USB HD Audio Converter
• 3.5mm Stereo to 6.35mm Headphone Jack Adaptor
• USB Type-A to Mini-B Cable
• Installation CD
• Operation Manual
EGE-CT-16
USB to Optical/Stereo Audio Converter
USB to Optical/Stereo Audio Converter
with Headphones Output
Description
The USB HD Audio Converter supports the transmission of high de nition audio from a PC or laptop over a High Speed USB 2.0 cable. It will output digital audio via its Optical connection while convert the digital input signal into Analog Stereo via its RCA connection. The professional DAC also allows users to directly connect their headphones via its Headphone output to enjoy high de nition audio. All audio signals are outputted simultaneously, allowing for greater exibility in integrating computer audio signals into an AV installation
Spesifications
- Supports sampling rates 44.1, 48, 88.2, 96, 176.4 and 192 kHz
- Supports bit rates 16 bit or 24 bit
- Supports Windows and Mac OS
- Compact design
- Powered by USB port
- Supports simultaneous audio output (Headphone, analog Stereo (L/R) and digital Optical)
- ASIO driver support (Audio Stream Input/Output) with the supplied CD
- USB asynchronous mode
Inputs
- 1x USB Mini-B [1x USB Audio / USB Power]
Outputs
- 1x TOSLINK [1x Optical 2 Channel LPCM]
- 2x RCA [1x Stereo (L/R)]
- 1x 6.35mm Stereo Jack [1x Microphone]
PSU:
- USB powered
Dimensions
- 97mm [W] x 85mm [D] x 35mm [H]
Net Weight
- 120gr

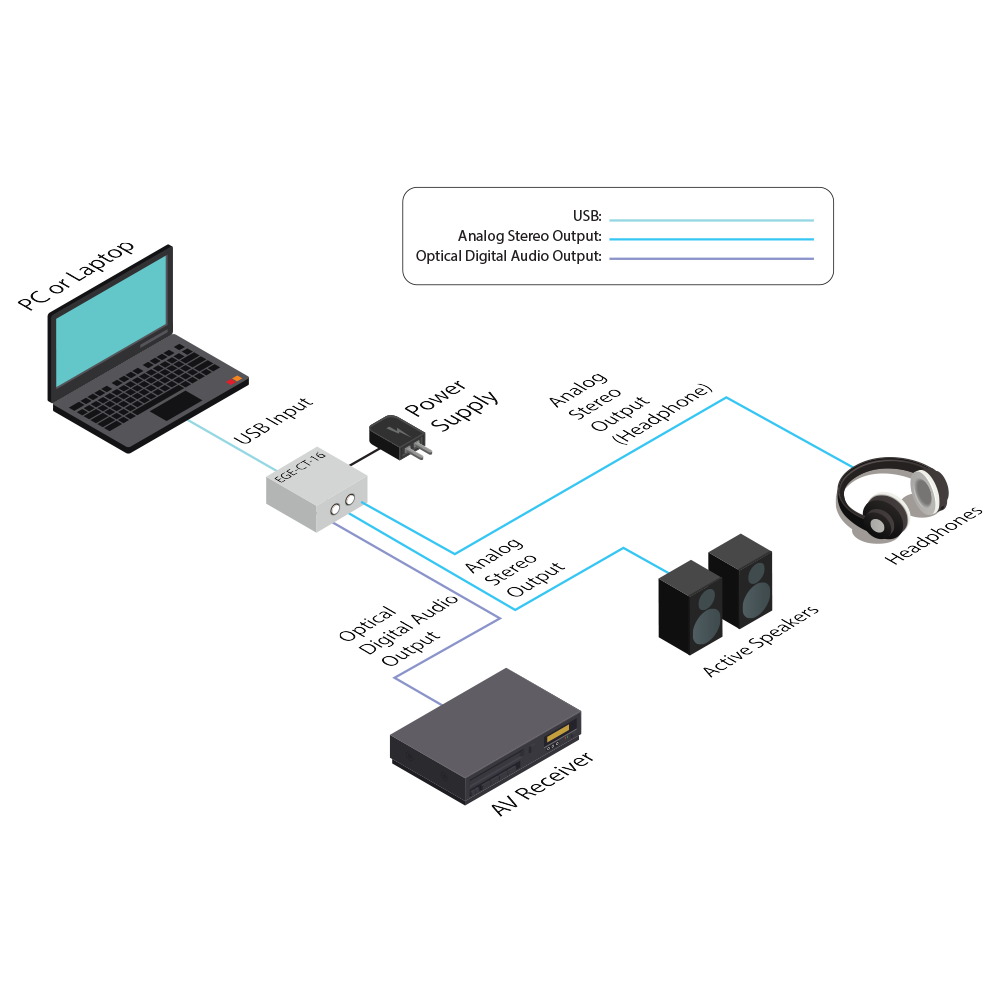

Diagrams
