EGE-CT-17

4×1 Optical Audio Switcher

4×1 Optical Audio Switcher
Sampling Rate 192 kHz

Description

The 4 by 1 Optical Audio Switcher has four optical inputs and one optical output and allows users with multiple optical sources to switch between sources without delay. The device has a built-in last memory function and IR remote control which provides a more user-friendly experience.

Spesifications

  • Supports optical sampling rate up to 192 kHz
  • Low power consumption
  • Compact design

Inputs

  • 4x TOSLINK [4x Optical 2 Channel LPCM / Dolby Digital / DTS]

Outputs

  • 1x TOSLINK [1x Optical 2 Channel LPCM / Dolby Digital / DTS]

PSU:

  • 5V/1A

Dimensions

  • 35mm [W] x 85mm [D] x 85mm [H]

Net Weight

  • 90gr

Box Contents

• 4 by 1 Optical Audio Switcher

• IR Remote Control (CR-72)

• 5 V/1 A Power Adaptor

• Operation Manual

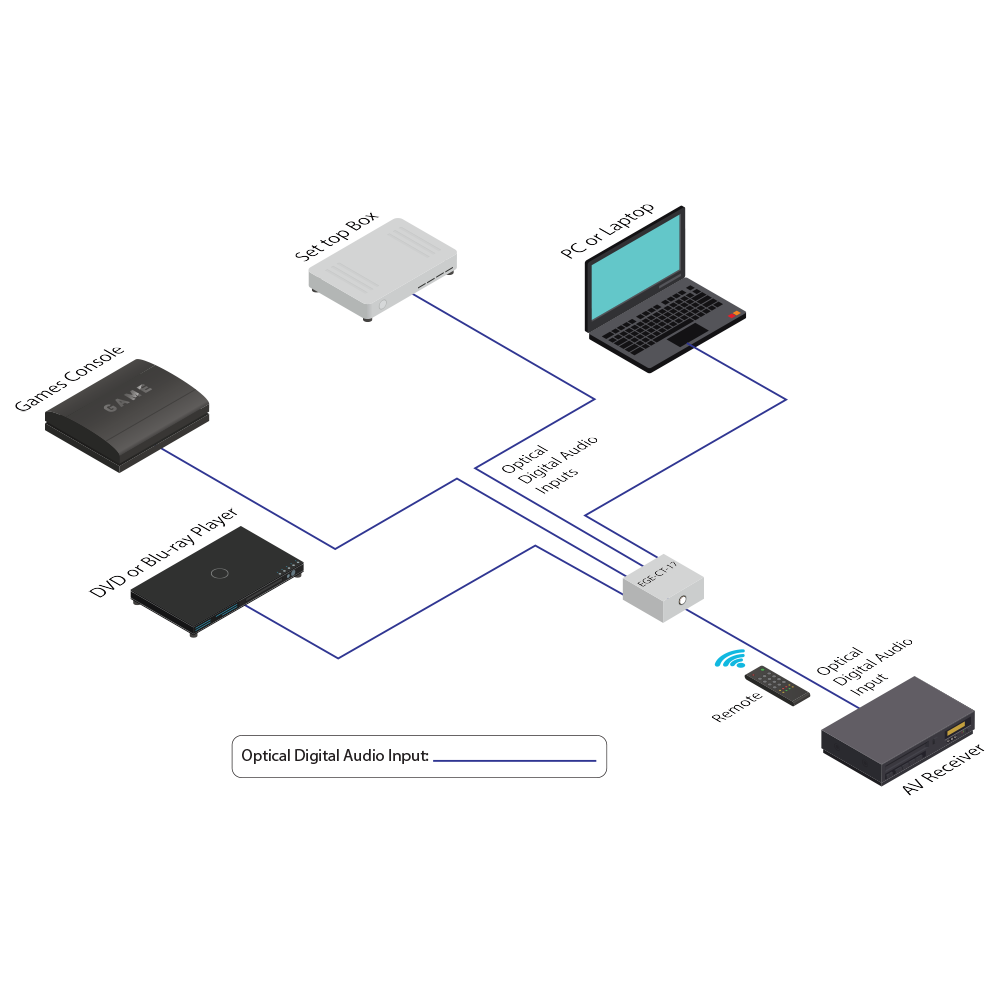

Diagrams
