EGE-CT-3HP
EGE-CT-3HP - Image 2
EGE-CT-3HP - Image 3

EGE-CT-3HP

Digital to Headphones Audio Converter

Digital to Headphones Audio Converter

Categories: , , Brand:

Description

The Digital to Headphone Audio converter is an easy to use device that converts and amplifies (200 mW Cap-Less) Coaxial or Optical digital audio into analogue headphone audio. This device can switch between Coaxial or Optical sources and also has a convenient volume control.

Spesifications

  • Supports up to 192 K/24-bit digital audio input (Coaxial/Optical) Supports 2 channel PCM from Coaxial/Optical input
  • Built-in 200 mW Cap-Less Headphone amp
  • Compact size and easy to install

Inputs

  • 1x RCA [1x Coax 2 Channel LPCM]
  • 1x TOSLINK [1x Optical 2 Channel LPCM]

Outputs

  • 1x 3.5mm Stereo Mini-jack [1x Stereo(L/R)]

PSU:

  • 3.3V/1.5A

Dimensions

  • 22mm [W] x 40mm [D] x 42mm [H]

Net Weight

  • 25g

Box Contents

• Digital to Headphone Audio Converter

• 3.3 V/1.5 A DC Power Adaptor

• Operation Manual

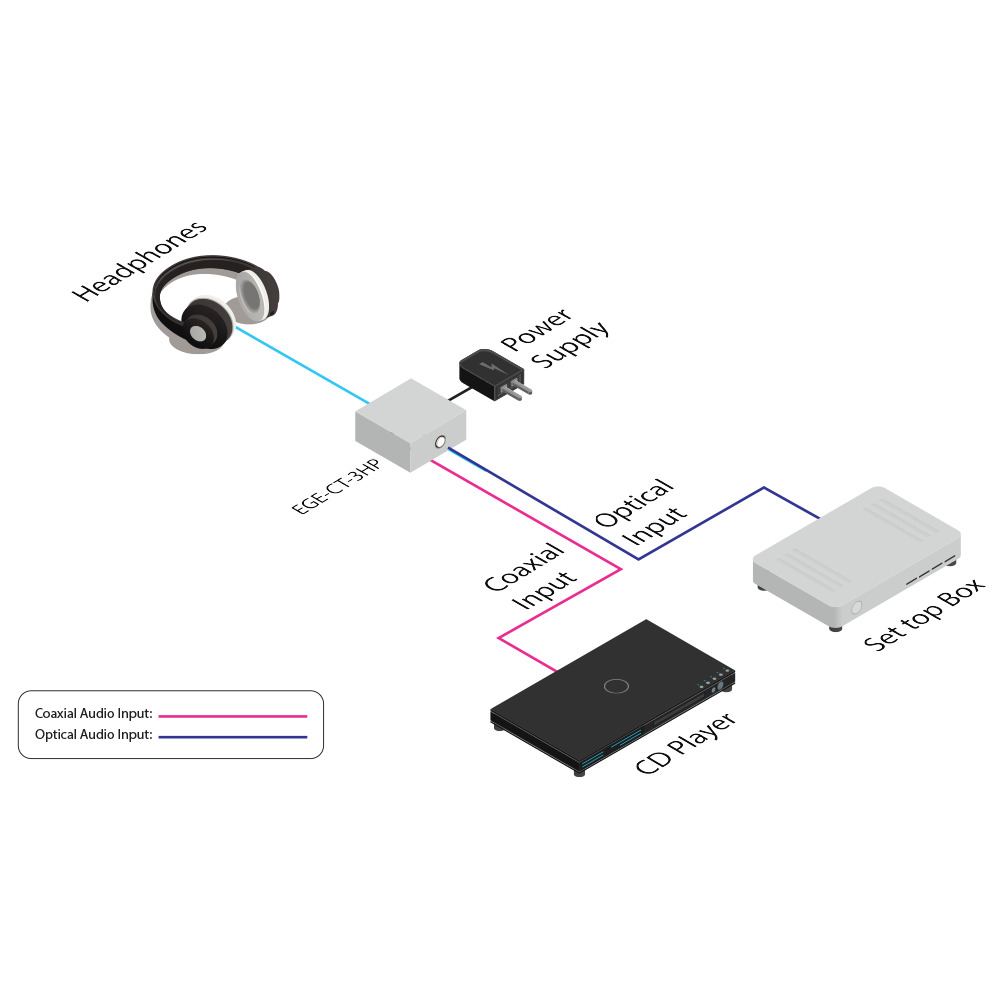

Diagrams

Dowloads

User Manual
Datasheet
