EGE-DCT-25

ARC to Analog Audio Converter

HDMI ARC to Stereo Audio Converter

Categories: , ,
Brand:

Description

The ARC to Analog Audio Converter is designed to extract the audio signal from an HDTV’s HDMI ARC (Audio Return Channel) connection and convert it to an analog stereo signal, allowing the connection of an HDTV with HDMI-only output to non-HDMI equipped
amplifiers, AV receivers or active speakers. It supports HDMI audio sampling rates up to 192 kHz and analog stereo (2 CH) audio output.

Spesifications

  • Supports Digital to Analog audio Conversion (DAC)
  • Extracts the HDMI audio signal from a HDTV’s ARC connection and converts it to a line level analog stereo output
  • Supports HDMI audio sampling rates up to 192 kHz
  • Simultaneous audio from the TV speakers and Line Level output
  • Supports volume control from the TV’s remote control via CEC function
  • Plug and play with no software required

Inputs

  • 1x HDMI [1x ARC Uncompressed AV and Data]

Outputs

  • 2x RCA [1x Stereo (L/R)]

PSU:

  • 5V/1A

Dimensions

  • 55mm [W] x 82mm [D] x 22mm [H]

Net Weight

  • 46g

Box Contents

• 1×ARC to Analog Audio Converter

• 1×5 V/1 A DC Power Adaptor

• Operation Manual

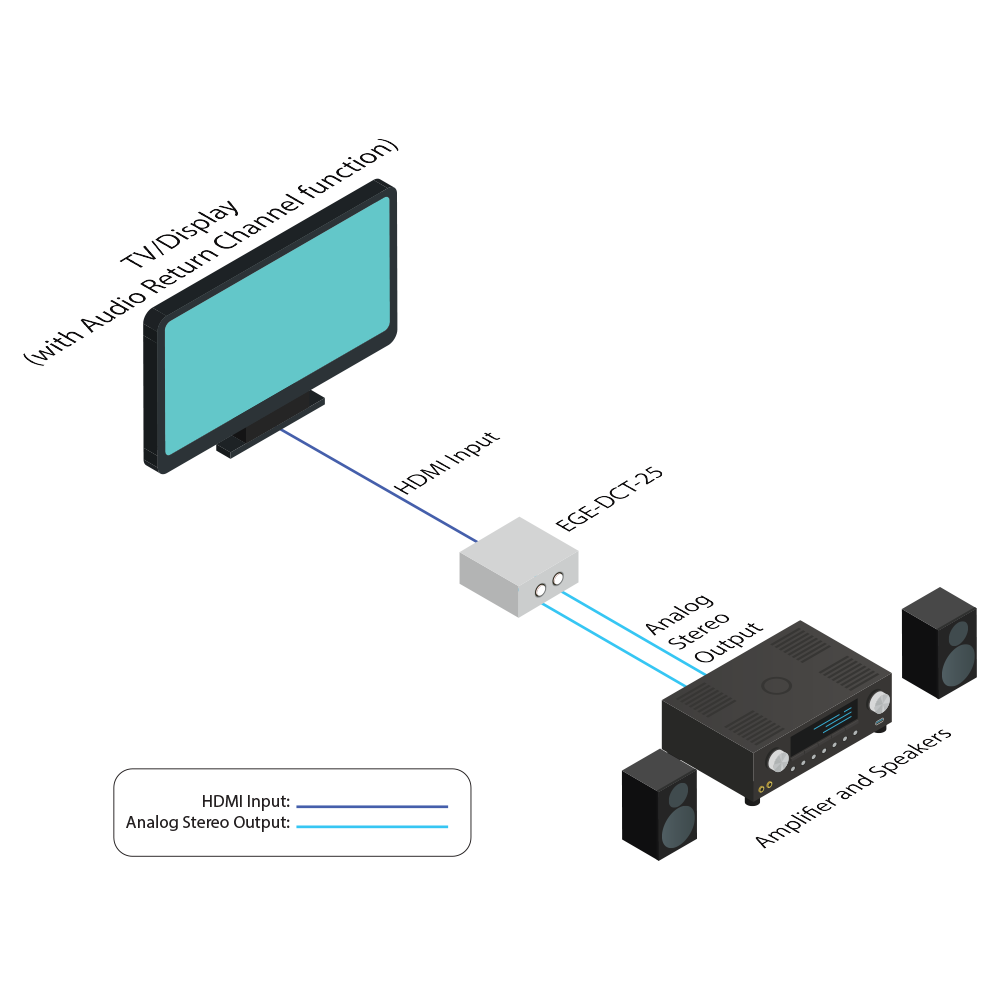

Diagrams
