EGE-DCT-39

Compact Digital Audio Processor with De-pop, Volume Adjustment and SRC Functions

Digital Audio Converter with Volume Control

Categories: , , Brand:

Description

The digital audio processor is designed to allow optical or coaxial LPCM audio source input and convert to different sampling rates up to 192kHz/24bits. The digital audio processor utilizes DSP engine instead of software process to prevent distortion. The converted audio source signal could be output to both optical and coaxial audio signals simultaneously. The outputs can be connected with amplifier for high quality audio output. Besides, the audio processor support DSD over PCM (DOP) decodes to PCM in order to further process the audio signal not only for sampling rate convert but also volume control. Meanwhile, the pop noise could be reduced when plug in audio source.

Spesifications

  • Supports coaxial and optical digital audio inputs
  • Supports simultaneous coaxial and optical digital audio outputs
  • Supports DSD stream audio passthrough
  • Supports LPCM input sampling rates up to 192kHz
  • Supports conversion of the sampling rate of the audio input up to a maximum sampling rate of 192kHz/24-bit
  • Supports De-pop function to eliminate unwanted ‘popping’ noises on plug in of audio source
  • Supports DSD over PCM (DOP) decoding to PCM of coaxial and optical audio source
  • Supports volume control, the minimum volume control can be reduced to -60dB
  • Supports firmware update via micro USB
  • Compact and light weight design

Inputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
  • 1x RCA [1x COAX 2 Channel LPCM / Dolby Digital / DTS]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM / Dolby Digital / DTS]
  • 1x RCA [1x COAX 2 Channel LPCM / Dolby Digital / DTS]

PSU:

  • 5V/2.6A

Dimensions

  • 51mm [W] x 22mm [D] x 98mm [H]

Net Weight

  • 61g

Box Contents

• 1×Digital Audio Processor Main Unit

• 1×5 V/2.6 A Power Adaptor

• 1×Operation Manual

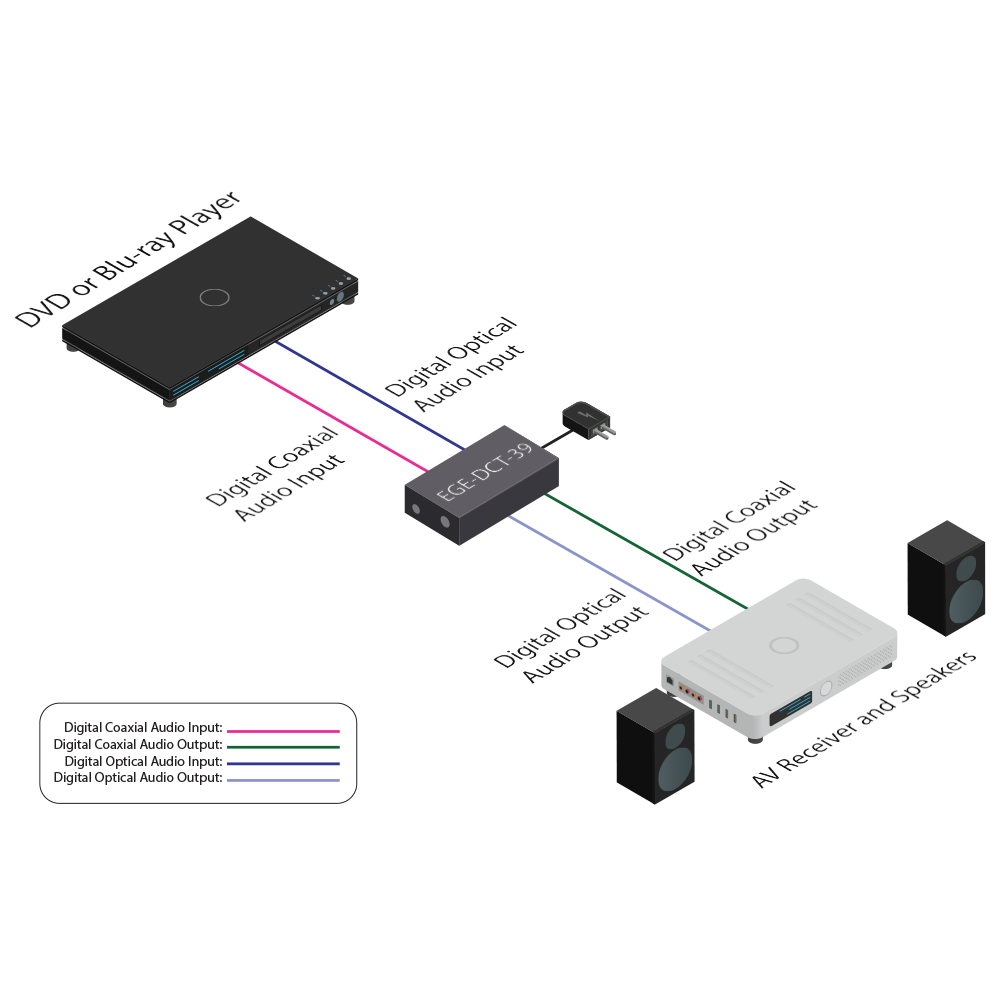

Diagrams
