EGE-DIGAUD2-DBYDTS

Universal Digital/Analog Audio Converter with Dolby & DTS Digital Digital Decoder, Bidirectional

Bi-directional Digital/Analog Audio Converter

Categories: , , Brand:

Description

The Universal Digital/Analog Audio Converter with Dolby® Digital & DTS® 2.0+Digital Out Decoder can convert among Optical, Coaxial and analog audio signals. With the ability to convert digital signals into analog and analog signals into digital, this device supports the simultaneous conversion of audio formats so when converting Optical into analog audio you can also convert it into Coaxial. Therefore, if you find yourself limited by multiple audio formats the Universal Digital/Analog Audio Converter with Dolby Digital & DTS 2.0+Digital Out Decoder is the perfect choice

Spesifications

  • Dolby Digital Decoder technology embedded
  • DTS 2.0+Digital Out Decoder technology embedded
  • Integrated digital interpolator filter and Digital-to-Analog Converter (DAC)
  • Integrated Analog–to-Digital Converter (ADC)
  • Supports input sampling rates from 32 to 96 kHz and output at 48kHz
  • Provides electromagnetic-noise-free transmission
  • Supports last power memory function
  • Easy to install and operate
  • Compact and elegant design

Inputs

  • 1x TOSLINK [1x 2 Channel LPCM / DTS / Dolby Digital]
  • 1x RCA [1x 2 Channel LPCM / DTS / Dolby Digital]
  • 2x RCA [1x Stereo (L/R)]

Outputs

  • 2x RCA [1x Stereo (L/R)]
  • 1x TOSLINK [1x PASS THROUGH 2 Channel LPCM / DTS / Dolby Digital]
  • 1x RCA [1x PASS THROUGH 2 Channel LPCM / DTS / Dolby Digital]

PSU:

  • 5V/1.2A

Dimensions

  • 97mm [W] x 85mm [D] x 35mm [H]

Net Weight

  • 108g

Box Contents

Universal Digital/Analog Audio Converter with Dolby Digital & DTS 2.0+Digital Out Decoder

• 5 V/1 A Power Adaptor

• Operation Manual

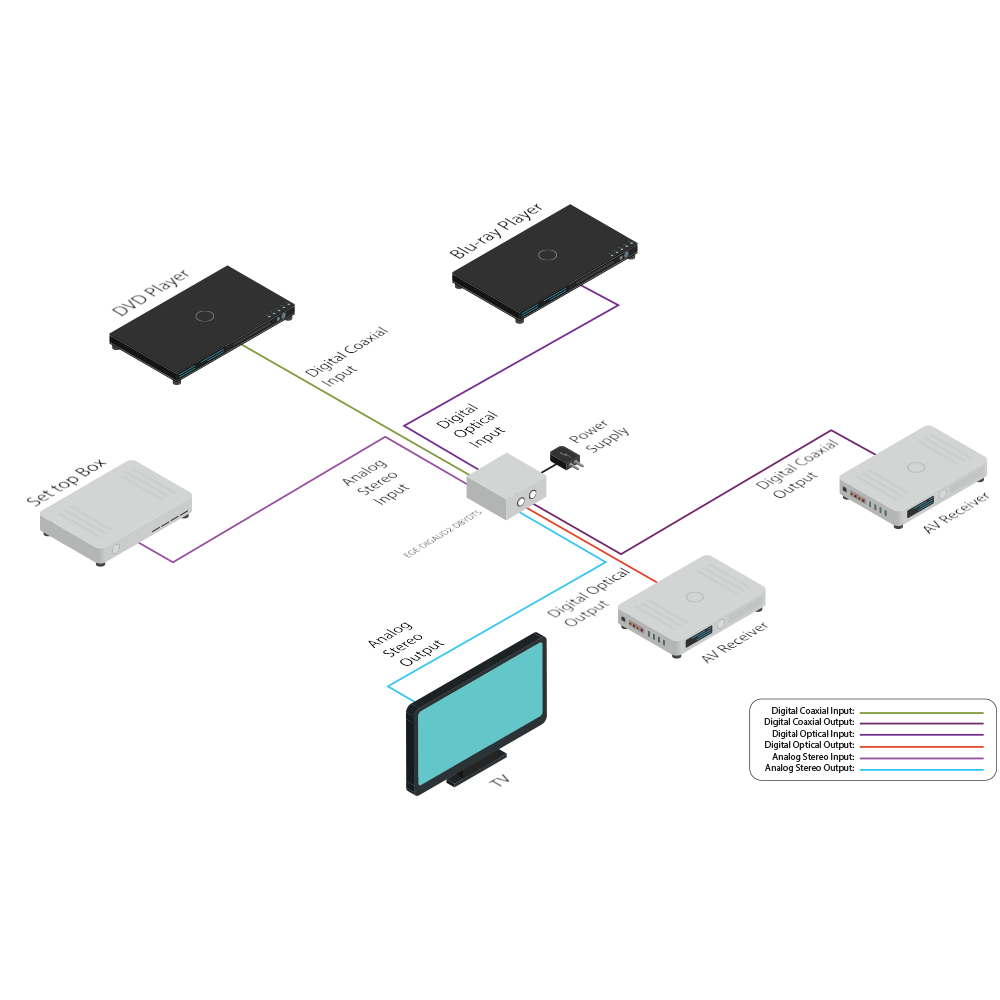

Diagrams

Dowloads

User Manual
Datasheet
