EGE-DIGS-AMP

Amplifier with LR/Optical/ CATInput Mix with MIC

Digital/Analog Audio Amplifier

Categories: , , Brand:

Description

The Amplifier with Optical/LR/CAT Input Mix with MIC is a fabulous gadget for audio mixture with vocal sound and output to analog speaker with mono or stereo sound. Allowing user with both digital and analog audio source selections along and a distance input up to 300m away. Controls like Telnet & WebGUI allow user with easy adjustment and remote over the audio setting and on-panel control with LED indication adds-on the friendly use for the device.

Spesifications

  • Supports digital-to-analog audio conversion (DAC)
  • Supports optical input sampling rates up to 192kHz
  • Supports optical, analog L/R, AUDIO-CAT and 48V/Line microphone inputs
  • Supports AUDIO CAT transmitter input up to 300m over CAT5e/6/7 cable
  • Supports up to 50W per channel speaker output
  • Sound output up to 20dB
  • Supports microphone sound up to 18dB
  • Supports stereo or mono output
  • Supports volume control from on-panel, Telnet or WebGUI
  • Use single button for input source switching
  • Supports RS-232 input control for Baud rate 115200bps
  • Supports sound mixing of the microphone into the analog sound output
  • Supports individual microphone input

Inputs

  • 1x TOSLINK [1x OPTICAL 2 Channel LPCM]
  • 3x 1-Pin Terminal Block [1x Stereo (L/R)]
  • 3x 1-Pin Terminal Block [1x Microphone]
  • 1x RJ45 [1x AUDIO-CAT Digital Audio Propriety Data / Propriety Data]
  • 1x RJ45 [1x IP Control]
  • 1x USB Type A [1x SERVICE Propriety Data]

Outputs

  • 6x 1-Pin Terminal Block [1x Speaker Out (L/R)]

PSU:

  • 24V/2.7A

Dimensions

  • 109mm [W] x 157mm [D] x 48mm [H]

Net Weight

  • 644g

Box Contents

• Amplifier with Optical/LR/CAT Input Mix with MIC

• 24V/2.7A DC Power Supply and Power Cable

• Operation Manual

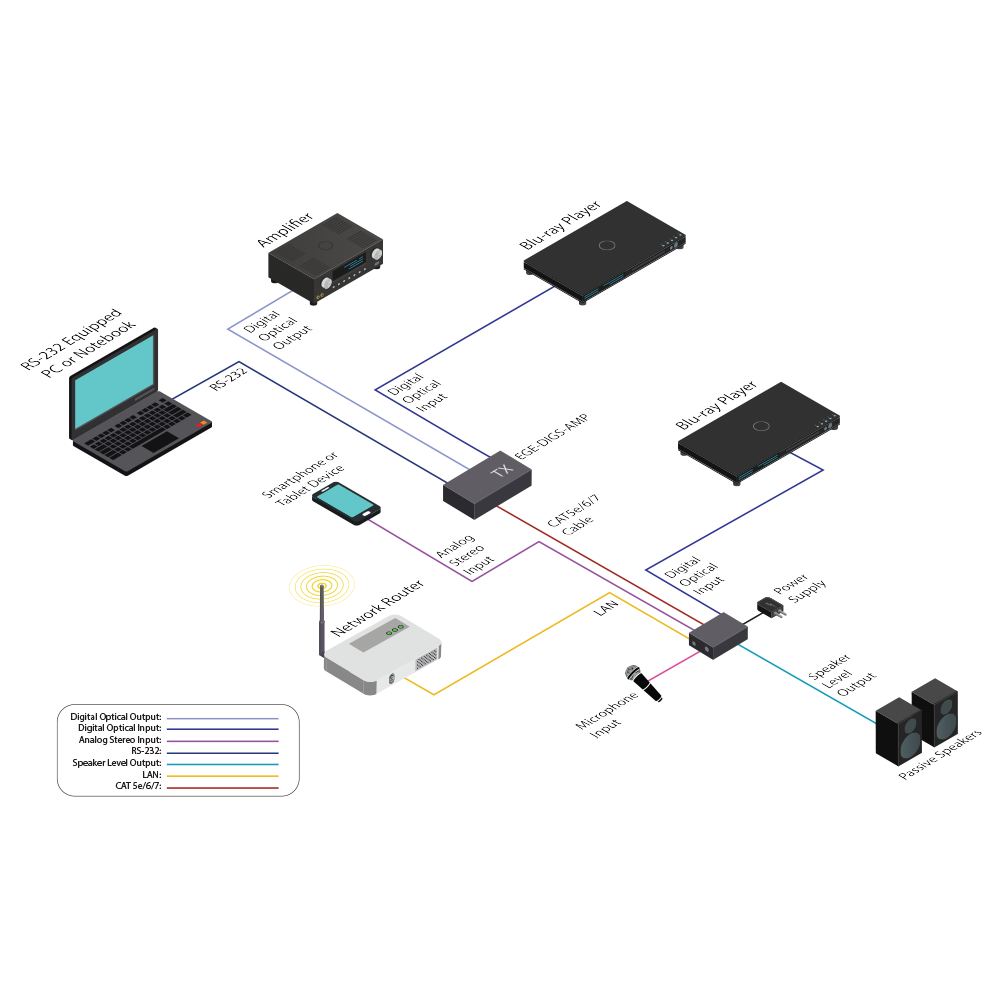

Diagrams
