EGE-DP-143

EGE-DP-143

1×3 DisplayPort Splitter

1×3 DisplayPort Splitter
HDCP 1.3, EDID 1.4 Support
Resolution 1920×1200

Categories: , ,
Brand:

Description

For those who want to display large content the 1×3 DisplayPort Extender Splitter is for you. Able to extend an image onto 2 or 3 displays, this device is perfect for multi-tasking, but can also split an image so the same image is repeated on up to three connected displays. This 1 by 3 DisplayPort Extender Splitter allows users to enjoy images or video in HD resolution up to 1920 x 1200 on multiple monitors from a single digital output port. The 1 by 3 DisplayPort Extender Splitter is a useful device for extending displays and splitting images

Spesifications

  • Compatible with DisplayPort 1.1a, VESA DDM Standard, HDCP 1.3 and EDID 1.4
  • Full HD compatible, provides full display performance with zero delay and no display application limitations
  • Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the source
  • It’s not necessary software updates
  • Quality Lab (WHQL: Certified for Windows) testing/qualification
  • Supports output resolution up to 1920×1200 (WUXGA)
  • Provides connection with any desktop and notebook which has a DisplayPort output port
  • Plug and Play

Inputs

  • 1x DisplayPort [1x Uncompressed AV]

Outputs

  • 3x DisplayPort [3x Uncompressed AV]

PSU:

  • 3.3V/1.5A

Dimensions

  • 100mm [W] x 70mm [D] x 20mm [H]

Net Weight

  • 90gr

Box Contents

• 1 by 3 DisplayPort Splitter

• 3.3V DC Power Supply

• Operation Manual

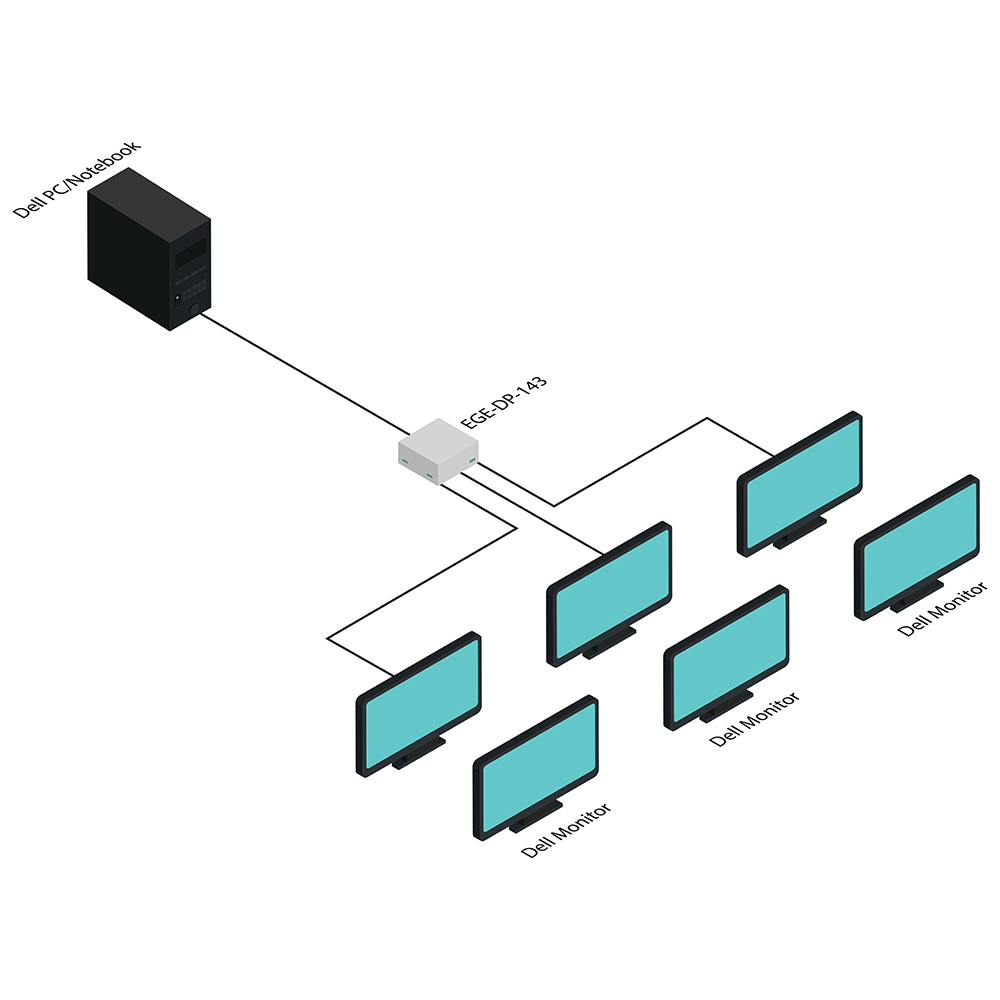

Diagrams

Dowloads

User Manual
Datasheet
