EGE-DP-144
EGE-DP-144 - Image 2
EGE-DP-144 - Image 3

EGE-DP-144

1×4 DisplayPort Splitter

1×4 DisplayPort Splitter
EDID Support
Resolution 2560×1600

Categories: , ,
Brand:

Description

The DisplayPort (DP) 1 by 4 splitter allows single DP source to be display on four DP input monitors simultaneously. It supports video resolution up to 2560 x 1600 and audio up to PCM 7.1 switch provides a fast switch between source and display and save EDID’s reading sink time to allow image display properly. The DP 1 by 4 splitter is an ideal device for your DP source to multi display

Spesifications

  • Compatible with DisplayPort 1.1a and EDID
  • Supports link rates of 2.7Gbps (HBR) and 1.62Gbps (RBR) from the source
  • Supports output resolution up to 2560×1600 and deep color video up to 12 bits
  • Supports digital audio up to LPCM 7.1CH (32-192kHz Fs sample rate)
  • Supports pixel component formate for RGB; YCbCr 422; YCbCr 444
  • Supports color space conversion between RGB and YCbCr color space
  • Flexible 1/2/4 lanes configurations; Full 10.8Gbps data rate support (4lanes at 2.7Gbps)

Inputs

  • 1x DisplayPort [1x Uncompressed AV]

Outputs

  • 4x DisplayPort [4x Uncompressed AV]

PSU:

  • 5V/3A

Dimensions

  • 270mm [W] x 124mm [D] x 29mm [H]

Net Weight

  • 770gr

Box Contents

• 1 by 4 DisplayPort Splitter

• Operation Manual

• 5V/3 Power Adaptor

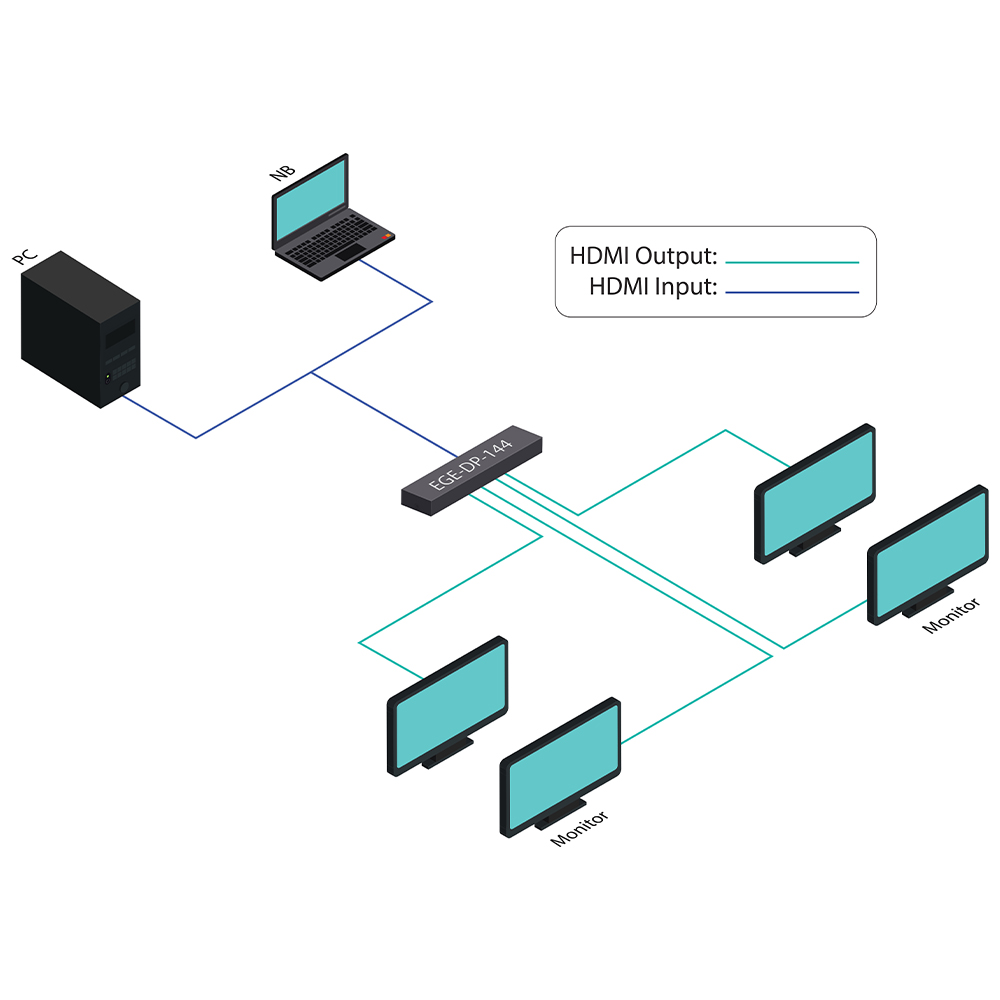

Diagrams

Dowloads

User Manual
Datasheet
