EGE-DSCA-DVI-CV

DVI to CV Scaler

DVI to CV Scaler
1080p@60 Hz (DVI-D)
WUXGA@60 Hz

Description

The DVI to Video Scan Converter is designed to convert the digital video signal from DVI-D sources to analog composite (CVBS) signal (NTSC or PAL). It is HDMI and DVI compliant and has many great features such like 3D noise reduction, frame rate conversion, adaptive contrast enhancement and many more. It also has a simple on-screen display (OSD) menu that allows the user to access the display status including input/output information.

Spesifications

  • DVI 1.0 compliant
  • Converts video signal from DVI-D source to NTSC/PAL composite (CVBS) signal
  • Accepts a wide range of input resolutions of 480p to 1080p@60 Hz (DVI-D) and VGA to WUXGA@60 Hz (PC)
  • 3D noise reduction in both the temporal and spatial domain
  • Frame rate conversion
  • Adaptive contrast enhancement
  • OSD Display
  • Overscan and underscan adjustment
  • Phase and Aspect adjustment
  • No software installation required

Inputs

  • 1x DVI-I [1x DVI-D]

Outputs

  • 1x RCA [1x Composite Video]

PSU:

  • 5V/1A

Dimensions

  • 26mm [W] x 65mm [D] x 114mm [H]

Net Weight

  • 120gr

Box Contents

• DVI-D to Video Scan Converter

• Power Adaptor

• Operation Manual

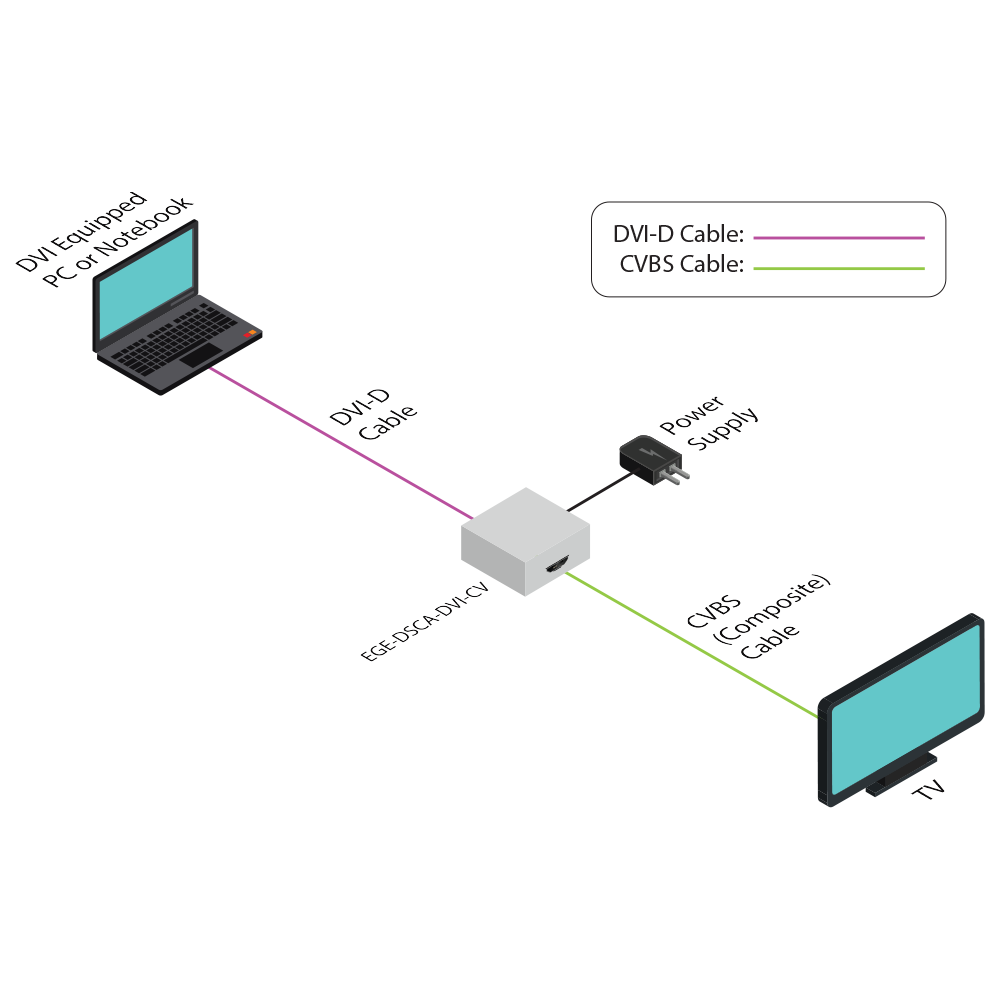

Diagrams
