EGE-DSCA-VG-CV

PC to SV/CV Scaler

VGA TO CV/SV SCALER
WUXGA@60(RB)
In: 1×VGA (D-sub 15-pin)
Out: 1×Composite Video, 1×S-Video

Categories: , ,
Brand:

Description

The PC to Video scan converter box is designed to convert a variety of analog computer images, from VGA to WUXGA, to interlaced NTSC or PAL video. With frame rate conversion and Overscan / Underscan features that allows users to view PC source on the Composite and S-Video monitor without image cutting off.

Spesifications

  • Automatically detects and converts the source PC signal to NTSC or PAL
  • Supports PC input resolutions from VGA to WUXGA
  • Scale down PC video to Composite Video/S-Video
  • Switch between NTSC/PAL as required
  • Overscan/Underscan switch for optimising the image
  • Supports analog to digital ADC conversion

Inputs

  • 1x 15-pin D-sub [1x PC RGBHV]

Outputs

  • 1x S-Video [1x S-video]
  • 1x RCA [1x Composite Video]

PSU:

  • 5V/2.6A

Dimensions

  • 64mm [W] x 113mm [D] x 26mm [H]

Net Weight

  • 90g

Box Contents

• PC to Video Converter box

• 5V DC power supply adaptor

• Operation Manual

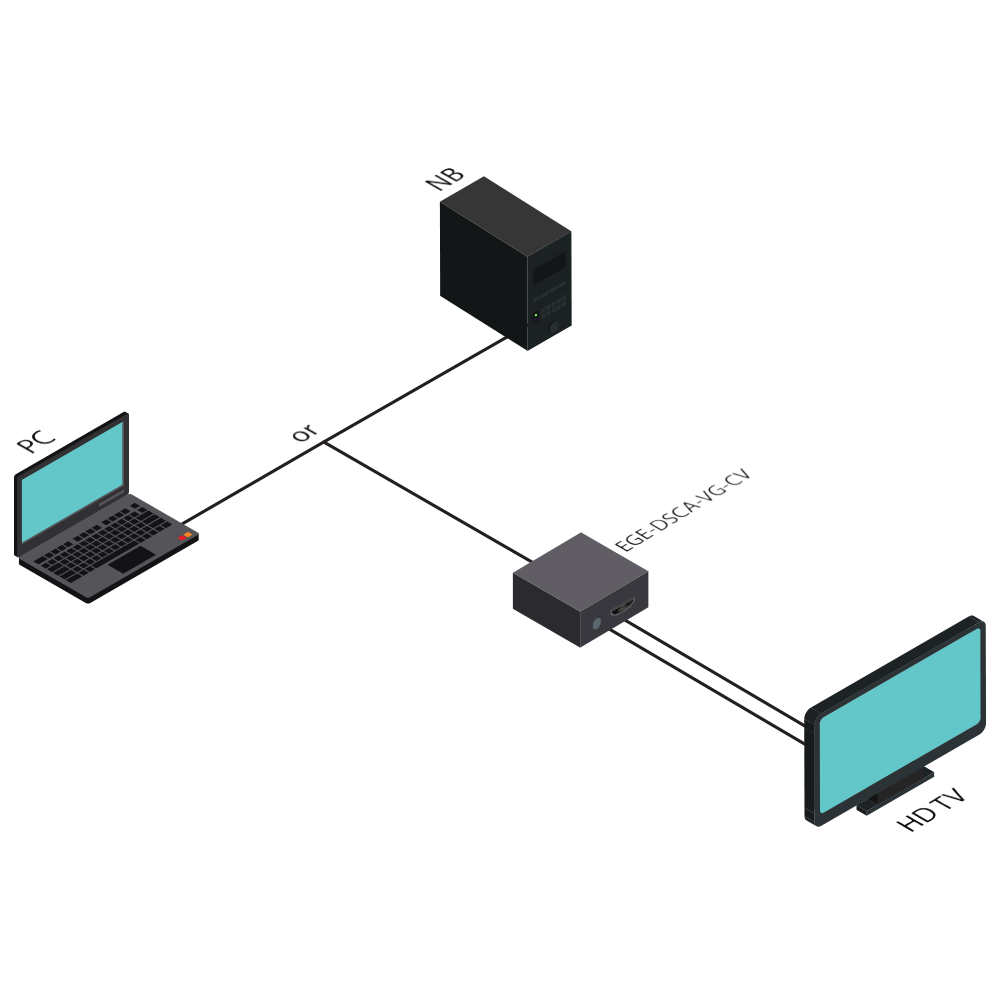

Diagrams

Dowloads

User Manual
Datasheet
