EGE-DVI-142

1×2 DVI Splitter

1×2 DVI Splitter
HDMI, EDID Compliant
Resolution 1080p

Description

The DVI Splitter series are high performance, HDCP compliant DVI distribution amplifiers. It allows one DVI signal source to be split to two, four or eight identical buffered outputs for connecting to up to eight DVI displays simultaneously. These models can be used to transfer HDMI signal by using HDMI to DVI adaptor or cable. Each of the buffered outputs can be run up to 15 meters and can be cascaded

Spesifications

  • Compatible with DVI 1.0
  • Supports HDMI signal (with adaptor cable)
  • Supports high resolution input:
    • PC: VGA, SVGA, XGA, SXGA ,UXGA and WUXGA
    • HDTV: 480p, 576p, 720p, 1080i and 1080p
  • The device will read and record the EDID of output 1 and then send it to the source device
  • Can be cascaded up to 3 layers

Inputs

  • 1x DVI-I [1x DVI-D]

Outputs

  • 2x DVI-I [2x DVI-D]

PSU:

  • 5V/2.6A

Dimensions

  • 102mm [W] x 125mm [D] x 30mm [H]

Net Weight

  • 280gr

Box Contents

• 1×1 by 2 / 1 by 4 / 1 by 8 DVI Splitter

• 1×5 V/2.6 A DC Power Adaptor

• Operation Manual

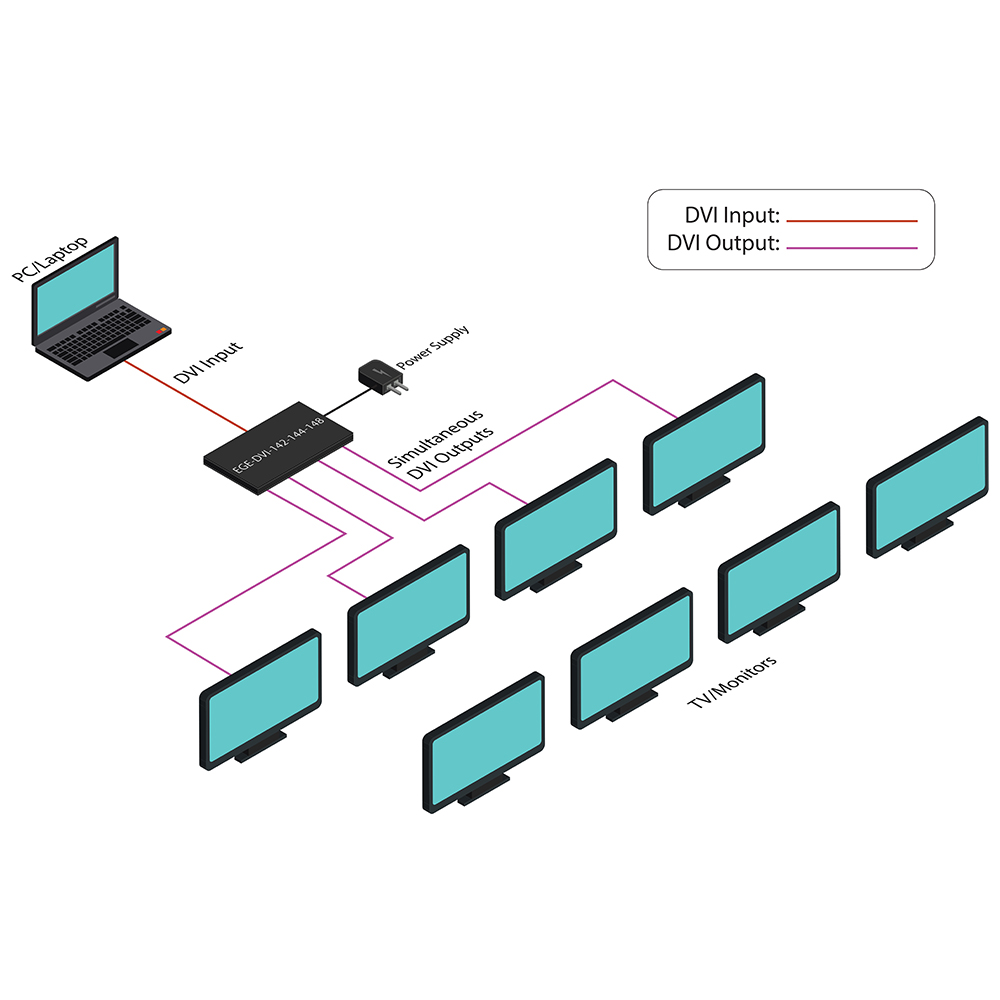

Diagrams
