EGE-DVI-144DL

1×4 Dual Link DVI Splitter

1×4 Dual Link DVI Splitter
EDID Compliant
Resolution WQXGA

Categories: , ,
Brand:

Description

The Dual-Link DVI splitter allows a single DVI-D signal to be split into two/four DVI outputs. Accept both Single-Link and Dual-Link DVI signal with supporting the highest resolution of WQXGA for Dual-Link and WUXGA@RB for Single-Link DVI this wonderful device allows users with a multi-screen viewing.

Spesifications

  • Supports resolutions up to WUXGA with Single-Link DVI or WQXGA with Dual-Link DVI
  • Support EDID function
  • Provides long cable support via built-in adaptive equalizer
  • Individual control of hot plug detect

Inputs

  • 1x DVI-I [1x Dual-link DVI DVI-D]

Outputs

  • 4x DVI-I [4x Dual-link DVI DVI-D]

PSU:

  • 5V/4A

Dimensions

  • 141mm [W] x 163mm [D] x 38mm [H]

Net Weight

  • 670gr

Box Contents

• Dual-Link DVI Splitter

• 5V/2.6A or 4A DC adaptor

• Operation manual

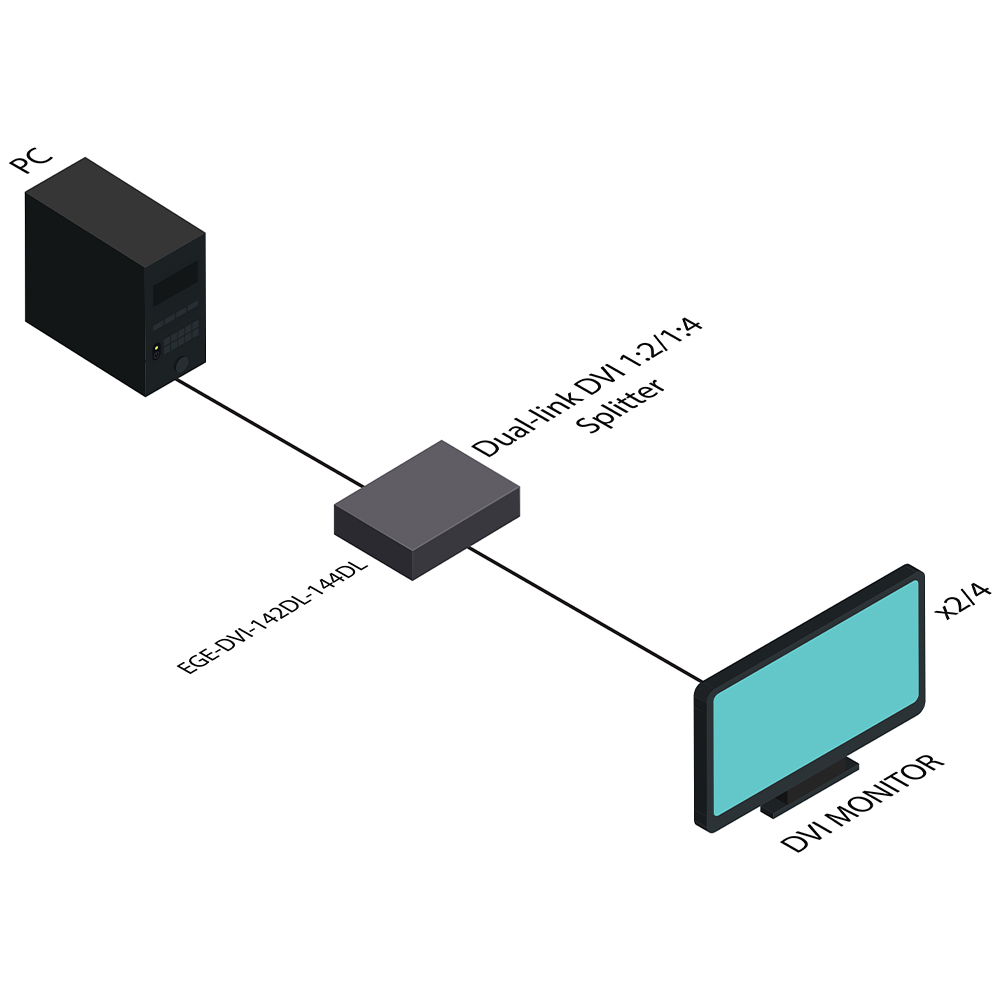

Diagrams

Dowloads

User Manual
Datasheet
