Description
EGE-DVI-FO1530 DVI Fiber Extender, 1 Core, MM 300m,SM 1500m Support,No HDCP, EDID Programming
EGE-DVI-FO1530
DVI Fiber Extender, 1 Core, MM 300m,SM 1500m Support,No HDCP, EDID Programming
DVI Fiber Extender
1 Core MM 300 meters / SM 1500 meters
1920×1200 @60Hz
EDID Programming
Spesifications
- Single multi-mode OM3 fiber optic for 300 meters transmission;
- Single single-mode OM3 fiber optic for 1500 meters transmission
- Transmitter with EDID learning;
- The highest video bandwidth: 1.65 Gbps;
- The highest resolution:1920×1200 @60Hz;
- The longest transmission distance: 300m;
- Small, concise, directly connect to DVI interfaces of source and display devices.
Box Contents
• 1x EGE-DVI-FO1530-TX
• 1x EGE-DVI-FO1530-RX
• 2x 5V 1A DC adapter
• 1x User manua

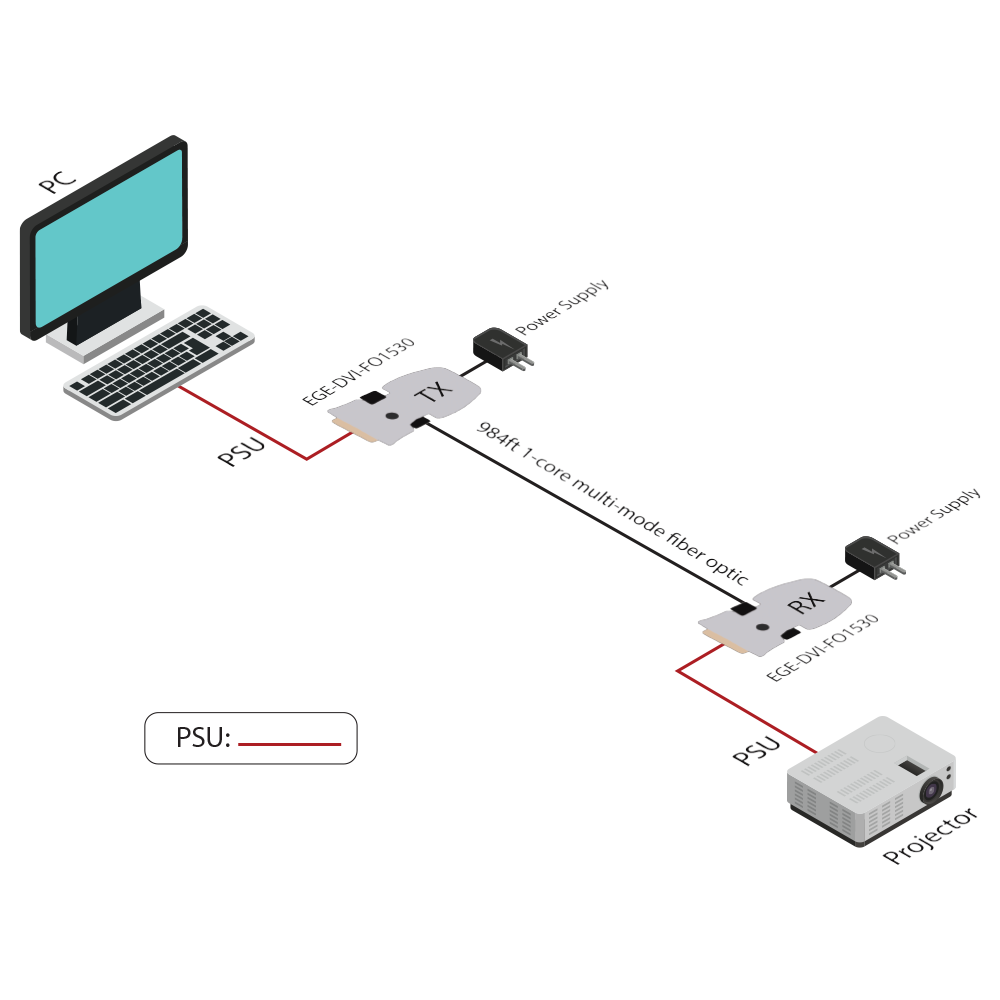

Diagrams
Dowloads
User Manual
Datasheet
