EGE-DVI-FO500

DVI Fiber Extender, 4 Core, MM, 500m Support, No HDCP, EDID Programming

DVI Fiber Extender
4 Core MM 500 meters
1920×1200 @60Hz
EDID Programming

Categories: , ,
Brand:

Description

The DVI Fiber Optic Extender (EGE-DVI-FO500) allows DVI equipment to be connected up to 500m with 1920x 1200@60Hz via four multy- mode fiber optic. The Extender comes with one Transmitter and one Receiver as well as EDID learning function

Spesifications

  • 4 core multimode LC fiber for transmission;
  • Transmitter with EDID learning;
  • The highest video bandwidth: 1.65 Gbps;
  • The highest resolution: 1920×1200 @60Hz;
  • The longest transmission distance: 500m(OM2);
  • The transmitter can read and store EDID from displayer;
  • Small, concise, directly connect to DVI interfaces of source and display devices.

Box Contents

• 1x EGE-DVI-FO500-TX

• 1x EGE-DVI-FO500-RX

• 2x 5V 1A DC adapter

• 1x User manual

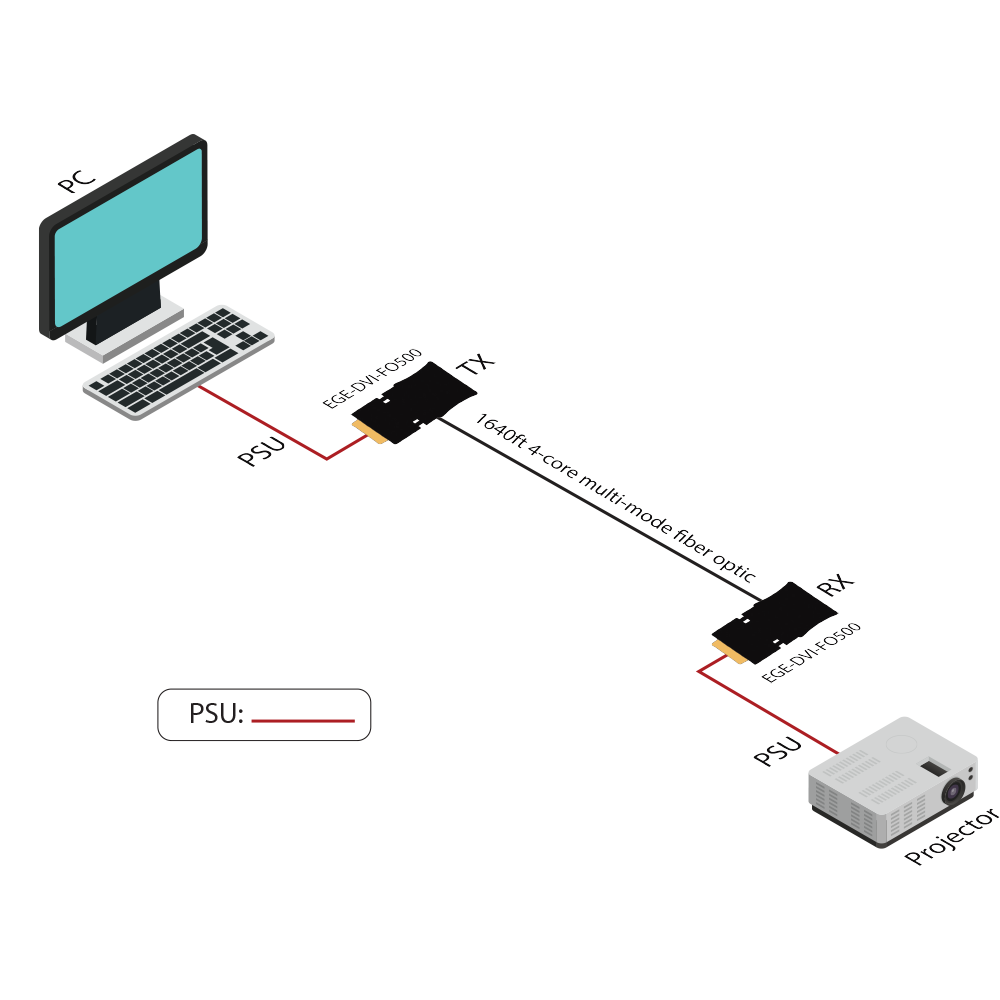

Diagrams

Dowloads

User Manual
Datasheet
