EGE-EXT-AUDA-TX/RX

Analog Stereo-Stereo Audio over CAT5e/6/7 Transmitter-Receiver with RS-232 Control

Bi-directional Stereo Audio Extender
Over CAT 5e/6/7
RS232 Pass-through

Categories: , ,
Brand:

Description

The Analog Stereo Audio and RS-232 over CAT5e/6/7 extender is design to extend analog stereo audio over a single run of CAT5e/6/7 cable up to 300m. With Bi-directional RS-232 control and PoC features added these units can be used with Receiver or Transmitter unit that supports RS-232 device control and one-way power supply.

Spesifications

  • Supports bi-directional transmission (in/out) of stereo audio and RS-232 pass-through
  • Supports Power over Ethernet (PoE) to the receiver unit
  • Supports bi-directional RS-232 control

TRANSMİTTER:

Inputs

  • 2x RCA [1x Stereo (L/R)]
  • 1x 9-pin D-sub [1x RS-232 Data]

Outputs

  • 2x RCA [1x Stereo (L/R)]
  • 1x RJ45 [1x Propriety Data]

PSU:

  • 12V/1.25A

Dimensions

  • 102mm [W] x 116mm [D] x 25mm [H]

Net Weight

  • 242gr

RECEİVER:

Inputs

  • 2x RCA [1x Stereo (L/R)]
  • 1x RJ45 [1x Propriety Data]

Outputs

  • 2x RCA [1x Stereo (L/R)]
  • 1x 9-pin D-sub [1x RS-232 Data]

PSU:

  • 12V/1.25A

Dimensions

  • 102mm [W] x 116mm [D] x 25mm [H]

Net Weight

  • 242gr

Box Contents

• 1 x Analog stereo audio Transmitter

• 1 x Analog stereo audio Receiver

• 1 x 12V power Adaptor

• Operation Manual

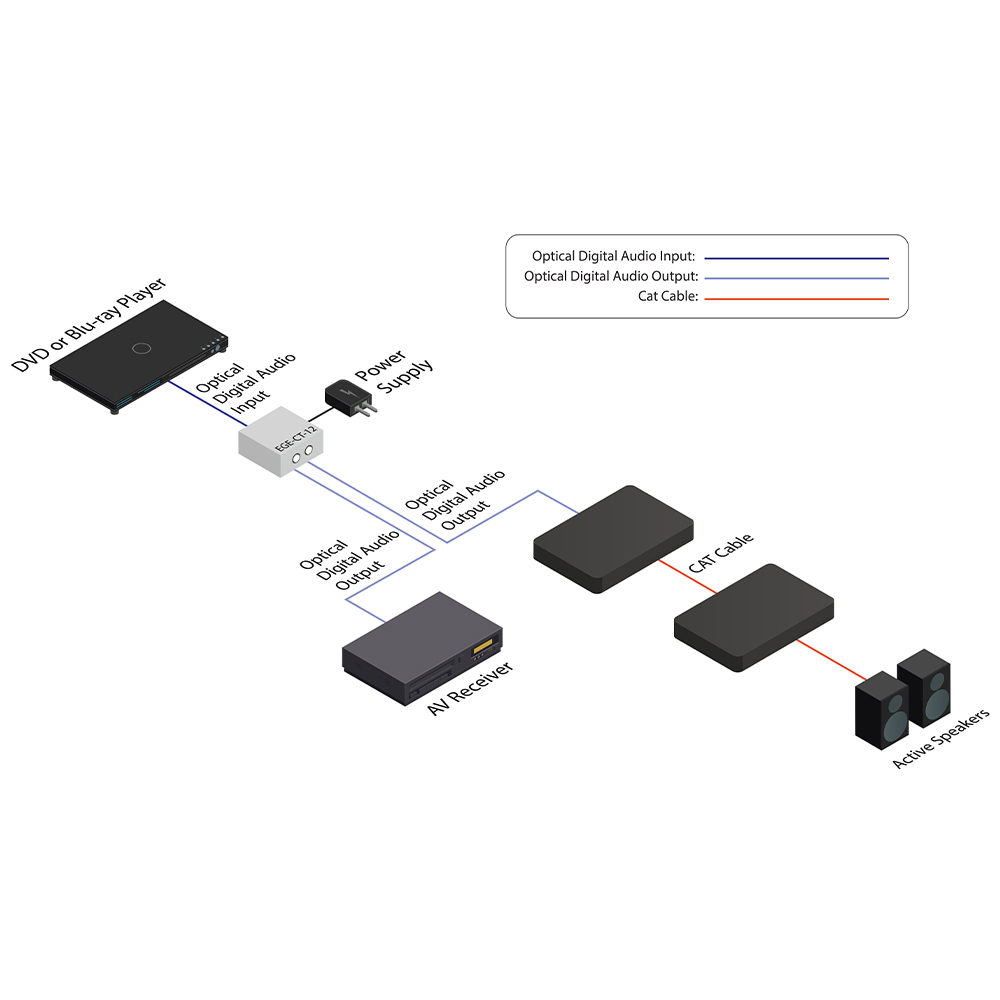

Diagrams
