EGE-EXT-AUDD-TX_RX

Digital Audio over Single CAT5e/6/7 Transmitter

Coax./Optic. Audio
Over CAT 5e/6/7
Extends 150m

Categories: , ,
Brand:

Description

The Digital Audio Extender is useful for sending the digital audio signal up to 150m away at high quality. The units can switch between Coaxial and Optical digital signals and can be powered by either USB or power adaptor allowing users flexibility of choice between power sources. With its elegant and compact design, user friendly operation and easy installation, the Digital Audio Extender is ideal tool for extending digital audio from one location to another

Spesifications

  • Supports single Coaxial input to Coaxial signal output
  • Supports single Optical input to Optical signal output
  • Supports Optical or Coaxial digital audio S/PDIF signal (sampling rate 96 kHz)
  • Supports digital audio formats: LPCM 2 CH, Dolby Digital or DTS 5.1 CH
  • Supports industry standard category 5/5e/6 cable

TRANSMİTTER:

Inputs

  • 1x TOSLINK [1x 2 Channel LPCM / Dolby Digital / DTS]
  • 1x RCA [1x 2 Channel LPCM / Dolby Digital / DTS]
  • 1x USB Mini-B [1x USB Power]

Outputs

  • 1x RJ45 [1x Digital Audio Propriety Data]

PSU:

  • 5V/1A,USB powered

Dimensions

  • 70mm [W] x 70mm [D] x 22mm [H]

Net Weight

  • 50gr

RECEİVER:

Inputs

  • 1x RJ45 [1x Digital Audio Propriety Data]
  • 1x USB Mini-B [1x USB Power]

Outputs

  • 1x TOSLINK [1x 2 Channel LPCM / Dolby Digital / DTS]
  • 1x RCA [1x 2 Channel LPCM / Dolby Digital / DTS]

PSU:

  • 5V/1A,USB powered

Dimensions

  • 70mm [W] x 50mm [D] x 22mm [H]

Net Weight

  • 50gr

Box Contents

• Digital Audio over Single CAT5e/6/7 Transmitter

• Digital Audio over Single CAT5e/6/7 Receiver

• 5 V/1 A DC Power Adaptor

• Operation Manual

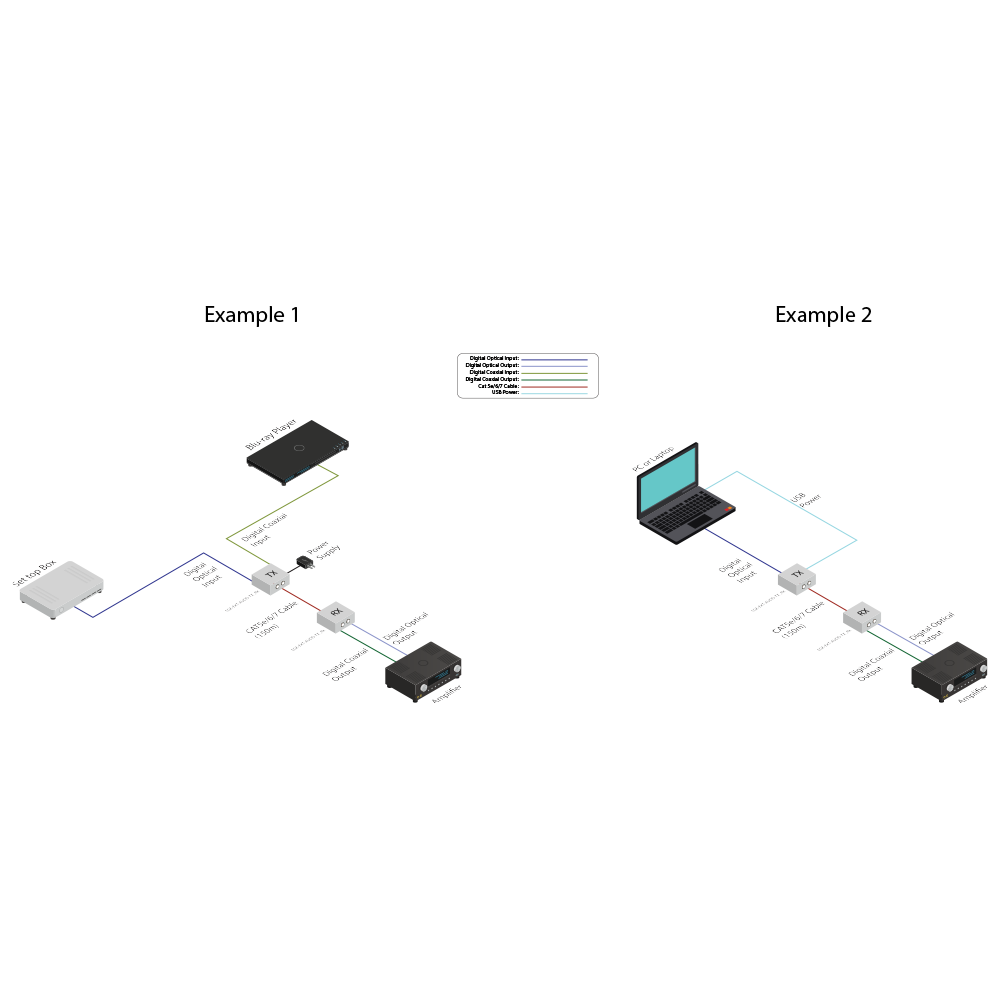

Diagrams
