EGE-EXT-RS232-TX/RX

RS232 Extender

RS232 Extender
Over CAT 5
Extends 250m

Description

The RS-232 over CAT5e Extender is an affordable, hardware-based solution for extending the operating distance between RS-232 protocol controlled devices, such as a projector or HDMI matrix. With most RS-232 devices you are limited by the length of the RS-232 cable, however, the CAT5 RS-232 extender can extend that distance up to 250 meters over a single CAT5e cable allowing a tremendous amount of flexibility in how and where you install your devices. The RS-232 extender also provides full duplex transmission and hardware handshaking signals, without the need for any complicated set-up procedures.

Spesifications

  • Extends any device compatible with RS232 from the source to the display up to 250 meters
  • Only One CAT 5 cable
  • Perfect for digital signage
  • Simple and easy installation
  • Baud Rate: 110-921600
  • Data bit: 8-bit

TRANSMITTER

Inputs

  • 1x 9-pin D-sub [1x RS-232 Data]

Outputs

  • 1x RJ45 [1x RS-232 Propriety Data]

PSU:

  • 5V/1A

Dimensions

  • 50mm [W] x 67mm [D] x 23mm [H]

Net Weight

  • 80gr

RECEIVER

Inputs

  • 1x RJ45 [1x RS-232 Propriety Data]

Outputs

  • 1x 9-pin D-sub [1x RS-232 Data]

PSU:

  • 5V/1A

Dimensions

  • 50mm [W] x 67mm [D] x 23mm [H]

Net Weight

  • 80gr

Box Contents

• RS-232 over CAT5e Transmitter

• RS-232 over CAT5e Receiver

• 5 V/1 A DC Power Adaptor

• Operation Manual

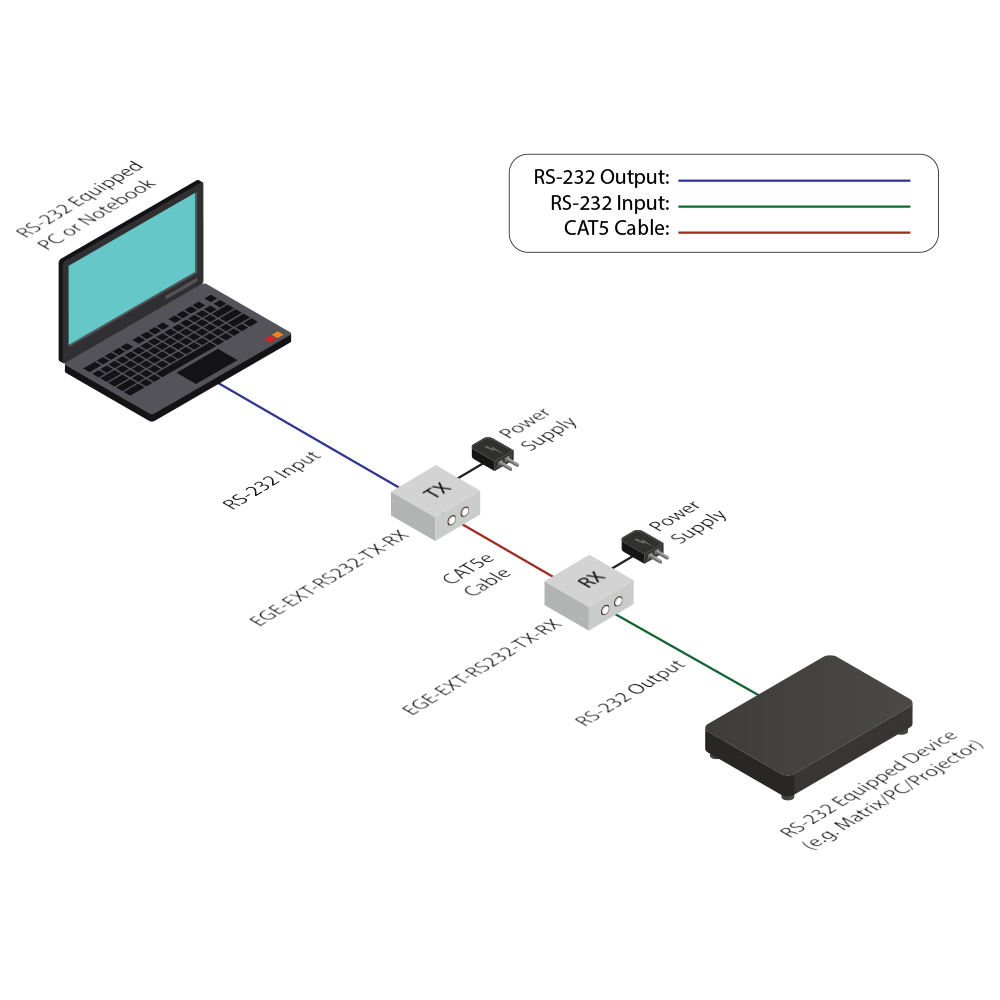

Diagrams
