EGE-EXT-USB20-100

USB 2.0 Extender (100M)

USB 2.0 Extender
100 meters
Plug and play

Categories: , ,
Brand:

Description

The USB 2.0 Extender can extend USB signal up to 100m / 328ft via a single Cat5e/6 cable. In the transmitter, the USB-B port is connected to a PC. In the receiver, you can connect a device with USB port (such as U disk or printer, etc.) through the two USB ports. Both Transmitter and Receiver support PoC (Power over Cable) function. The product can be widely used for long distance signal transmission between a PC and USB device. Simple plug and play, no drive and installation setting required.

Spesifications

  • Support USB 2.0 protocol, transmission rate is up to 200Mbps
  • Transmission distance is up to 100m / 328ft via a single CAT5e/6 cable
  • Support one USB-B port input in the transmitter
  • Support two USB 2.0 ports output in the receiver
  • Support PoC function, it means that either transmitter or receiver is powered through 12V/1A power adapter, the other doesn’t need power supply
  • Simple plug and play, no drive and installation setting required
  • Compact design for easy and flexible installation

Box Contents

• 1× USB 2.0 Extender (Transmitter)

• 1× USB 2.0 Extender (Receiver)

• 1× USB cable (USB-B male head to USB-A male head, 1 meter )

• 1× 12V/1A Locking Power Adapter

• 1× User Manual

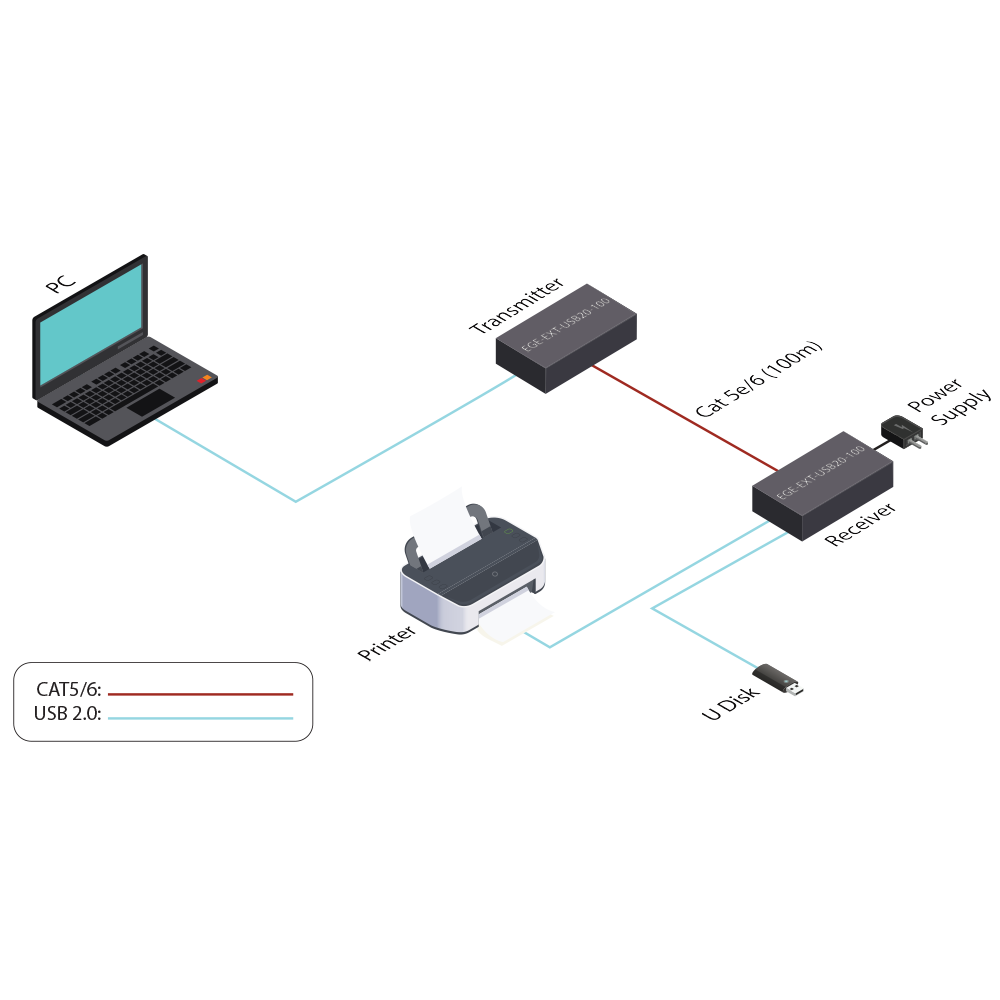

Diagrams
