EGE-EXT-USB20-50

USB 2.0 Extender (50M)

USB 2.0 Extender
50 meters
Plug and play

Categories: , ,
Brand:

Description

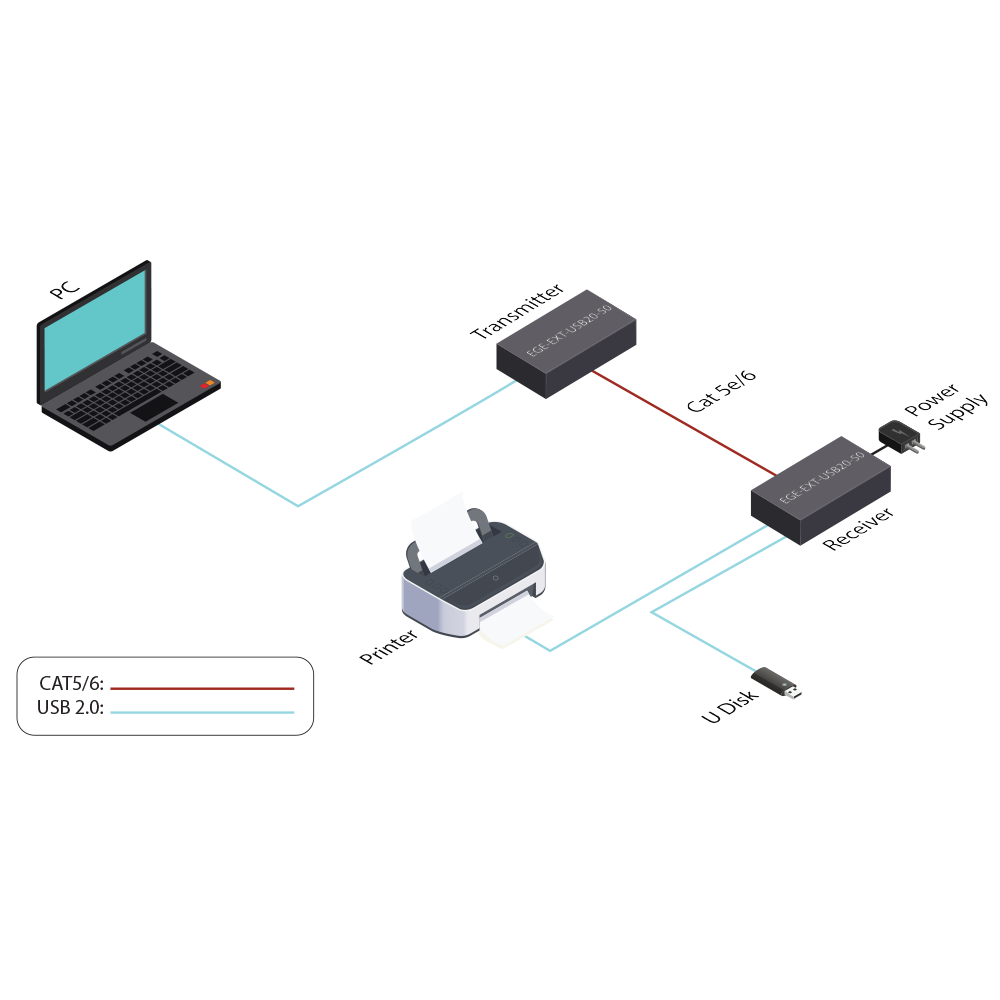

The USB 2.0 Extender can extend USB signal up to 50 meters / 164ft via Cat 5e/6 cable (The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub ). In transmitter, the USB-B port is connected a PC. In receiver, you can connect a device with USB port at the two USB ports such as U disk or printer, etc. In addition, you need to connect 5V/1A power supply to receiver. The product can be widely used long distance signal transmission between a PC and USB device. Simple plug and play, no drive and setting installation required.

Spesifications

  • Supports USB 2.0 protocol, transmission rate up to 480Mbps
  • Supports extend distance up to 50 meters /164ft via CAT 5e/6 cable (Note: The transmission distance can only up to 40 meters / 131.2ft for some USB 2.0 Hub)
  • Supports one USB-B port input in transmitter
  • Supports two USB 2.0 ports output in receiver
  • Receiver is powered supply by connecting 5V/1A power adapter
  • Simple plug and play, no drive and setting installation required
  • Compact design for easy and flexible installation

Box Contents

•1× USB 2.0 Extender (Transmitter)

• 1× USB 2.0 Extender (Receiver)

• 1× USB cable (USB-B male head to USB-A male head, one meter )

• 1× 5V/1A Power Adapter

• 1× User Manual

Diagrams

Dowloads

User Manual
Datasheet
