HDMI 4x4 Seamless Matrix Switcher

4×4 HDMI Matrix
Matrix/ Dual/ Quad /TV Wall modes
Resolution 1080p

Categories: , , ,
Brand:

Description

The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 dif- ferent input sources to be freely selected and arranged on 4 displays (TV or monitor), providing four output modes (Matrix, Dual PoP/ PiP, Quad and TV Wall) for various applications. Matrix mode routes the source signals to output displays as regular matrix does, Dual mode allows 2 sets of 2 selected sources to show on designate output dis- plays with PoP and PiP method and TV Wall mode extends a selected source to display on all 4 output displays as one. The device supports video timings up to WUXGA@60RB and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. For all the opera-tion/control can be done through IR, remote control, Telnet, WebGUI, RS-232 or front panel buttons. GERATECH EGE-HSQM 4IN 4 OUT KONTROL CIHAZI 1.897,50 $

Spesifications

  • -Compatible with HDMI, HDCP 1.1
  • -Deep color support 8/10/12 bit source
  • -Seamless switching
  • -Supports four different modes: Matrix mode/ Dual mode/ Quad / 2×2 TV Wall mode
    • Matrix mode: Can routes and output any 4 sources to any 4 displays with seamless switching (Note: Under output timing 1080i@50/60 input 4 will be disabled, OSD will show “IN 4 Disabled”)
    • Dual mode: Can display POP (Picture Of Picture) & PiP (Picture In Picture) image com-bined by 2 sources to be presented on the HDMI output ports (Dual A and Dual B)
    • Quad mode: Can output all sources to a display (4 in 1) as a full image
    • TV Wall mode: Can output any source to 4 displays (2×2 Video wall) as a full image with adjustable frame correction for 4 displays
  • -Supports OSD, RS232, Telnet, WebGUI, Remote control and on-panel controls
  • -Input resolutions support VGA-WUXGA and 480i-1080p
  • -Output resolutions support 480p-1080p
  • -Different input resolution and output resolution are selectable from OSD menu(factory default value for the output resolution is 720p@60Hz/ 2CH LPCM)
  • -Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD Master Audio

Inputs

  • 4x HDMI [4x Uncompressed AV and Data]
  • 1x RJ45 [1x IP Control]
  • 1x 9-pin D-sub [1x RS-232 Data]
  • 1x USB Mini-B [1x SERVICE Propriety Data]

Outputs

  • 4x HDMI [4x Uncompressed AV and Data]

PSU:

  • 12V/3A

Dimensions

  • 436mm [W] x 247mm [D] x 44mm [H]

Net Weight

  • 2200gr

Box Contents

1 x 4 by 4 Seamless Matrix Switcher

• 1 x Remote Control (CR-125)

• Software CD Driver (Optional)

• 1 x 12V/3A DC Power Adaptor

• Operation Manual

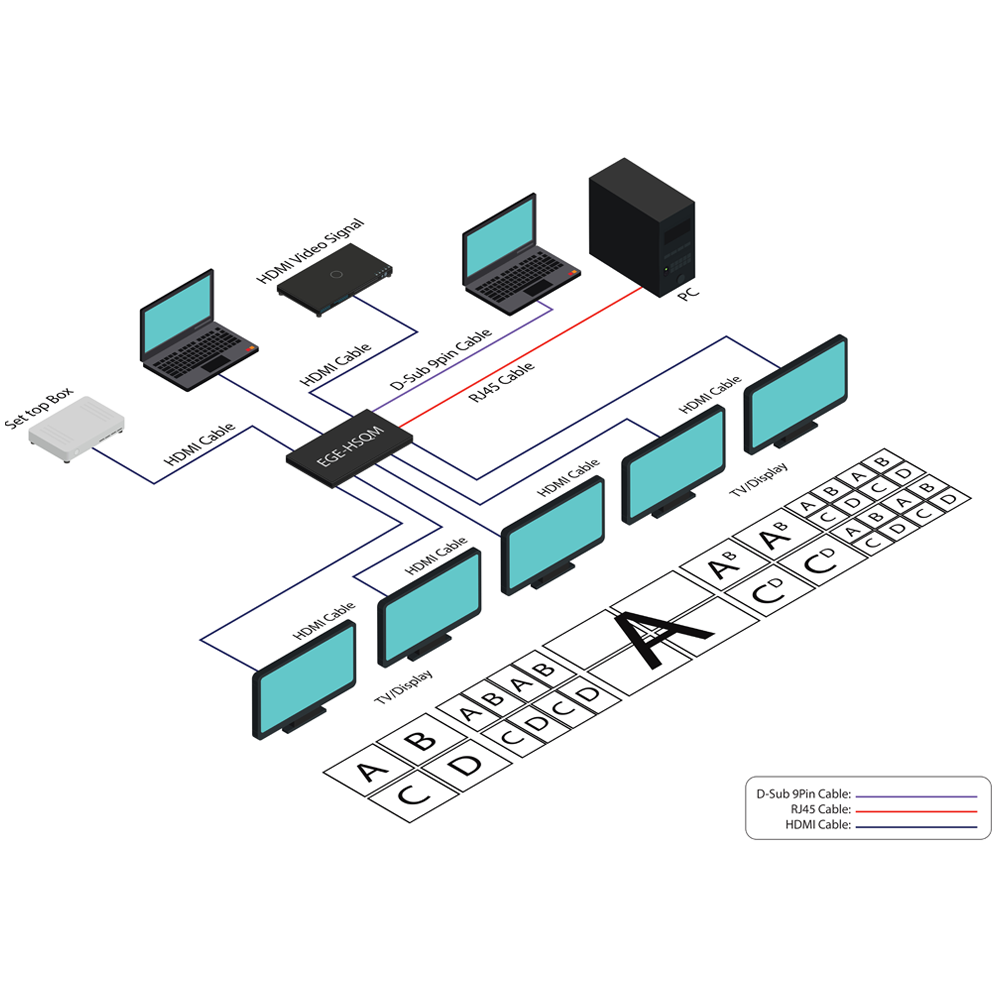

Diagrams
