EGE-MIAN40-AMP
EGE-MIAN40-AMP - Image 2
EGE-MIAN40-AMP - Image 3

EGE-MIAN40-AMP

40 Watt Power Amplifier

40 Watt Power Amplifier
Switchable 70V -100V
Volume/Bass/Treble Control

Categories: , ,
Brand:

Description

The product is a 40 Watt power amplifier (Class-D) with output alternatively at 70V or 100V. It has 2 stereo inputs (1×3.5mm jack for line in, 2xRCA for L&R), 1 digital input & 1 balanced MIC. It is integrated with powerful functions, including ducking function, EQ control, MIC mixer etc., and MIC input supports 3 levels with condenser MIC, dynamic MIC & line audio input. As for power amplifier we have normally voltages at 70V and 100V for different countries, but the amplifier is designed to integrate with both voltages to meet different requirements.

Spesifications

• Mono audio output at 40Watt.

• Switchable between 70V and 100V.

• Ducking function.

• 16 ID codes for controlling between different amplifiers.

• 3-level MIC input, supports condenser microphone, dynamic microphone and wireless microphone.

• MIC port can support balance/unbalance signal, suppress the external noise effectively.

• Two stereo audio inputs and one digital audio input, switchable by button, IR remote & RS232.

• Volume/Bass/Treble controllable by buttons, IR remote & RS232.

• Fast switching speed for good performance.

• Convection cooler, fan is not needed.

• LED indicator, for power and working status.

• Antistatic case design to provide good protection for long-term and stable performance.

Box Contents

• 1x 40 Watt Power Amplifier

• 2x Mounting ears with 4 Screws

• 4x Plastic Cushions

• 2x Pluggable Terminal Blocks

• 1x RS232 Cable

• 1x Power Adapter (DC 24V 2.71A)

• 1x User manual

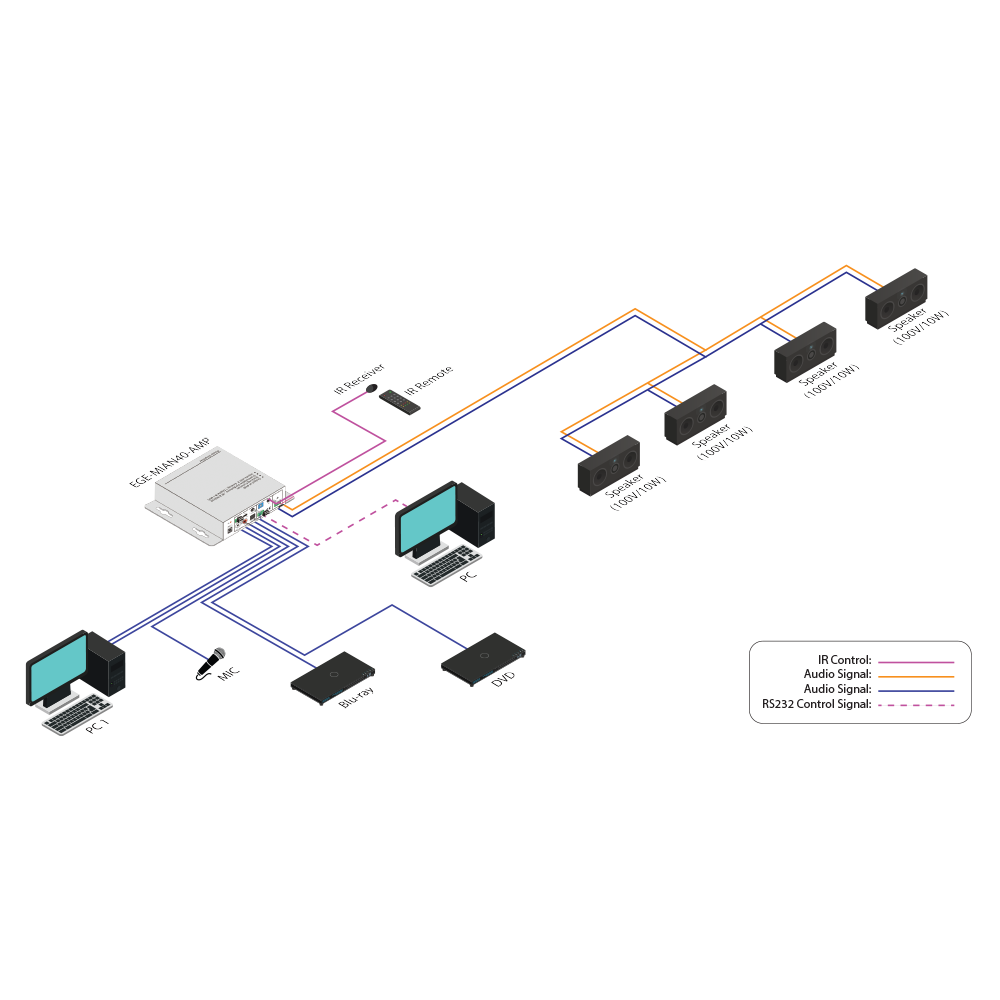

Diagrams

Dowloads

User Manual
Datasheet
